Electronic Power Paint Matching Spectrophotometer NS810 8mm Aperture For Plastics
Product Details
| Illumination/observation System: | D/8 | Inter Instrument Agreement: | Within DeltaE*ab 0.2 |
|---|---|---|---|
| Integrating Sphere Size: | Φ58mm | Measuring Aperture: | 8mm |
| Interface: | USB/RS-232 | Data Storage: | 1000 Standards, 15000 Samples |
| Highlight |
paint matching spectrophotometer,data colour spectrophotometer |
||
Product Description

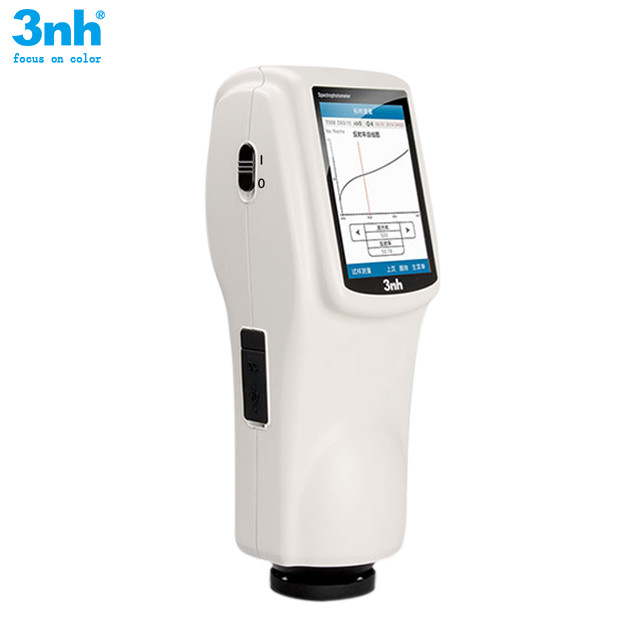

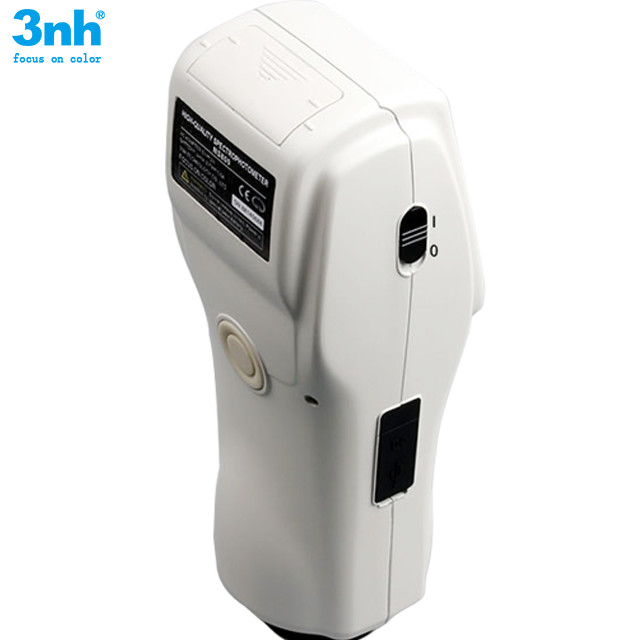

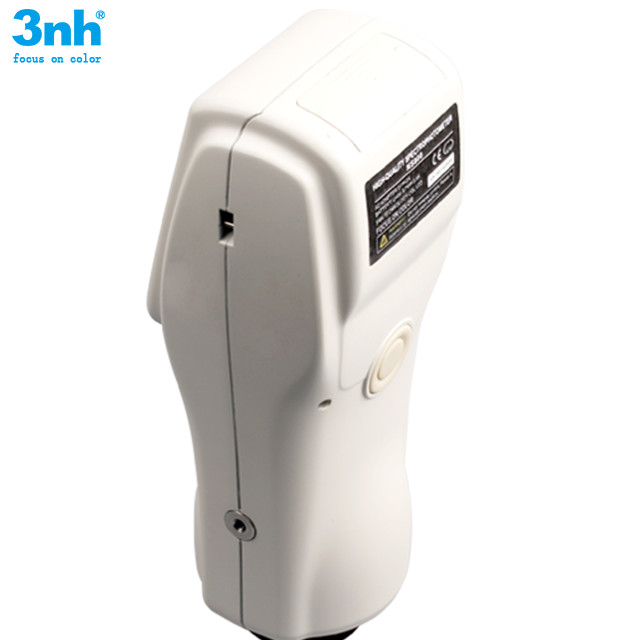

58mm Integrating sphere Size and Electronic Power Spectrophotometer for Plastics NS810
NS810 spectrophotometer is developed by Silk with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.
It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
Specification
| Model | NS810 Color Spectrophotometer |
| Illumination/observation system | d/8 (diffused illumination, 8-degree viewing angle) Comply with CIE No.15, GB/T 3978. |
| Integrating sphere Size | Φ58mm |
| Light Source | combined LED sources |
| Sensor | Silicon photodiodearray |
| Wavelength range | 400~700nm |
| Reflectance range | 0~200% |
| Measuring Aperture | Φ8mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV |
| Color difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000ΔE*00,ΔE(h) |
| Other Chromaticity Data | WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313), TI(ASTM E313,CIE/ISO), Metamerism Index (Mt) Colour Stain, Color Fastness Opacity
|
| Observer | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12 |
| Display Data | Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
| Repeatability | Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Data Memory | 1000 Standards, 15000 Samples |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap |
| Optional Accessory | Micro Printer, Powder Test Box |
Frequently Asked Questions
1. Which models are the equivalent models to NS800?
Answer: BYK 6801 Spectro is the equivalent models to Silk NS800 (About color measurement function).
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
