NHG268 Micro Tri Gloss Meter , 2000gu Gloss Measurement Units Connect To PC
Product Details
| Model: | NHG268 | Measuring Angle: | 20 60 85 |
|---|---|---|---|
| Measuring Area (mm): | 20°: 10x10 60°: 9x15 85°: 5x36 | Division Value: | 0.1GU |
| Erros: | ±1.2 , ± 1.2% | Language: | English,Chinese |
| Dispaly: | TFT 3.5 Inch,touch Screen | Optional Accessories: | Miniature Printer |
| Highlight |
paint gloss meter,60 degree gloss meter |
||
Product Description

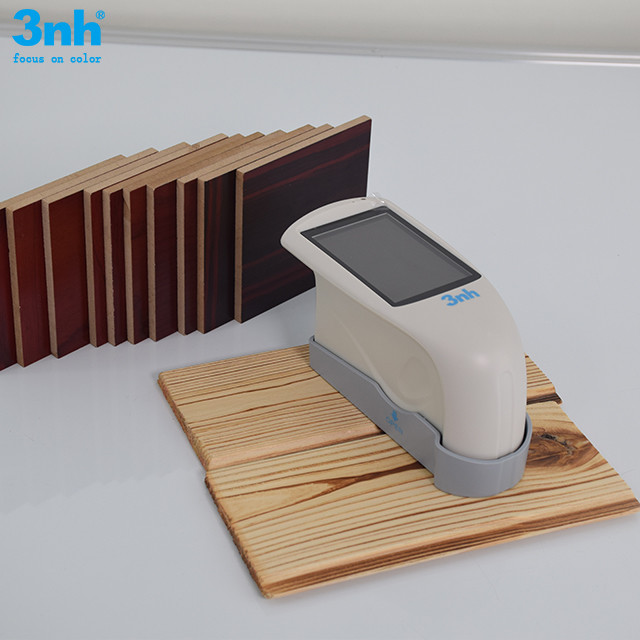

NHG268 Tri-Angle Intelligent Gloss Meter 2000gu with GQC6 Glossy Quality Control Software
Brief Introduction:
NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
NHG268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Features:
- 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
- One button for all angles measurement at the same location
- Display 5 sets of measurement data, good for comparison
- Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
- Continuous mode to check uniformity over large areas
- Connect to PC, more extend functions
- Input gloss value manually
- Large touch screen operation, easy to use
- Beauty appearance, good man-machine communication interface
- Powerful functions to meet many different requirements
- Large storage to save over 5000 data
- Built-in lithi
- um ion rechargeable battery.
Specifications:
| NHG268 Multi-angle Precise Gloss Meter | |
| Model: | NHG268 |
| Measuring Angle | 20°/60°/85° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area (mm) | 20°: 10x10 60°: 9x15 85°: 5x36 |
| Measuring Range | 20°:0~2000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility | 0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class glossmeter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.2 , ± 1.2% |
| Measuring Time | 0.1s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery , >10000 times(within 8 hours) |
| Display | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/RS-232 |
| Storage | Basic mode: 1000; Statistical Mode: 5000, Continuous mode : 5000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |
| Humidity | <85% relative humidity, no condensation |

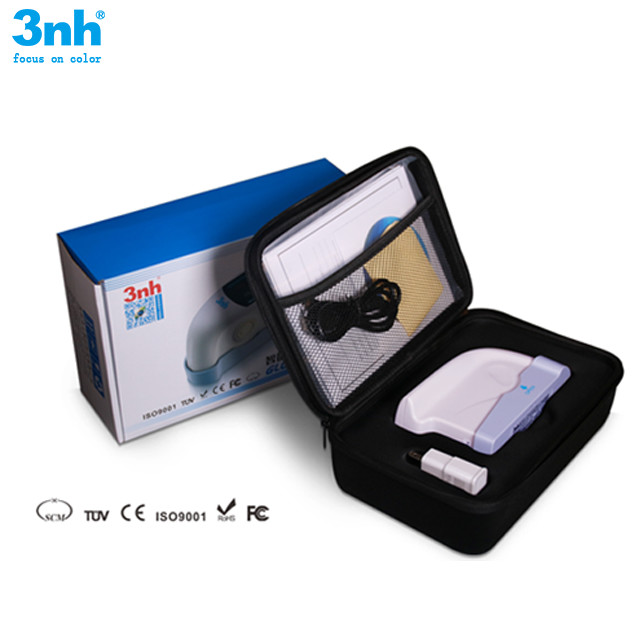

| Standard Accessories | Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice. |
Frequently Asked Questions
1. Which models are the equivalent models to NHG268 Gloss Meter?
Answer: BYK4563 is the equivalent model to Silk NHG268.
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
