Glass Material Resolution Test Chart T120-4 Photography Fill Light Box Four Light Sources
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | 3nh-TILO |
| Certification: | CE, RoHS |
| Model Number: | T120-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Please send inquiry |
| Packaging Details: | Safe Package, MDF Wood Carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Units per Month |
|
Detail Information |
|||
| Material: | Glass | Illuminants: | Four Light Sources D65, A, TL84, CWF |
|---|---|---|---|
| Size: | 1302mm * 803mm * 100mm | Application: | For Camera Test |
| High Light: | camera resolution chart,camera lens test chart |
||
Product Description
Glass Material Resolution Test Chart T120-4 Photography Fill Light Box Four Light Sources
T120-4 Photography Fill Light Box for Camera Test Chart Use with LIght Sources D65 A TL84 CWF
T120-4 Photography fill light box is the latest upgraded products of Shenzhen ThreeNH(3NH) Technology Co., Ltd, which provides professional lighting environment for camera lens evaluation system.
T120-4 is easy to operate and convenient to switch different kinds of light sources. It is also flexible to adjust the brightness of light sources without flickering. It also can display the using times and time of each light source. High-efficiency reflector is installed on the inner wall of the light box, while high transmittance diffuser with high light utilization and high light uniformity is installed outside.
Dimensions

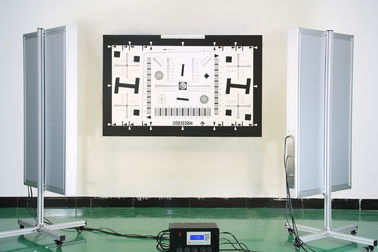

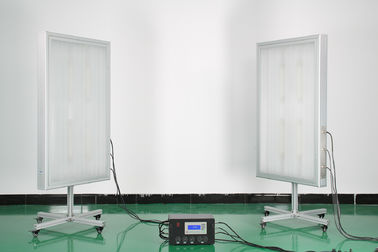

l Light box dimensions (excluding bracket, see Figure 1): 1302mm * 803mm * 100mm
l Light box bracket height 1.7m (see Figure 1, can be customized).
l Luminous surface size (see Figure 1): 1187mm * 688mm
l Internal light can be customized according to user needs.

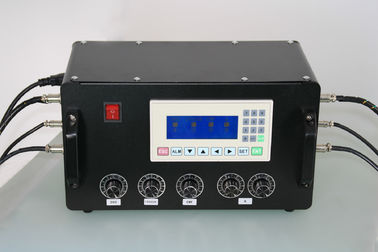

l Control box dimensions (see Figure 2): 370mm * 210.5mm * 227mm
l Environment: temperature 0-40 ℃, relative humidity 80% or less (non-condensing).
l Input Power: AC220V, 50 / 60Hz, maximum power consumption 800W.
l Net weight (double light box + bracket + control box): 55Kg.
Light Source:
| Light Source | Color viewing booths application | Color temperature(k) | Power(W) |
| D65 | International standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
| A | Shooting Light of American Window, Colorimetric reference light source | 2856 | 75 |
| CWF | (Cool White Fluorescent)American Standard | 4150 | 18 |
