20/60/85 Degree Tri Angle Touch Screen Portable Gloss Meter 2000gu NHG268
Product Details
| Measuring Angle: | 20/60/85 Degree | Measuring Size: | 20°:10x10 60°:9x15 85°:5x36 |
|---|---|---|---|
| Standard: | ASTM D 523 And ASTM D 2457 | Range: | 2000gu |
| Tolerance: | ±1.2, ±1.2% | Language: | Chinese, English |
| Highlight |
paint gloss meter,portable gloss meter |
||
Product Description

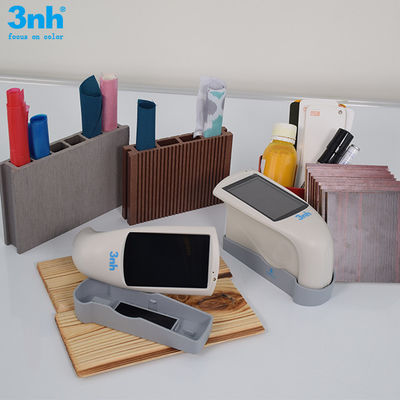

NHG268 Tri Angle Touch Screen Gloss Meter 2000gu with 20/60/85 degree
Features
1. 20, 60 and 85° in one: from high to low gloss
2. One button for all angles measurement at the same location
3. Display 5 sets of measurement data, good for comparison
4. Continuous mode to check uniformity over large areas
5. Connect to PC, more extend functions
6. Input gloss value manually
7. Large touch screen operation, easy to use
Brief Introduction
NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.NHG268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Technical Specification
| Model | NHG268 gloss meter |
| Measuring Area | 20°: 10x10mm 60°: 9x15mm 85°: 5x36mm |
| Measuring Range | 20°:0~2000GU 60°:0~1000GU 85°:0~160GU |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measuring Mode&Storage | Basic Mode: 1000 Statistical Mode: 5000 Continuous Mode: 5000 |
Standard Accessories
| Standard Accessories | |
| 1 | Power Adapter |
| 2 | USB Cable |
| 3 | User Manual |
| 4 | CD (Including QC Software) |
| 5 | Calibration Plate |
Silk compared to Minolta & Xrite & BYK
| Silk Instrument | Description | Similar Models |
| YS3060 Spectrophotometer | d/8° | X-rite Ci62, Ci64, Ci64UV |
| MINOLTA CM-2600d, CM-600d, 700d | ||
| YS3010 Spectrophotometer | d/8° | X-rite Ci60 |
| MINOLTA CM-2300d | ||
| NS800 Spectrophotometer | 45°/0 | BYK 6801 |
| NR60CP Colorimeter | 8°/d | MINOLTA CR-10 plus |
| NHG268 Gloss Meter | 20°, 60°, 85° gloss | BYK 4563 |
| NHG60 Gloss Meter | 60° gloss | BYK 4561 |
| T90-7 Light Cabinet | 7 Illuminants | X-rite SpectraLight QC |
Frequently Asked Questions
1. Which models are the equivalent models to NHG268 Gloss Meter?
Answer: BYK4563 is the equivalent model to Silk NHG268.
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
