Sector Star Camera Resolution Chart 36 Sectors With Corner Stars Reflectance TE220
Product Details
| Material: | High Resolution Photographic Paper | Category: | Reflective/Transmisive |
|---|---|---|---|
| Format: | Custom Designs | Ratio: | 4:3 |
| Highlight |
camera resolution chart,camera lens test chart |
||
Product Description

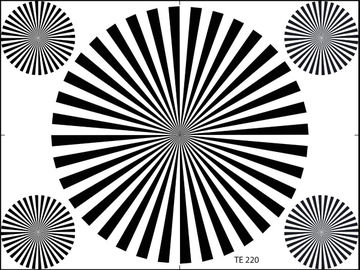

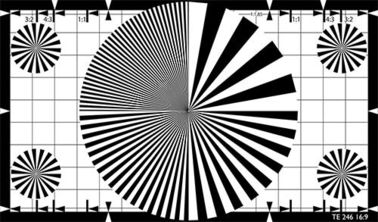

SECTOR STAR TEST CHART (36 SECTORS WITH CORNER STARS) REFLECTANCE TE220
| Model | TE220 |
| Type | Reflective/Transparent |
| Format | Custom Designs |
| Ratio | 4:3 |
The TE220 test chart is designed for
• adjustment of camera lenses
• checking back focal distance
With the aid of a low transmission filter and by means of low level lighting make sure that the camera is not over modulated with the aperture in the open position.
a) Optical focus: Adjust focus at shortest focal length.
b) Back focal distance (lens): Adjust focus at shortest focal length by regulating lens mechanically with adjustment screw and optimize alternatively with a).
c) Back focal distance (pick-up tubes): If focus varies from channel to channel between greatest and shortest focal length, the individual pick-up tubes must be adjusted mechanically in the optical axis.
1. Select white channel. Set optical focus at greatest focal length. With shortest focal length and divergent focus adjust the pick-up tube in W-channel until optimum focus is achieved. If necessary optimize by alternating with optical focus adjustment.
2. With unchanged optical focus adjustment and shortest focal length adjust the red and blue pick-up tube until optimum focus is achieved. Image focus (focus adjustment) is maintained at all focal lengths (zoom-in) and constant distance from object by means of back focal distance adjustment.
