P60+ Color Matching Machine D65 Textile Light Matching Box Color Viewer Check Booth
Product Details
| Model: | P60+ | Size: | 695x552x502mm |
|---|---|---|---|
| Light Sources: | D65,TL84,CWF,F,UV,TL83 | Standard: | ASTM D1729, ISO3664, DIN, ANSI And BSI |
| Color: | N7 Neutral Grey | Certifications: | CE, ISO 9001, ROHS, SCM |
| Highlight |
color checking light box,color matching booth |
||
Product Description
D65 Textile Light Matching Box Color Viewer Check Booth Machine P60+
|
Brand |
Order Model |
Configured Light Sources |
Weight |
Dimension(mm) |
|---|---|---|---|---|
|
Silk |
P60+ Color Light Box |
D6D65 Textile Light Matching Box Color Viewer Check Booth Machine P60+CWF, TL83 |
30kg |
695x552x502 |
P60+ verivide lamp D65 fabric inspection light box / color matching light box can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Ø Silk Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

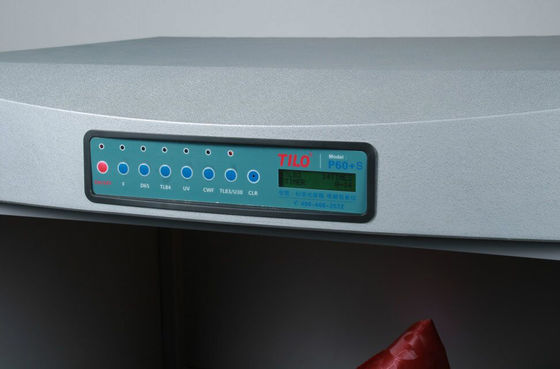

Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized
Packing & Delivery
Packing Details : MDF package
Delivery Details : within 2 days after payment
Payment Terms: T/T 100% In Advance
| Product Name | P60+ Color light box |
| Material | plastic |
| Color | neutral grey |
| Certification | CE,ISO9001,ROHS |
| Light Source | D65,TL84,CWF,TL83,UV,F |
| Warranty | 12 months except comsumable |
| Used | Textile, Dyeing, Packaging, Printing, Lether etc |
About Light Sources:
| Light Source | Color Viewing Booths Application | Color Temperature(K) | Power(W) |
| D65 | International Standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe,Japan and China | 4000 | 18 |
| CWF | Cool White Fluorescent American Standard | 4150 | 18 |
| F/A | "Sun-set Light Yellow" Incandescent Light Source | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical brightness or fluorescent pigments. | Wavelength: 365nm | 20 |
| U30 | Warm White Fluorescent, American Standard | 3000 |
18 |
Packing List:
| No. | Name | Quantity |
| 1 | Light Booth Top Cover | 1 pcs |
| 2 | Light Booth Bottom | 1 pcs |
| 3 | Light Booth Back Cover | 1 pcs |
| 4 | Light Booth Side Cover | 2 pcs |
| 5 | Power Adapter | 1 pcs |
| 6 | Operating Manual | 1 pcs |
| 7 | Warranty Card | 1 pcs |
| 8 | D65 Light Tube | 2 pcs |
| 9 | TL84 Light Tube | 2 pcs |
| 10 | UV Light Tube | 1 pcs |
| 11 | F Light Tube | 4 pcs |
| 12 | CWF Light Tube | 2 pcs |
| 13 | TL83 Light Tube | 2 PCS |
Remarks: Optional tubes D50, D75, U30,TL83, U35, A. If you need, please let us know your detail requirement.
