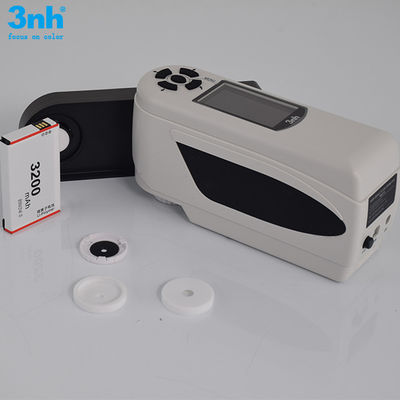

Ceramic Pigments Hunter Lab Colorimeter Nh 310 Color Difference Testing With Powder Test Box

Ceramic pigments colorimeter nh 310 with powder test box for color difference testing

Brief Introduction
1. NH310 colorimeter features a 2.7" TFT screen with four buttons beside which makes the operation quite simple, the interface quite friendly. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld colorimeter.
3. Repetitive error is less than 0.06ΔE*Lab, inter-instrument error is less than 0.4ΔE*Lab, which make its stability and reliability of measurement very good.
4. NH310 colorimeter is widely applied to color control in different industries, such as plastics, painting and coating, textiles, leather, food, furniture.
5. NH310 colorimeter also goes with a powerful PC software SQC8 which includes more extended functions that can enormously facilitate your work.
6. With the configuration of universal test component and powder test box, measurements of liquid, paste, powder and particle can be implemented without hesitation.


Technical Specification


Application Industry
Nowadays, color management instruments, like spectrophotometers, colorimeters, have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.

FAQ:
1. When I received NH310/NH300 colorimeter and perform measurement, why the measured data is abnormal?
After receiving NH310/NH300, you have to perform white and black calibration manually when first starting.
2. In which condition, manual white and black calibration and auto calibration are required for NH310?
a. It’s needed to perform manual calibration for NH310 when first starting.
b. In the subsequent starting, NH310 will perform auto calibration at startup. No need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH310 measured data is not accurate.
3. In which condition, manual white and black calibration for NH300 is required?
a. It’s needed to perform manual calibration for NH300 when first starting.
b. In the subsequent starting, no need to perform manual calibration.
c. Suggestion: it’s best to perform manual calibration once a week or when NH300 measured data is not accurate.
4. How to replace NH310 measuring aperture?
There are three measuring apertures for NH310: Φ8mm (standard accessory), Φ4mm (standard accessory), extended Φ8mm (optional accessory)
a. Turning on
b. Removing measuring aperture, install the needed measuring aperture.
c. Select “Settings-Aperture Setting” in main menu to select corresponding measuring aperture.
d. After selecting aperture, the instrument will display “White and Black Calibration” interface. White and black calibration must be performed.
e. Replace completed.
5. CQCS3 (Color Quality Control System) Installation
a. Before installation, please Copy CQCS3 folder to your computer and don’t remove any files in CQCS3 folder.
b. Double-click the setup.exe to install CQCS3 software.
c. Then double-click Install.bat under the CQCS3USB_Driver file to install the driver.
d. Detailed installation information please read the "Installing Software" under CQCS3 User manual.doc.

Warranty:
NH310 color reader colorimeter for liquid powder coffee colour check with accessory is under warranty for 12 months from the purchase date. Customers must provide warranty card and valid proof of purchase.
