Digital 60 Degree Gloss Meter , 1000 Gu Micro Aperture Gloss Measurement Units NHG60M

Place of Origin Shenzhen,China
Brand Name 3nh
Certification CE,RoHs,ISO,ASTM etc.
Model Number NHG60M
Minimum Order Quantity 1pc
Price DISCUSS
Packaging Details Standard Export Package
Delivery Time 2 work days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NHG60M Measuring Angle 60
Measuring Area 1.5*2mm Dimesion 160*75*90mm(L*W*H)
Interface USD-RS-232 Software GQC6 QCsoftware
Divation ±1.5,±1.5% OEM Yes
High Light

paint gloss meter

,

60 degree gloss meter

Leave a Message
Product Description

60 degree digital glossmeter 1000 gu NHG60M micro aperture gloss meter

Introduction:

NHG60M gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60M conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.





Application:

NHG60M gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.





Pictures:











Features:



1. One button for all angles measurement at the same location

2. Display 5 sets of measurement data, good for comparison

3. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

4. Continuous mode to check uniformity over large areas

5. Connect to PC, more extend functions

6. Input gloss value manually

7. Large touch screen operation, easy to use

8. Beauty appearance, good man-machine communication interface

9. Powerful functions to meet many different requirements





Specification:



NHG60M Small Aperture Gloss Meter
Model NHG60M
Measure Angle 60°
Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457
Measuring Area (mm) 1.5*2
Measurement Range 0~1000GU
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-10GU 10-100GU 100-1000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation

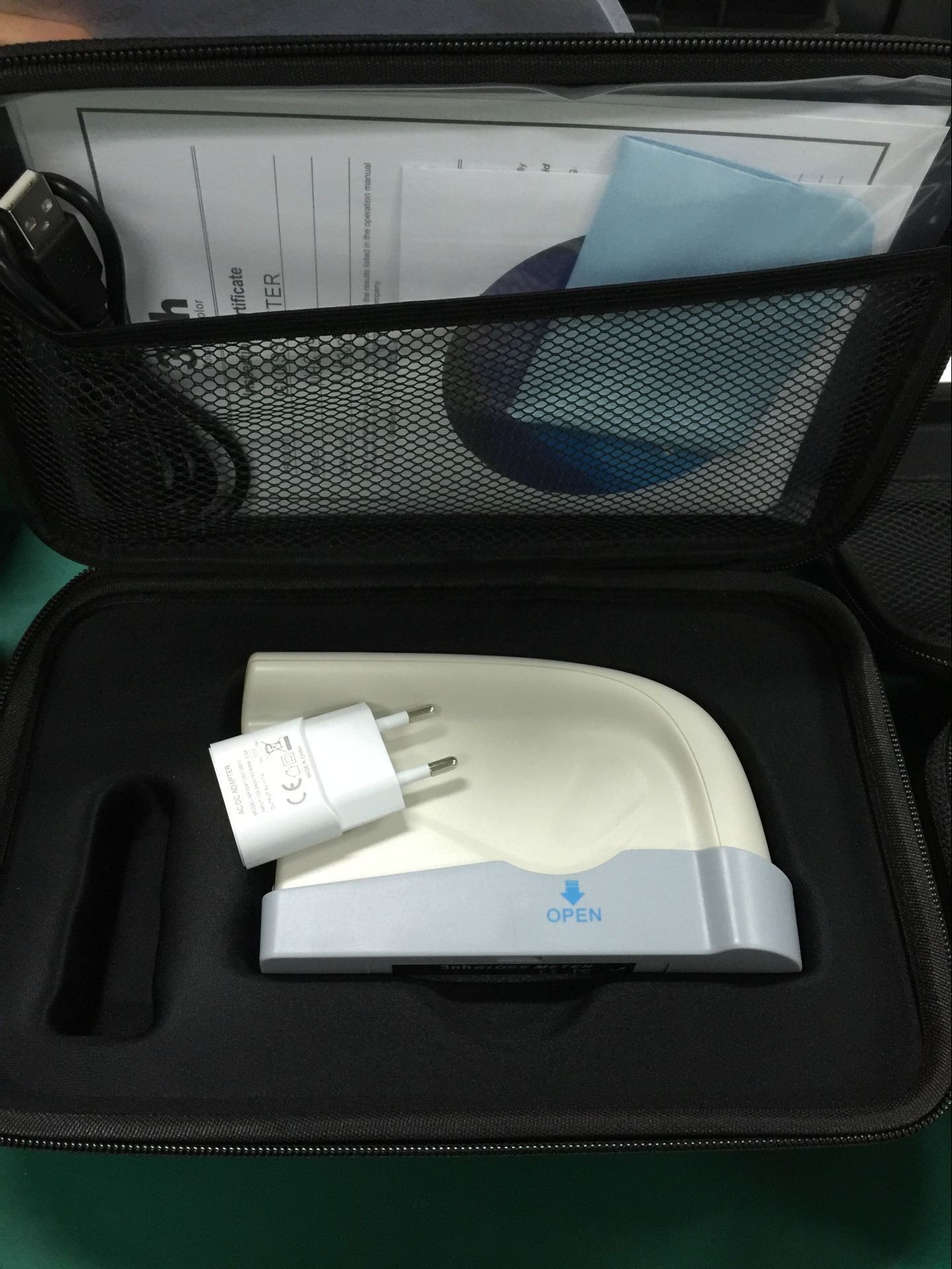

Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.



NHG60M 60° Precise Gloss Meter


Company info:



Shenzhen Threenh Technology Co., Ltd. was established in 1998. It is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.

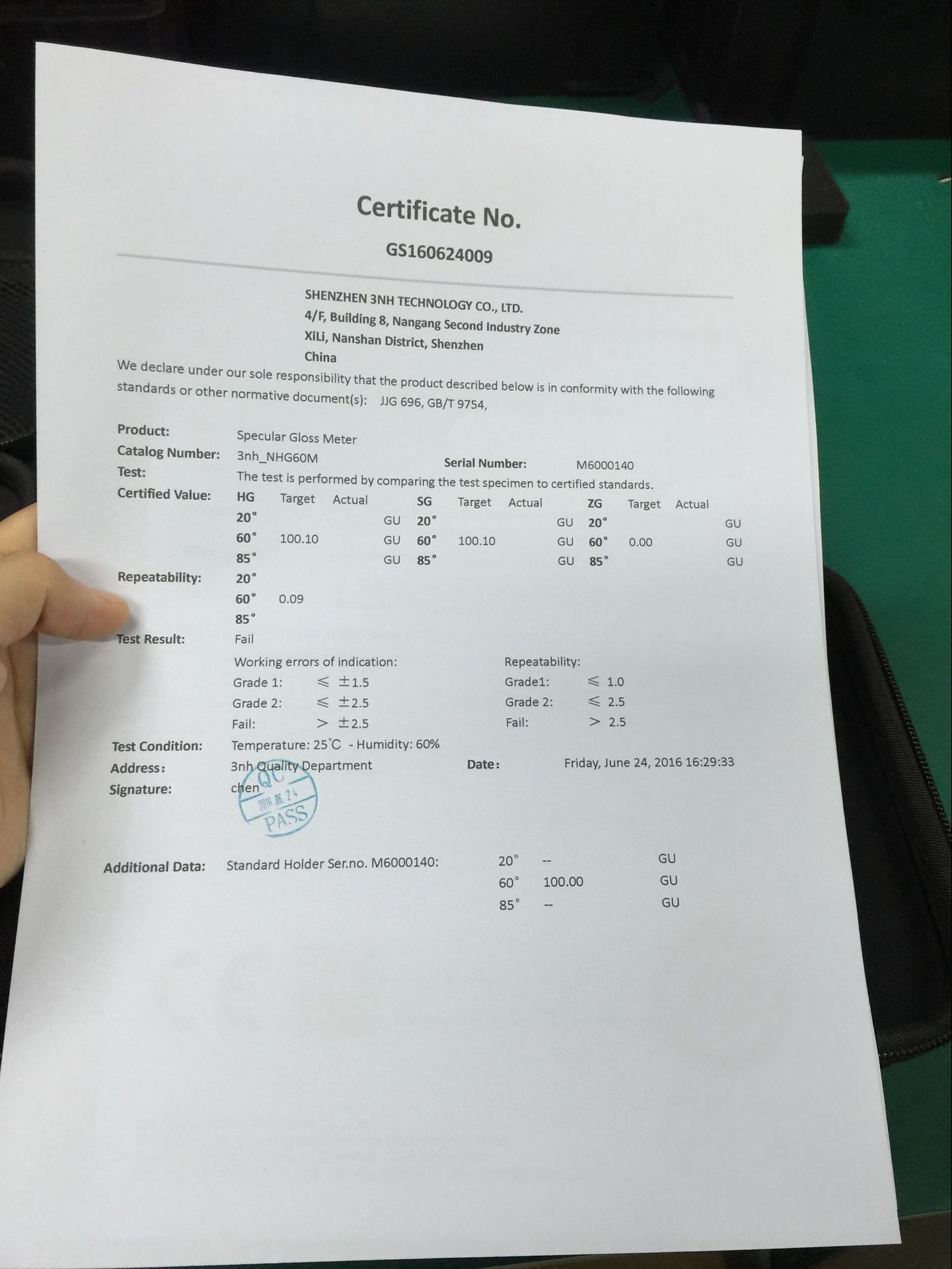

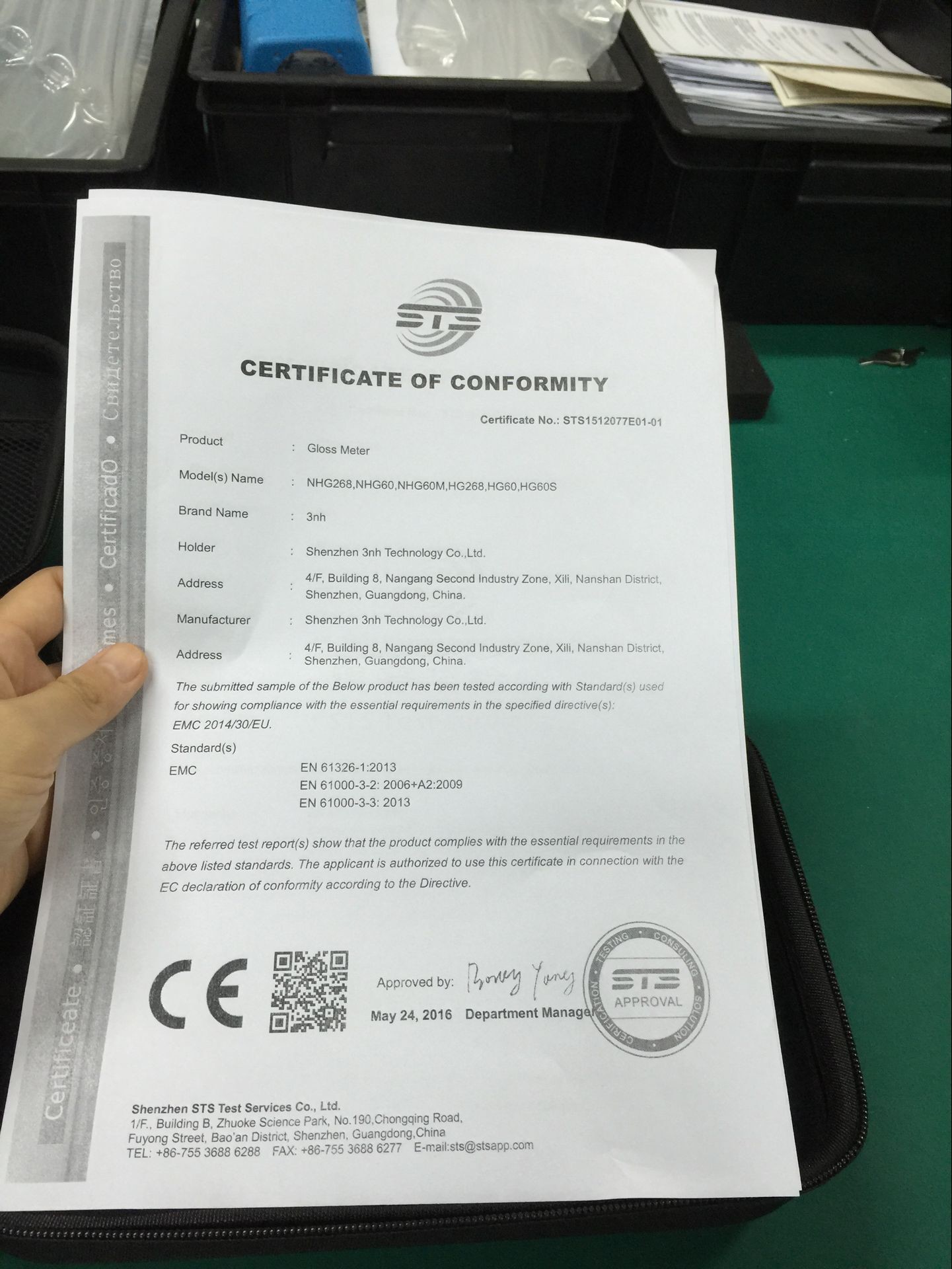

Certificates:

ISO9001, CE, FCC, ROHS, TUV
