60 Degree Digital Gloss Meter 1000 Gu NHG60 Single Angle Aperture USB Data Port

  • 60 Degree Digital Gloss Meter 1000 Gu NHG60 Single Angle Aperture USB Data Port
  • 60 Degree Digital Gloss Meter 1000 Gu NHG60 Single Angle Aperture USB Data Port
  • 60 Degree Digital Gloss Meter 1000 Gu NHG60 Single Angle Aperture USB Data Port
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHs
Model Number NHG60
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 30*20*10cm, 1kg, with a carrying bag
Delivery Time 1-5 Days
Payment Terms T/T
Supply Ability 1000 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Angle 60° Measuring Area(mm) 60°:9x15
Measuring Range(GU) 60°:0~1000 Division Value 0.1GU
Tolerance ±1.2, ±1.2% Data Port USB
High Light

paint gloss meter

,

60 degree gloss meter
Leave a Message
Product Description

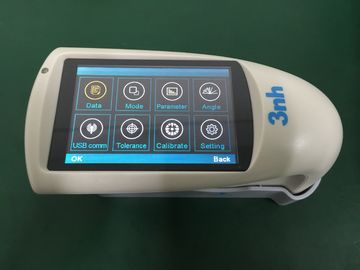

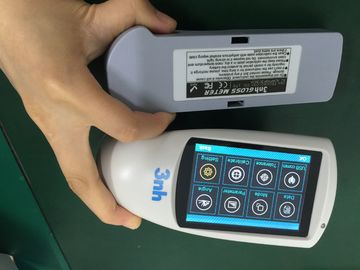

60 degree digital glossmeter 1000 gu NHG60 single angle aperture gloss meter



Introduction:

NHG60 gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



Application:

NHG60 gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.



Features:



1. One button for all angles measurement at the same location

2. Display 5 sets of measurement data, good for comparison

3. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

4. Continuous mode to check uniformity over large areas

5. Connect to PC, more extend functions

6. Input gloss value manually

7. Large touch screen operation, easy to use

8. Beauty appearance, good man-machine communication interface

9. Powerful functions to meet many different requirements





Specification:



Parameters Single-angle Gloss Meter NHG60
Measuring Angle

60°

Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area 60°: 9x15mm
Measuring Range 60°:0~1000GU
Division Value 0.1GU
Measurement Range Repeatability
Reproducibility		 0-10GU 10-100GU 100-2000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform to the Working Requirements for JJG696 First Class Glossmeter
Chromaticity Response Corresponding with CIE 1931(2°) under CIE C Light Source
Tolerance ±1.2, ±1.2%
Measuring Time 0.1s
Display Size TFT 3.5"
Screen-touch Yes, Capacitive Touch Screen
Data Port USB
Language Chinese, English
Battery 3200mAh Li-ion Battery , more than 10000 times (within 8 hours)
Dimension 160*75*90mm
Weight 350g
Measuring Mode&Storage

Basic Mode: 1000

Statistical Mode: 5000

Continuous Mode: 5000
PC Software GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions
Operation Temperature 0~40℃ (32~104℉)
Storage Temperature -20~50℃ (-4~122℉)
Humidity <85% Relative Humidity, No Condensation
Standard Accessories Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional Accessories Mini Printer




Company info:



Shenzhen Threenh Technology Co., Ltd. was established in 1998. It is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.



Certificates:

ISO9001, CE, FCC, ROHS, TUV



Frequently Asked Questions



1. Which models are the equivalent models to NHG60 Gloss Meter?

Answer: BYK4561 is the equivalent model to 3nh NHG60.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
