xProduct Details
| Optical Geometry | 45°/0 | Sphere Size | Φ58mm |
|---|---|---|---|
| Repeatibility | ΔE*≤0.04 | Inter-instrument Agreement | ΔE*≤0.2 |
| Wavelength Range | 400-700nm | Measuring Aperture | Φ8mm |
| High Light | colour measurement equipment,multi angle spectrophotometer |
||
Product Description
3nh NS800 handheld spectrophotometer device color test equipment portable colorimeter
Product Specification:
| Model | NS800 |
| Illumination/ observation system | 45°/0° (45 ring-shaped illumination, vertical viewing) |
| Integrating sphere size | 58mm |
| Light source | Combined LED sources |
| Sensor | Silicon photodiode array |
| Wavelength range | 400~700nm |
| Wavelength interval | 10nm |
| Reflectance range | 0~200% |
| Measuring aperture | 8mm |
| Color space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB&WI&YI |
| Color difference formila | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000ΔE*00, ΔE(h) |
| Other chromaticity data |
WI(ASTM E313, CIE/ISO, AATCC, Hhunter), YI(ASTM D1925, ASTM 313), Metamerism INdex(Mt), color strength Color stain, color fastness |
| Observer | 2°/10° |
| Illuminant | D65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Display data | Spectral value/graph, colorimetric value, color difference value/graph, pass/fail result, color simulation, color index setting (ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting |
| Measurement time | 1.5s |
| Repeatability |
Spectral reflentance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric value: standard deviation within ΔE*ab 0.04 (measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Errors between each instrument | within ΔE*ab 0.2 (average for 12 BCRA series II color tiles) |
| Dimension | L*W*H=90*77*230mm |
| Weigh | 600g |
| Battery | Li-ion battery, 2800 times within 8 hours |
| Lamp life | 5 years, more than 1.6 million measurements |
| Display screen | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/ RS-232 |
| Data memory | 1000 standard, 15000 samples |
| Operating temperature | 0~40 ℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |

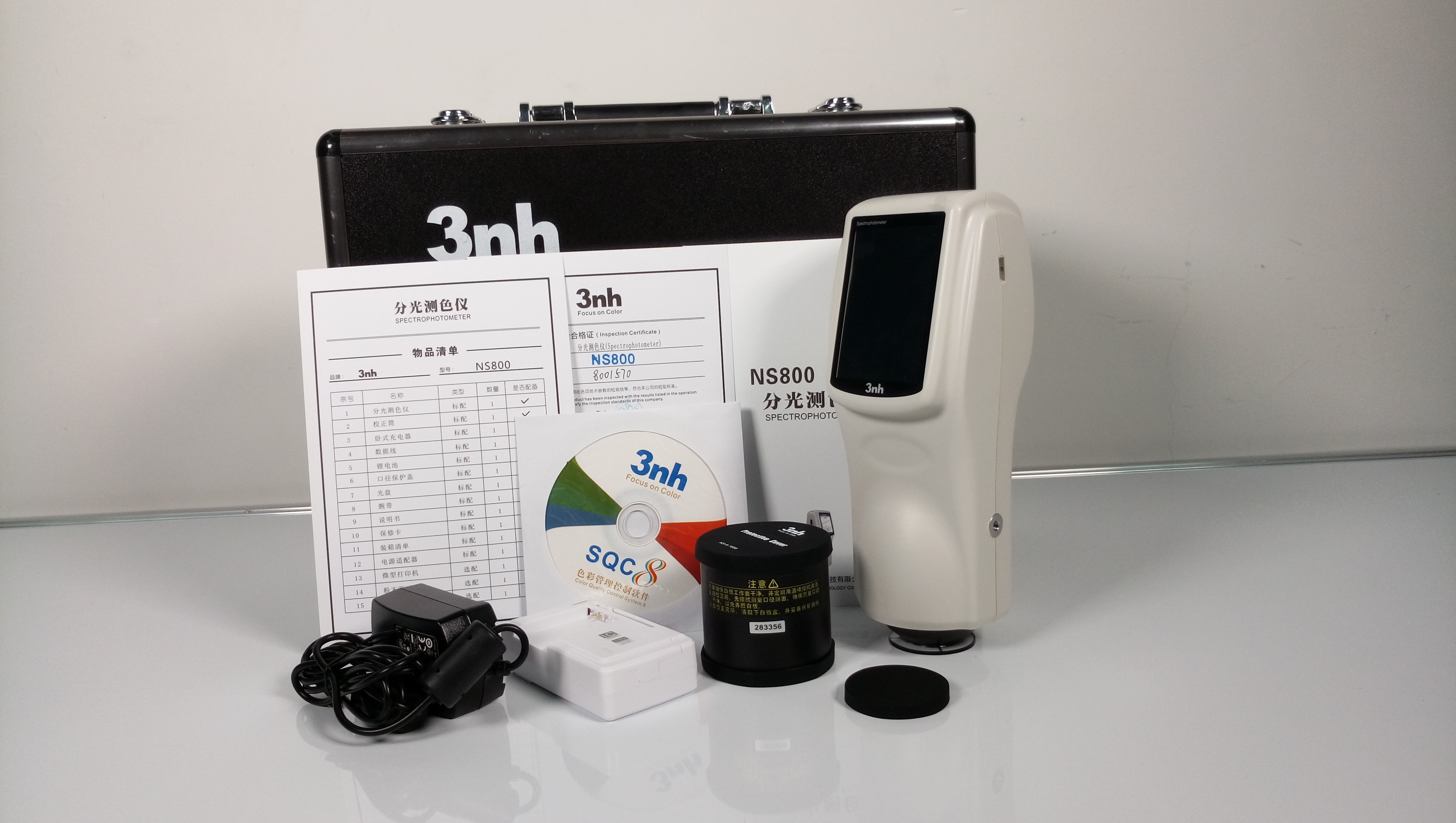

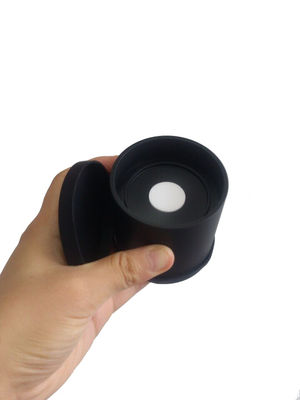

| Standard accessory | Power adapter, li-ion battery, operating instruction, CD-ROM ( containing management software), data line, white and black calibration cavity, protective cover and wrist strap |
| Optional accessory | Universal test components, micro printer, power test box |
| Warranty | 1 year |
| Notes | The specifications are subject to change without notice. |
Product Images:
Product Introduction:
NS 800 spectrophotometer is developed by 3nh with indepandent intellecual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry. It can measure reflentande spectrum and other color index precisrly. NS 810 spectrophotometer can not only help to perform color matching management studies, but also control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
It's used to compare color difference in plastic, electronic, painting, coating, ink, textile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratories.
Packing & Delivery:
| Size | 436*224*365mm |
| Gross weight | 3.8kg |
| Standard accessory | Power adapter, li-ion battery, operating instruction, CD-ROM ( containing management software), data line, white and black calibration cavity, protective cover and wrist strap |
| Optional accessory | Universal test components, micro printer, power test box |
Company Information:
Shenzhen Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.
Certificates:
ISO9001, CE, FCC, ROHS, TUV
