Portable Colour Matching Spectrophotometer Measurement Analysis Instrument YS3060 High Precise
Product Details
| Optical Geometry: | D/8° | SCE/SCI: | SCE & SCI |
|---|---|---|---|
| UV Light Source: | Yes | Repeatibility: | ΔE*≤0.03 |
| Inter-instrument Agreement: | ΔE*≤0.15 | Measuring Aperture: | 8mm & 4mm |
| Highlight |
hunter lab spectrophotometer,color measurement instruments |
||
Product Description
Portable Silk color measurement analysis instrument YS3060 precise colorimeter manufacturer made in China
Product Specification:
| Model | YS3060 |
| Illumination/ observation system | reflect: di:8°. de:8° ( diffused illuminatiom, 8-degree viewing angle); UV included/ UV excluded |
| Integrating sphere size | 48mm |
| Light source | Combined LED sources, UV souuces |
| Spectral Mode | Concave-grating |
| Sensor | 256 Image element double arrays CMOS image sensor |
| Wavelength range | 400~700nm |
| Wavelength interval | 10nm |
| Reflectance range | 0~200% |
| Half banwidth | 10nm |
| Measuring aperture | 8mm & 4mm |
| Color space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB |
| Color difference formila | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), ΔE(Hunter), WI(ASTM E313, CIE/ISO, AATCC, Hunter) |
| Other chrometric data |
WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), MI, strength, stainning fastness, cover ratio, 8° gloss value |
| Observer | 2°/10° |
| Illuminant | D65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12,CWF, U30, TL83, TL84, U35 |
| Display data | Spectral value/graph, colorimetric value, color difference value/graph, pass/fail result, color simulation, color index setting (ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting |
| Measurement time | Approx 1s ( approx 2.6s in SCI & SCE |
| Repeatability |
Spectral reflentance: MAV/SCI, standard deviation within 0.08%(400~700nm: within 0.18%) Colorimetric value: standard deviation within ΔE*ab 0.03(measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.) |
| Errors between each instrument | within ΔE*ab 15.2 (MAV/SCI) (average for 12 BCRA series II color tiles) |
| Measurement mode | Single measurement, average measurement (2~99 times) |
| Locate mode | Camere locating |
| Dimension | L*W*H=184**77*1050mm |
| Weigh | 600g |
| Battery | Li-ion battery, 5000 times within 8 hours |
| Lamp life | 5 years, more than 1.6 million measurements |
| Display screen | TFT 3.5 inch, capacitive touch screen |
| Interface | USB/ RS-232, Bluetooth 4.0 |
| Data memory | 1000 standard, 15000 samples (SCI & SCE can be included in one data) |
| Languages | Chinese & English |
| Operating temperature | 0~40 ℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Standard accessory | Power adaptor, li-ion battery, operating instruction, CD-ROM ( containing management software), white and black calibration cavity, dust cover |
| Optional accessory | Universal test components, micro printer, power test box |
| Warranty | 1 year |
| Notes | The specifications are subject to change without notice. |

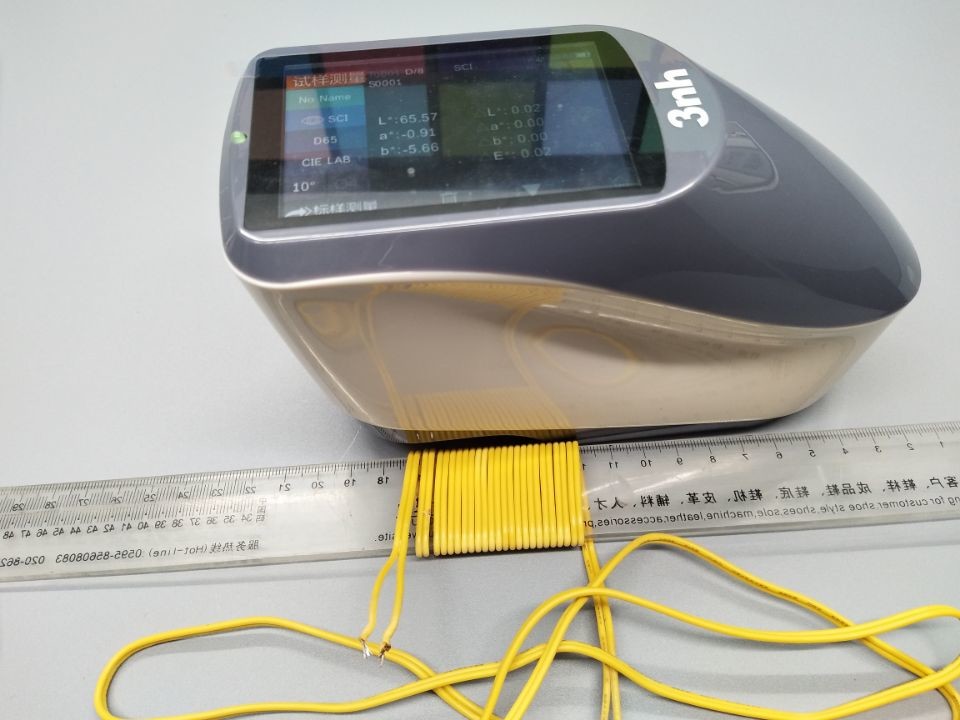

Product Images:
Product Introduction:
YS3060 spectrophotometer is developed by Silk with indepandent intellecual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry. It can measure reflentande spectrum and other color index precisrly. NS 810 spectrophotometer can not only help to perform color matching management studies, but also control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
It's used to compare color difference in plastic, electronic, painting, coating, ink, textile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratories.
Packing & Delivery:
| Size | 405*209*319mm |
| Gross weight | 2.95kg |
| Standard accessory | Power adapter, li-ion battery, operating instruction, CD-ROM ( containing management software), data line, white and black calibration cavity and dust cover |
| Optional accessory | Universal test components, micro printer, power test box |
Company Information:
Certificates:
ISO9001, CE, FCC, ROHS, TUV
Customer Confirmnation:
Related Knowledge about Spectrophotometer:
Color Space
CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
