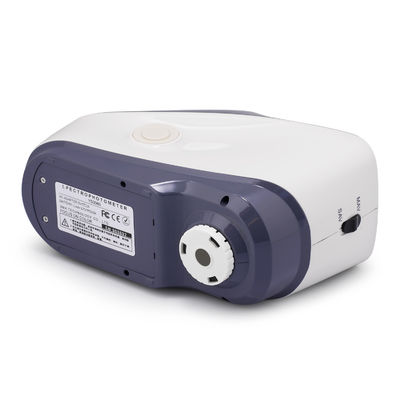

High Precision Portable Hunter Lab Spectrophotometer YS3060 Equal To CM-2600D Chroma Meter

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number YS3060
Minimum Order Quantity 1pc
Packaging Details Standard Instrument Package
Delivery Time 2 woks days
Payment Terms T/T, Paypal.etc
Supply Ability 1000pcs/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model YS3060 Illumination 48mm
Wavelength Range Concave-Grating Reflectance Range 400-700nm
Color Spaces 10nm Locate Mode 2-degree/10-degree
Battery Li-ion Battery Aperture 4mm & 8mm
Light Source LED & UV Light Source Interface USB/RS-232, Bluetooth 4.0 Dual Mode
High Light

hunter lab spectrophotometer

,

color measurement instruments

Leave a Message
Product Description

High Precision Portable Color Spectrophotometer YS3060 Equal to CM-2600D Chroma Meter





Brief Introduction:



YS3060 grating spectrophotometer adopts bluetooth and USB dual modes for wider user. YS3060 spectrophotometer also with SCI & SCE double measuring data, which also with 4mm and 8mm aperture. Special UV light make YS3060 spectrophotometer more accuracy and easy to operating. YS3060 spectrophotometer also with extended PC software which will enable it be a good partner for colorist and color QC management.



Specification:



Model

Items

YS3060 YS3020 YS3010
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size 48mm
Light Source Combined LED Light, UV Light Combined LED Light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400-700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture Dual Aperture: 10mm/8mm & 5mm/4mm Customized Aperture: 8mm/4mm/1×3mm Single Aperture: 8mm/10mm
Specular Component SCI&SCE
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Other Colorimetric Index

WI(ASTM E313, CIE/ISO, AATCC, Hunter),

YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),

Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness

Observer Angle 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 D65, A, C, D50, D55, D75, F2, F7, F11 D65, A, C, D50
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time 2.6s
Repeatability MAV/SCI: ΔE*≤0.03 MAV/SCI: ΔE*≤0.05 MAV/SCI: ΔE*≤0.06
Inter-instrument Error MAV/SCI: ΔE*≤0.15 MAV/SCI: ΔE*≤0.2 MAV/SCI: ΔE*≤0.4
Measurement Mode Single Measurement, Average Measurement
Locating Method Camera View Finder Locating
Battery Li-ion battery. 5000 measurements within 8 hours
Dimension L*W*H=184*77*105mm
Weight 600g
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth 4.0 USB
Data Storage Standard 2000 Pcs, Sample 20000 Pcs
Language English, Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.



Application Industry:



Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
