0-1000 Gu Tiles / Marbles Portable Gloss Meter  NHG60M 1.5*2mm Small Aperture With Qc Software

0-1000 Gu Tiles / Marbles Portable Gloss Meter NHG60M 1.5*2mm Small Aperture With Qc Software

Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,RoHs,ISO,ASTM etc.
Model Number: NHG60M

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: DISCUSS
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: NHG60M Measuring Angle: 60
Measuring Area: 1.5*2mm Dimesion: 160*75*90mm(L*W*H)
Interface: USD-RS-232 Software: GQC6 QCsoftware
Divation: ±1.5,±1.5% OEM: Yes
High Light:

paint gloss meter

,

60 degree gloss meter

Product Description

China 3nh NHG60M 1.5*2mm small aperture gloss meter 0-1000 Gu tiles and marbles digital gloss meter with qc software



Product Description



NHG60M gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60M conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



Technical Specification



NHG60M Small Aperture Gloss Meter
Model NHG60M
Measure Angle 60°
Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457
Measuring Area (mm) 1.5*2
Measurement Range 0~1000GU
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-10GU 10-100GU 100-1000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.




Images

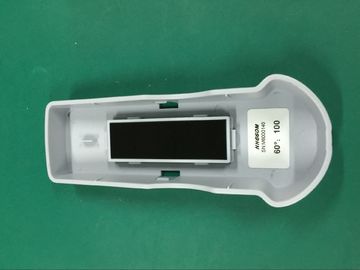

0-1000 Gu Tiles / Marbles Portable Gloss Meter  NHG60M 1.5*2mm Small Aperture With Qc Software 0

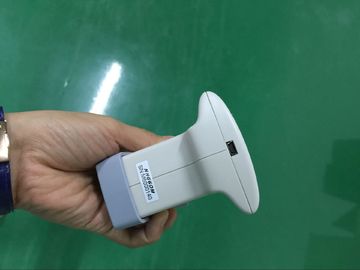

0-1000 Gu Tiles / Marbles Portable Gloss Meter  NHG60M 1.5*2mm Small Aperture With Qc Software 1

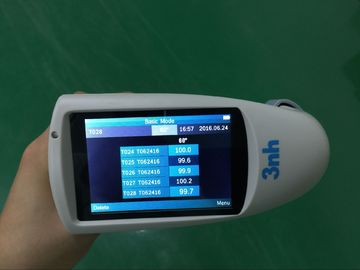

0-1000 Gu Tiles / Marbles Portable Gloss Meter  NHG60M 1.5*2mm Small Aperture With Qc Software 2

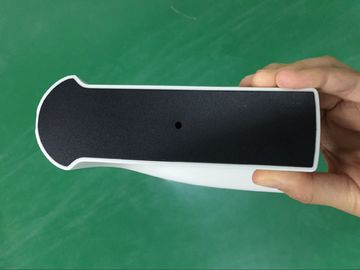

0-1000 Gu Tiles / Marbles Portable Gloss Meter  NHG60M 1.5*2mm Small Aperture With Qc Software 3


Packaging & Shipping



Size 29*19*10mm
Gross weight 2kg
Standard accessory Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional accessory micro printer,


Our Services



We can ship by DHL, Fedex, UPS, TNT, SF express etc door to door, and we support 1 year warranty except consumables.



Company Information



Shenzhen Threenh Technology Co., Ltd. was established in 1998. It is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.
0-1000 Gu Tiles / Marbles Portable Gloss Meter  NHG60M 1.5*2mm Small Aperture With Qc Software 4
FAQ



1. Which models are the equivalent models to HG268 Gloss Meter?

Answer: BYK4563 is the equivalent model to 3nh HG268.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
