YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs

Brand Name: Silk
Model Number: YS4580
Place of Origin: China
Certification: CE, TUV, FCC, RoHS, ISO9001
Minimum Order Quantity: 1Unit
Price: Please send inquiry
Supply Ability: 500 Units per Month
Tags

multi angle spectrophotometer

integrating sphere spectrophotometer

colour measurement equipment

Product Details

Optical Geometry: 45/0(45 Ring-shaped Illumination, Vertical Viewing) Light Source: Combined LED Light, UV Light
Observer Angle: 2°/10° Repeatibility: ΔE*≤0.04
Color Space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy Measuring Aperture: Φ20mm
Highlight

colour measurement equipment

,

multi angle spectrophotometer

Product Description

Silk New product YS4580 45/0 Grating Spectrophotometer with 20mm Aperture for Traffic Signs

Easy operation Smart spectrophotometer Incompable Accurancy Color Test Machine
Company info. :
YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 0

Silk. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.



Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV.



The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Brief Introduction :
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS4580 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed..
Application :



Application Industry

Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 1


Specification :
45/0 Grating Spectrophotometer
Model YS4580 45/0 Grating Spectrophotometer with 20mm Aperture
Illumination/Observation system 45/0(45 ring-shaped illumination, vertical viewing);
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features 20mm aperture special design for traffic signs , It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement .

Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture Φ20mm
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 4.0
Data memory Standard 1000 Pcs, Sample 30000 Pcs
Language Chinese,English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation))
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.

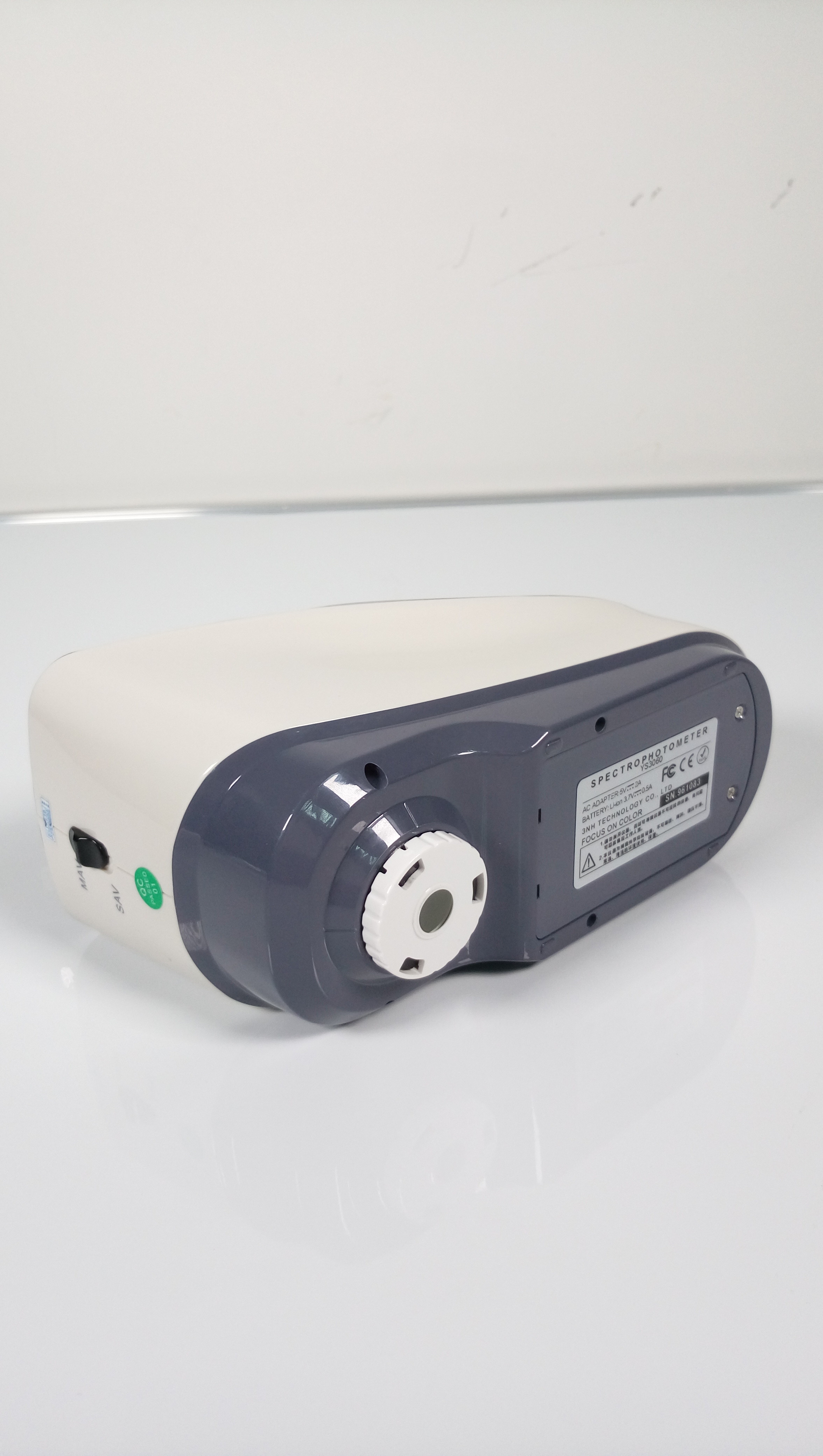

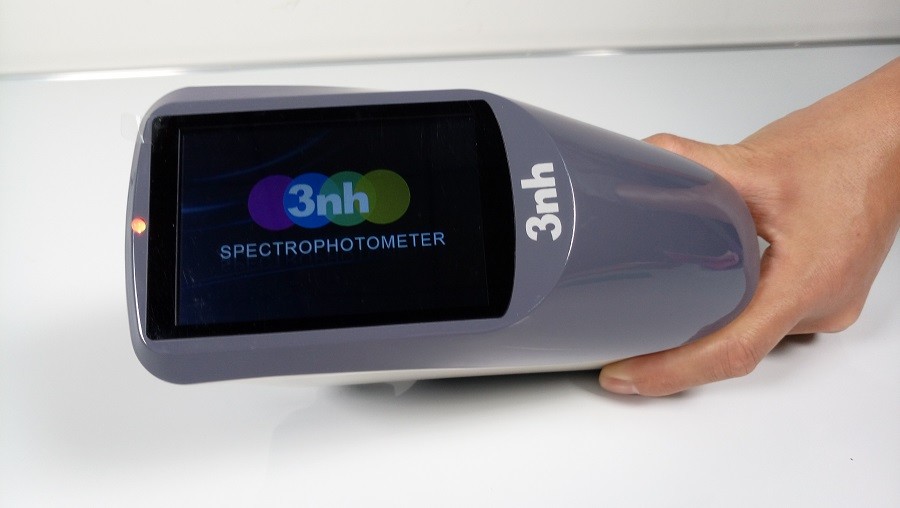

Product Image :
YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 2YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 3YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 4
YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 5
YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 6
YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 7 YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 8 YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 9 YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 10
Customer confirmation :
YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 11
Contact Info. :
YS4580 45/0 Grating Colour Measurement Spectrophotometer 20mm Aperture For Traffic Signs 12
Waiting for your inquiry, any more questions I will reply you within 24 hours
