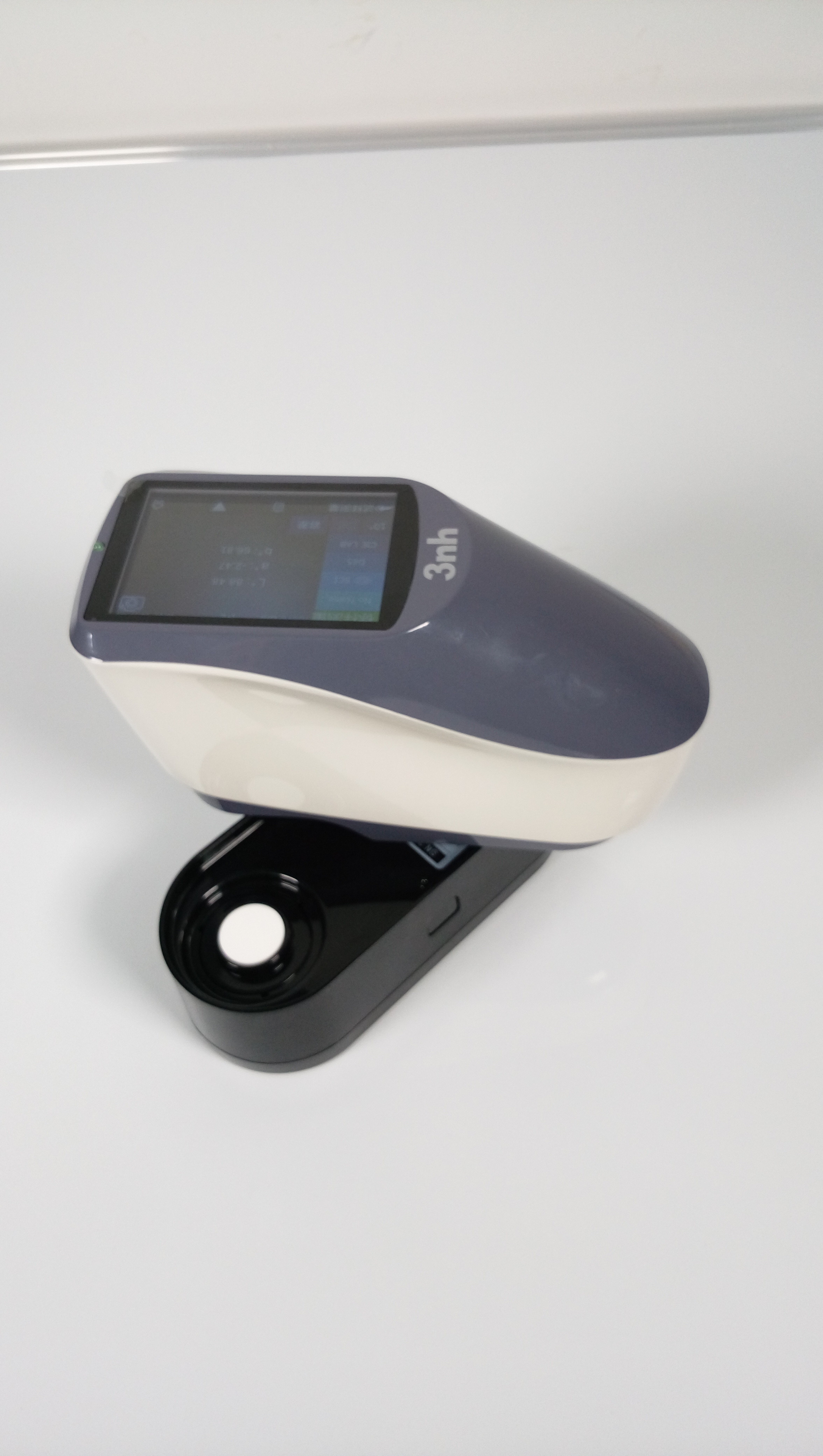

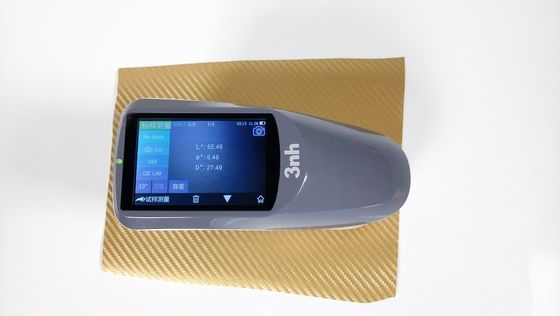

YS4560 45/0 Grating Colour Measurement Spectrophotometer With 8mm/4mm Apertures

  • YS4560 45/0 Grating Colour Measurement Spectrophotometer With 8mm/4mm Apertures
  • YS4560 45/0 Grating Colour Measurement Spectrophotometer With 8mm/4mm Apertures
Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number YS4560
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 45/0(45 Ring-shaped Illumination, Vertical Viewing) SCE/SCI SCE & SCI
Other Colorimetric Index WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, Repeatibility ΔE*≤0.04
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB Measuring Aperture 8mm And 4mm Apertures
High Light

integrating sphere spectrophotometer

,

multi angle spectrophotometer
Leave a Message
Product Description

YS4560 45/0 Grating Spectrophotometer with 8mm and 4mm Apertures



Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833, 3nh new model YS4560 high accuracy grating spectrophotometer adopts 45/0(45 ring-shaped illumination, 0 degree viewing angle), and with two apertures , it is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement.

It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.

45/0 Grating Spectrophotometer
Model YS4560 45/0 Grating Spectrophotometer
Illumination/Observation system 45/0(45 ring-shaped illumination, vertical viewing);
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features High accruacy spectrophotometer is used for accurate analysis and transmission of laboratory color.Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement.
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)

Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 4.0
Data memory Standard 1000 Pcs, Sample 30000 Pcs
Language Chinese,English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.
