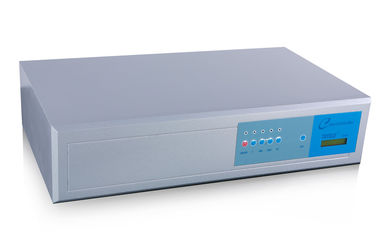

N7 Grey T60 4 Color Checking Light Box With 4 Light Sources D65 F UV TL83 F11
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | T60(4) | Size | 710x405x570mm |
|---|---|---|---|
| Light Sources | D65,TL84,,F,UV | Standard | ASTM D1729, ISO3664, DIN, ANSI And BSI |
| Color | International Grey | OEM | Yes |
| High Light | color matching booth,color matching cabinet |
||
Product Description
International N7 Grey T60(4) color light box from Tilo with 4 light sources D65, F, UV, TL83(F11)
T60(4) Color Light Box - 600mm - 4 Lights
| Model | T60(4) |
| Light source | D65, TL84, UV, F |
| Dimensions(W*D*H) | 710x405x570 mm |
| Inner Size(W*D*H) | 680x385x355 mm |
| Voltage | 220V |
| Weight | 28 kg |
T60(4) color light box
T60(4) color light box can accommodate up to 4 light sources. The consistency of the light sources in all Tilo Color Matching Cabinet gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.
T60(4) color light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching box instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
T60(4) Color Light Box Features:
1. TILO Color light box render color more accurately. With 4 different light sources(D65, TL84, F, UV), which can detect the metamerism.
2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
3. Easy to operate by using individual switches for each light source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternating among light sources.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.
8. The dimension can be made by customized.
Light sources Configuration:
| Model | D65 | TL84 | F | UV | Voltage |
|
T60(4) 4 light sources(220V) |
2 PCS | 2 PCS | 4 PCS | 1 PCS | 220V/50Hz |
|
T60(4) 4 light sources(110V) |
2 PCS | 2 PCS | 4 PCS | 1 PCS | 110V/60Hz |
About Light Sources:
| Light Source | Color Light Bbox Application | Color temperature(k) | Power(W) |
| D65 | International standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
| F | "Sun-setting Light Yellow" incandescent light source(imitation of sunset) | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wavelength:365nm | 20 |
Remarks: Optional tubes D50, D75, TL83, CWF, U30, U35, A
