Modulated Sinusoidal Siemens Star Chart Sineimage Reflectance / Transparent Category YE0253 9x

Place of Origin Shenzhen China
Brand Name 3nh - SineImage
Certification CE
Model Number YE0253
Minimum Order Quantity 1 Pcs
Price Please send inquiry
Packaging Details Safe Package
Delivery Time 1-4 Days
Payment Terms T/T
Supply Ability 1000 Pcs per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand 3nh/Sineimage Category Reflectance/Transparent
Ratio 4:3/16:9 Size 280*157.5mm (Customized)
Name Camera Resolution Test Chart Feature High Accuracy
High Light

camera resolution chart

,

camera lens test chart

Leave a Message
Product Description

Sineimage YE0253 9x Modulated Sinusoidal Siemens Star Chart



Model YE0253 9x
Type Reflectance/Transparent
Format Custom Designs
Ratio 4:3/16:9
Material Film or HD photographic paper

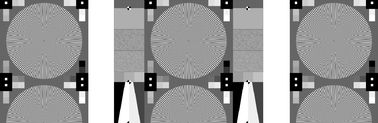

The chart TE253 contains a radially sine modulated Siemens star in the center of the image. In the center of the Siemens star is a focusing target. At the border of the chart there are 16 gray patches located which are used for self-calibration. The corners are showing a bigger black square with a small white square in it. The chart has an outer size of 29.0 cm in width and 26.9 cm in height. The Siemens star has a diameter of 25 cm. Each gray patch has a size of 2x2 cm. The Siemens star is available with 144 and 72 periods

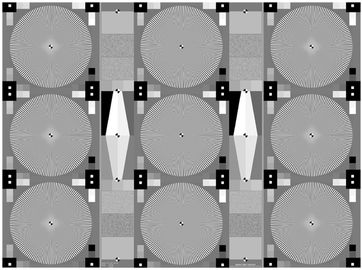

For full field analysis with the iQ-Analyzer nine charts of TE253 are combined in the following way:

Sineimage YE0253 9x Modulated Sinusoidal Siemens Star Chart

This combination can be done in 4:3, 16:9 or any other aspect ratio due to the three stripes the Siemens stars are mounted on.

The maximum resolution of the TE253 A 9x depends on chart size and diameter of the center mark:

Model Size number of cycles diameter center mark min.resolution max.resolution
TE253-L A1066 72 12 mm VGA 2 MP
TE253-S A1066 144 12 mm 2 MP 30 MP
TE253-H A1066 144 5 mm 8 MP 180 MP
TE253-A460-L A460 72 5 mm VGA 2 MP
TE253-A460-H A460 144 5 mm 2 MP 35 MP


Sineimage YE0253 9x Modulated Sinusoidal Siemens Star Chart
