Sineimage ISO-15739 Digital Camera Resolution Chart , Camera Noise Test Chart YE0219
Product Details
| Brand: | Silk/Sineimage | Category: | Reflective/Transparent |
|---|---|---|---|
| Ratio: | 16:9 | Size: | 280*157.5mm (Customized) |
| Name: | Camera Resolution Test Chart | Feature: | High Accuracy |
| Highlight |
camera resolution chart,camera lens test chart |
||
Product Description
Sineimage ISO-15739 digital camera noise test chart YE0219
| Model | YE0219 |
| Type | Reflective/Transparent |
| Format | Custom Designs |
| Ratio | 16:9 |
| Contrast | 20:1, 80:1, 160:1, 1000:1 |

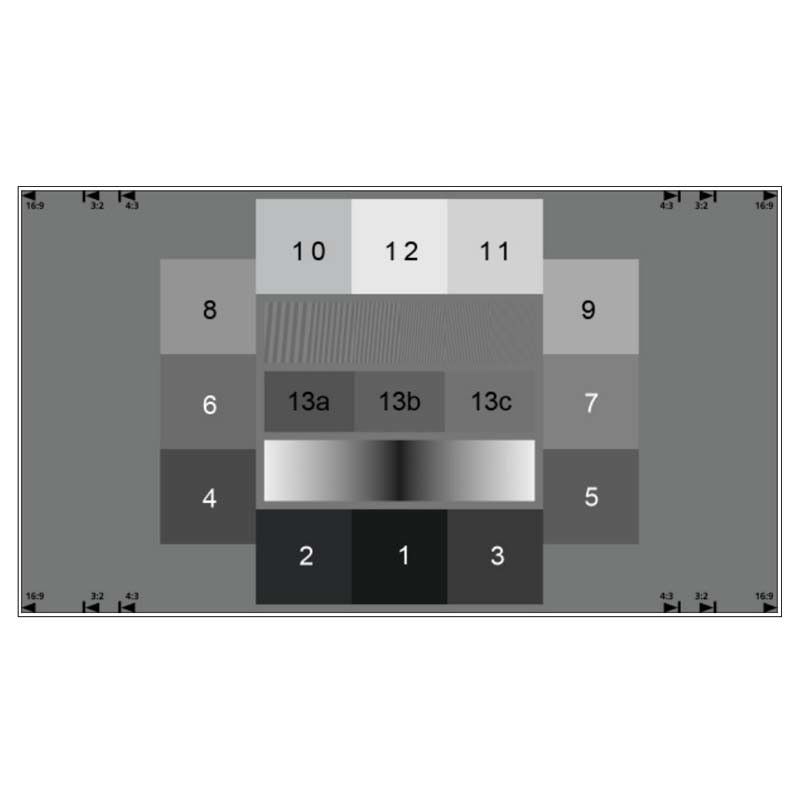

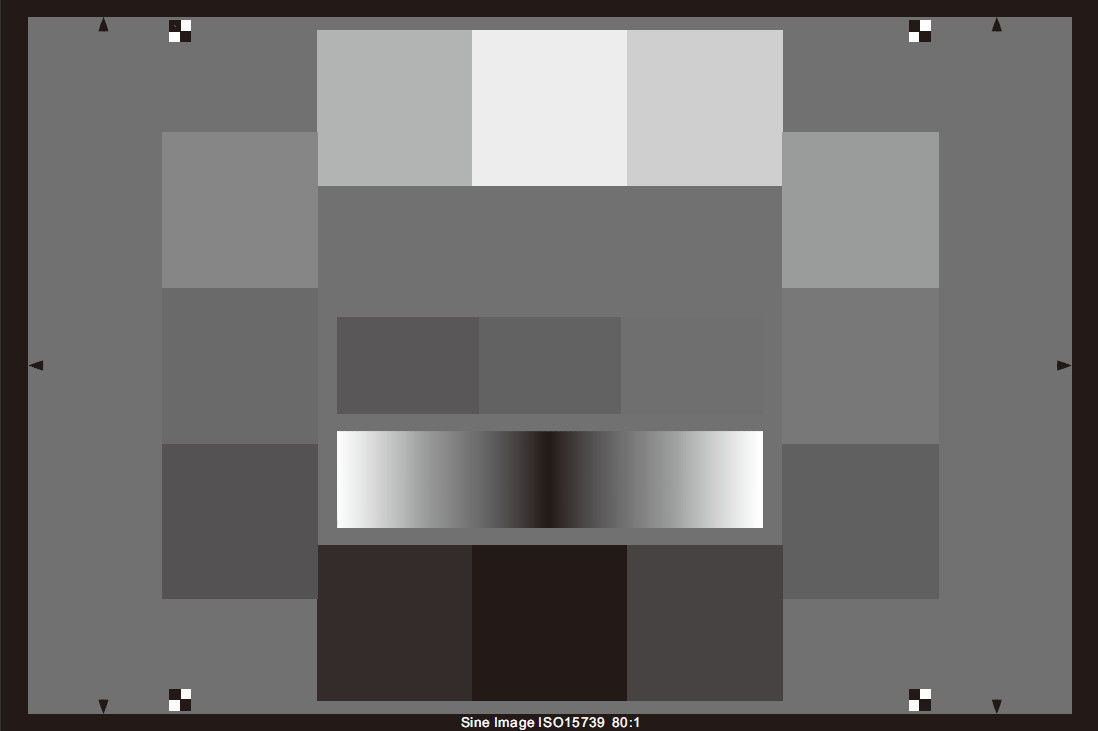

This 15-patch grayscale step test chart has 12 of the patches in a somewhat elliptical arrangement on the periphery and three in an inside row. Nominal patch densities are 0.1, 0.19, 0.3, 0.41, 0.53, 0.66, 0.81, 0.97, 1.17, 1.39, 1.66, and 2.0 for the 12 peripheral patches and 0.77, 0.90, 1.05 for the three central patches. The relatively large patches are especially good for measuring noise. Supported by the Imatest Stepchart, Multicharts, and ColorTest modules.
The standard size has an active area of 11.4x17.1 inches (290x434 mm),printed on 12x18 inch (305x457 mm) luster (semigloss) inkjet media.
| SFRplus test chart | sfr test charts |
|
|
| Texture test charts | grayscale test charts |
|
|
Product Highlights
Sineimage ISO-15739 digital camera noise test chart YE0219 Model YE0219 Type Reflective/Transparent Format Custom Designs Ratio 16:9 Contrast 20:1, 80:1, 160:1, 1000:1 This 15-patch grayscale step test chart has 12 of the patches in a somewhat elliptical arrangement on the periphery and three in an ...
