SineImage YE006 Chessboard Test Chart Reflectance For Checking Geometry / Resolution

  • SineImage YE006 Chessboard Test Chart Reflectance For Checking Geometry / Resolution
  • SineImage YE006 Chessboard Test Chart Reflectance For Checking Geometry / Resolution
Place of Origin Shenzhen China
Brand Name 3nh / Sineimage
Certification CE
Model Number YE006
Minimum Order Quantity 1 Pcs
Price Please send inquiry
Packaging Details Safe Package
Delivery Time 1-4 Days
Payment Terms T/T
Supply Ability 1000 Pcs per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material High Resolution Photographic Paper Types Reflectance/Transparent
Ratio 4:3 Brand 3nh
Application For Checking Geometry And Resolution
High Light

camera resolution chart

,

camera lens test chart
Leave a Message
Product Description
SineImage YE006 CHESSBOARD TEST CHART REFLECTANCE

Model YE006
Type Reflectance/Transparent
Size Custom Designs
Ratio 4:3
Material HD photographic paper/Film

The YE006 test chart is designed for checking geometry and resolution.

Data

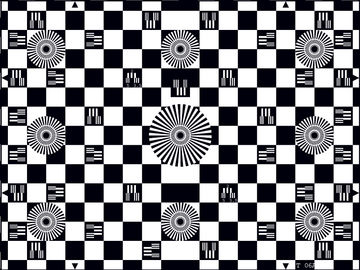

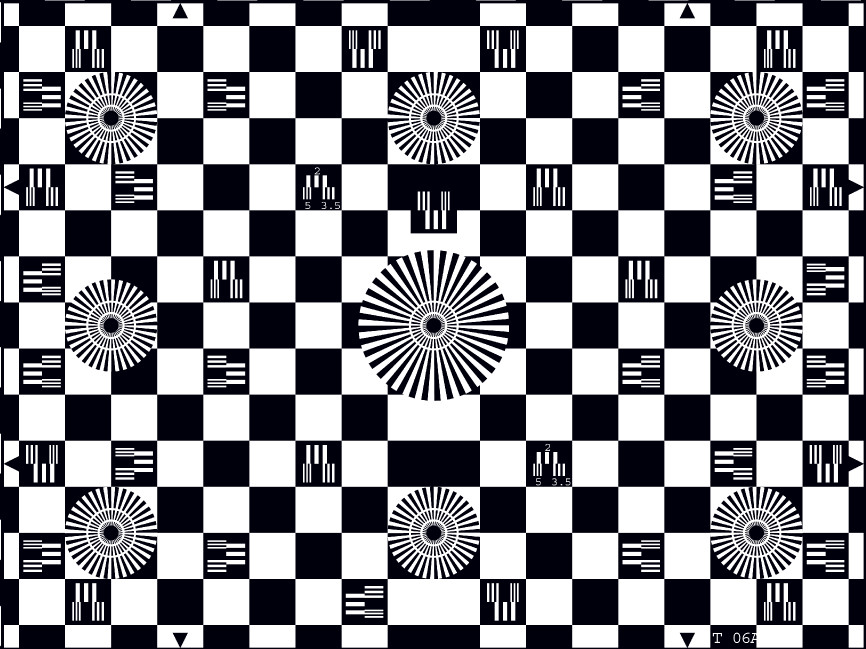

Similar to a chessboard the test chart is composed of 13 x 18 black and white square fields which are surrounded by rectangular at the edges that correspond to the 14/19 grid raster lines of electronic test generators. (The division of the horizontal grid lines of these generators corresponds to 42 lines per complete picture.)
The inner circular lines of the nine sector stars mark a 625-line structure. The larger circular lines mark a structur of 312 lines. Horizontal resp. vertical line rasters are arranged in 33 white fields. They correspond to frequency raster of 2, 3.5 and 5 MHz.

Utilization
• Checking geometry and the congruency of raster, by means of an electronically generated grid, if necessary
• Checking the uniformity of the signal generation.
• Checking resolution and its distribution over the picture area.
• Checking back focal distance.
SineImage YE006 CHESSBOARD TEST CHART REFLECTANCE
