High Precision Transmission Color Test Chart For Checking Texture Of Entire Image Camera

  • High Precision Transmission Color Test Chart For Checking Texture Of Entire Image Camera
  • High Precision Transmission Color Test Chart For Checking Texture Of Entire Image Camera
Place of Origin Shenzhen China
Brand Name 3nh - SineImage
Certification CE
Model Number /
Minimum Order Quantity 1 Pcs
Price Please send inquiry
Packaging Details Safe Package
Delivery Time 1-4 Days
Payment Terms T/T
Supply Ability 1000 Pcs per Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand 3nh/Sineimage Category Reflective/Transparent
Ratio 4:3/16:9 Size Custom Designs
Name Camera Resolution Test Chart Feature High Accuracy
High Light

camera lens test chart

,

camera test chart
Leave a Message
Product Description

Sineimage High Precision Transmission Color Test Chart



Model /
Type Transmission
Size Effective:272*153mm; Chart Size: 310*200mm
Ratio 16:9
Material Filim

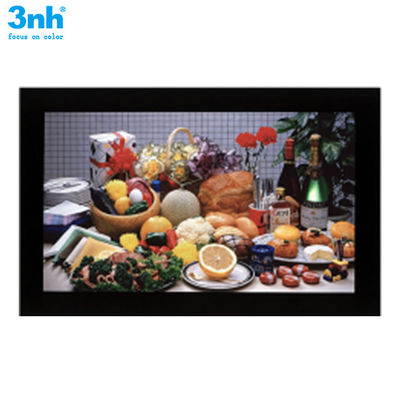

This image is used for checking the texture of the entire image. You should focus attention on the bread rolls, the croquettes or the fabric of napkins,observe sharpness of fruits and slices of ham, check brightness of the top surface of the box in wrapping paper, and evaluate reproducibility of details with cauliflower at highest white level. The trunk of the plant and the shades of plates in the image are useful to adjust the darkness of a screen.

The piled paper napkins on the left of the image provide an indication of vertical resolution because the part of the image consists of 700～800TVof horizontal wedges and inter-line flicker is likely to become obvious here. The images of pattern of melon and piled plates show whether pairing state happens and things related to interlace scan. The egg is effective to find ghost and reflection caused by matching problem of delay line, also red carnations and the blue can are suitable to check resolution-degradation and waveform distortion, which happen when color-difference signal is band limited, in saturation area.
