Dot Pattern Resolution Test Chart Sineimage YE0262 For Testing Chromatic Aberration
![](/images/productalert.jpg)
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Brand | 3nh/Sineimage | Category | Reflective/Transparent |
---|---|---|---|
Ratio | 4:3/16:9 | Size | Custom Designs |
Name | Camera Resolution Test Chart | Feature | High Accuracy |
High Light | camera resolution chart,camera lens test chart |
Product Description

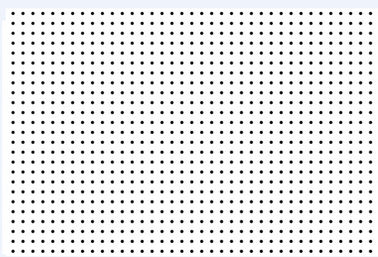

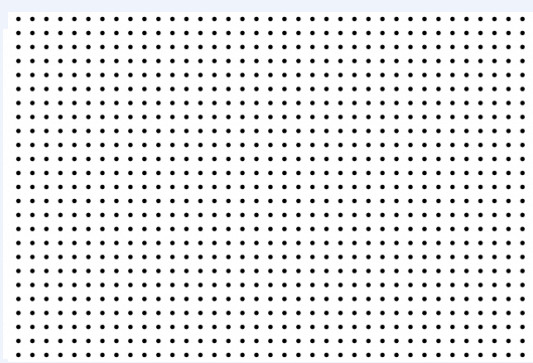

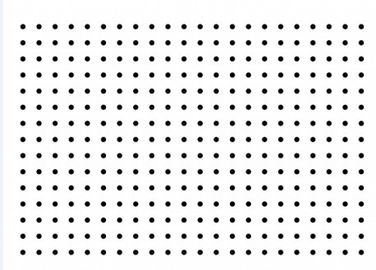

Dot Pattern Test Chart
Dot Pattern Test Chart is for testing chromatic aberration and SMIA TV Distortion.
The medium chart is sized 24" x 36" The XL chart is sized 44" x 66"
For the medium sized chart, the dot size is 0.498" in diameter for the large dots (15 high), and 0.299" in diameter for the smaller dots (25 high)
For the XL sized chart, the dot size is 0.924" for the large dots (15 high) and 0.555" in diameter for the smaller dots (25 high)
SKU | Size | Vertical Dots | Total Dimensions | Dot Diameter | Dot Spacing (center-center) |
DOTM15 | Medium | 15 | 24" x 36" / 61cm x 91.4cm | 0.498" / 1.26cm | 1.555" / 3.95cm |
DOTM25 | Medium | 25 | 24" x 36" / 61cm x 91.4cm | 0.299" / 0.76cm | 0.934" / 2.37cm |
DOTL15 | Large | 15 | 44" x 66" / 111.8cm x 167.6cm | 0.924" / 2.34cm | 2.89" / 7.3cm |
DOTL25 | Large | 25 | 44" x 66" / 111.8cm x 167.6cm | 0.555" / 1.41cm | 1.73" / 4.4cm |

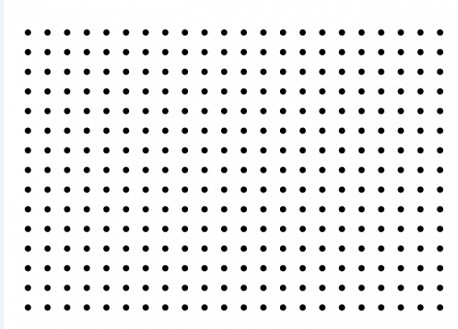

Dot Pattern Test Chart DOTM15

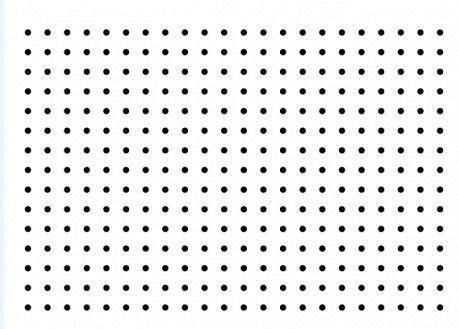

Dot Pattern Test Chart DOTM25
