Accurate Color Reader Handheld Colorimeter 8mm Aperture Caliber Spectrophotometer
Product Details
| Model: | NR200 | Aperture: | 8mm |
|---|---|---|---|
| Calibration: | Manual | Light Source Device: | LED Blue Light Excitation |
| Light Source: | D65 | Color Space: | CIE-Lab, CIE- XYZ, CIE-LabCH |
| SCE/SCI: | SCI | Optional Accessory: | Miniature Thermal Printer, Powder Test Box |
| Highlight |
portable spectrophotometer colorimeter,digital color meter |
||
Product Description

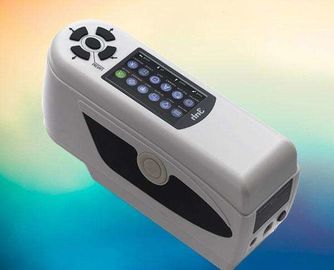

High accuracy 8mm aperture NR200 precision color testing portable colorimeter
NR200 is another mainstream brand colorimeter introduced by Silk which has synthesized the advantages of ten more traditional imported colorimeters and has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!
1. Leading Humanity Design and Convenient Operation
One-touch access to measurement interface
Structure design in line with ergonomics
East-to-use operating interface
2. Stable Measurement Performance
The repeatability E is 0.08.
Portable structure design which is more conductive to keeping the instrument stable when using.
3. Convenient and Fast Locating
Illumination locating is a fast, simple and convenient locating which created by Silk.
4. PC Software—Realize More Function Expansion
Silk has the intellectual property of PC software. The corresponding software serial number and password protection are configured in Silk colorimeter.
Be able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
5. Advanced Power Management Design
Silk is the first enterprise using high capacity Li-ion battery in colorimeter.
Silk Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.
Specifications:
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ8mm |
| Detector | Silicon photoelectric diode |
| Color Space | CIEL*a*b*C*h* CIEL*a*b* |
| Color Difference Formula | E*ab L*a*b E*C*h |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.50 E*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability |
Standard deviation within E*ab 0.08 Average of 30 measurements of standard white plate |
| Weight | 500g |
| Dimension | 205×70×100 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 3 years, more than 1 million measurements |
| Charging Time | 2 hours (First time 8 hours--100% electricity) |
| Measurement Times Before Recharging | More than 3000 times |
| Operating Temperature/Humidity Range | -10~40℃, relative humidity 0~85% with no condensation |
| Data Interface | USB |
| Optional Accessory | Miniature thermal printer, Powder Test Box |
FAQ:
Q: Can you do OEM service ?
A: As a professional company focus on color analysis with over 21 years,
Silk also offers a Private Labeling Program to provide high quality lab supplies at lower prices.
If you need further information regarding our OEM or Private Label programs, please contact us freely.
Q: How long is your delivery time?
A: Usually, the machine will be send out as soon as we got the payment.
Q: How about your quality warranty ?
A: Normally all of our products are supplied with a warranty of 12 Months from the date of shipment.
Q: What is your terms of payment ?
A: Payment 100% T/T, Western Union, L/C, Trade Assurance, Credit Card ect. in advance ,before shippment.
If you have another question, pls feel free to contact us as below.
