400-700nm Wavelength Handheld Color Spectrodensitometer YD5010 CMYK Density Measurement

  • 400-700nm Wavelength Handheld Color Spectrodensitometer YD5010 CMYK Density Measurement
Place of Origin China
Brand Name 3nh
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number YD5010
Minimum Order Quantity 1pc
Price USD3000/PC
Packaging Details Standard Export Package
Delivery Time 2 work days
Payment Terms T/T
Supply Ability 1000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Geometry 45/0 Spectral Separation Device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor Wavelength Range 400-700nm
Density Standards ISO Status A, E, I, T Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Size(L*W*H) 184*77*105mm
High Light

hunter lab spectrophotometer

,

color measurement instruments
Leave a Message
Product Description

YD5010 CMYK Density Measurement Met Handheld Color Spectrodensitometer with Low Price





Applications



3NH-YD5010 portable spectrodensitometer, widely used in ink printing, film processing, textile printing and dyeing, plastic electronics and other industries color measurement and quality control, especially suitable for measurement and quality control of optical density, dot gain and other indicators in ink printing.



1. Product Profile



YD5010 portable spectro-densitometer is a high-end precise instrument for the measurement of printing optical density and colors, which is designed to be applied in industries like printing, packaging and ink, film process, etc.



2. Detailed Technical Parameter / Specification Form



Technical Parameter Items YD5010 Portable Spectro-densitometer
Product Category Optical Density Measurement Instrument
Product Name Portable Spectro-densitometer
Application For the measurement of optical density and colors in industries like printing, packaging and ink, film, plastics and electronics, etc.
Optical Geometry

45°/0

Conform to standards ISO 5-4, CIE No.15
Measuring Apertures Customize One Aperture from: ∅2mm / ∅4mm / ∅8mm
Measurement Conditions

Conform to the measurement conditions of ISO 13655

M0 (CIE Light Source A)

M1 (CIE Light Source D50)

M2 (Illuminance Excluding UV)

M3 (M2 + Polarization Filter)
Density Standards ISO Status T, E, A, I
Density Index Density Value, Density Difference, Dot Area, Dot Gain, Overprint, Printing Characteristics, Printing Contrast, Chromaticity Difference, Greyscale.
Color Spaces CIE LAB, XYZ, Yxy, LCh.
Color Difference Formulas ΔE*ab, ΔE*94, ΔE*00
Repeatability Error

For Color: ΔE*Lab≤0.04

For Density: Within 0.01D
Inter-instrument Error For Color: ΔE*Lab≤0.2
Other Colorimetric Index Non
Information Displayed Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset/Deviation Direction
Viewing Angle 2° & 10°
Illuminating Lamps Combined LED Lamps, UV Lamps
Lamps Life-span 5 Years, more than 3 Million times of measurements.
Wavelength Range 400nm - 700nm
Wavelength Pitch 10nm
Semiband Width 10nm
Reflectance Range 0∼200%
Illuminants D65, A, C, D50, D55, D75, F2(CWF), F7(DLF), F11(TL84), F12(TL83/U30), UV.
UV Light Source Yes. Include UV / Exclude UV.
Sensor 256 Image Element Double Array CMOS Image Sensor
Spectroscope Concave Grating
Location Method By Locating Plate
Measurement Time 1.5s
Data Storage Capacity 10000 pcs of data
Data Transmission Port USB
PC Terminal Software SQCX (for free)
Display Screen 3.5 inches TFT Capacitance Screen-touch Display
Language Built-in English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify)
Power Supply Built-in Rechargeable Battery, Power Adapter
Working Environment Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)
Storage Environment Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)
Standard Accessories White and Black Calibration Board, Customized Aperture, Power Adapter, USB Cable, PC Software SQCX, Bluetooth Adapter, Polarization Filter, Locating Plate, User Guide.
Optional Accessories Mini Thermal Printer
Weight 600g
Dimension 184*77*105mm



3. Detailed Introduction to Instrument

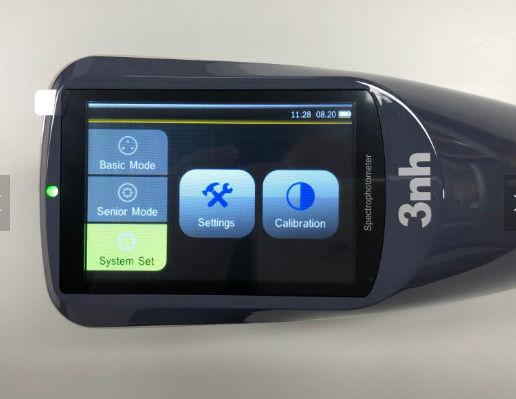

3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive density and colorimetric indexes in one screen, making your operation more convenient and freer, checking the information you want very soon.

3.2. Dual Array 256 Image Element CMOS detector, making it have a high resolution and more sensitive to density and colors.

3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.

3.4. UV light source, can measure fluorescent colors more accurately.






Delivery Time
1-2 working days after payment received.
Warranty
We warrant to you that any Product purchased from us will, on delivery and for the following 1 - 2 years (depending on the Product purchased), conform in all material respects with its description, be of satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied.



  Functionality YD5010 YD5050
Density Index CMYK,Spot Colors CMYK and Spot CMYK and Spot
Density State T,E,A,I T,E,A,I
Density Trend √ √
Densitometry √ √
CMY Balance √ √
Dot Area √ √
Dot Gain √ √
Overprint √ √
Printing Characteristics √ √
Printing Contrast √ √
Tone Errors and Gray Patch √ √
Printing Plate √ √
Chromaticity index L*a*b*,L*C*h° √ √
dE*76,dE*94,dE*00,dECMC √ √
A,C,D50,D55,D65,D75,F2,F7,F11,F12 √ √
XYZ,Yxy √ √
Special Reflection Graph √ √
Paper Indices   √
Opacity   √
de Trend   √
Metamerism   √
Absolute Color Strength   √
Relative Color Strength   √
Best Match
QC Function Paper QC
Best Match Table
Ink QC
TVI Table
Gray Balance QC
  G7,PSO,ISO,JapaColor
Custom Work Template
Color Library Pantone PMS+
PantoneLIVE
Custom color library
Security Security Settings
Multiple User Profiles
Other Scan Mode
Spectral Data Derivation   √
Pass or Failure √ √
Averaging   √
Sample Storage
Standard
Interface USB √ √
Bluetooth   √
Software   √ √





400-700nm Wavelength Handheld Color Spectrodensitometer YD5010 CMYK Density Measurement 0





Comparasion with Other brands



For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.



All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.



3nh Instrument Description Similar Models
YS6060 Spectrophotometer d/8°;d/0° CI7800,CM3600A
YS4560 Spectrophotometer 45°/0 BYK 6801,CM2500C
YS4510 Spectrophotometer 45°/0 CM2500C,CS600C
YD5050 Spectrophotometer 45°/0 Exact advance
YD5010 Spectrophotometer 45°/0 Exact basic, basic density meter
YS3060 Spectrophotometer d/8° X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d
YS3010 Spectrophotometer d/8° X-rite Ci60; MINOLTA CM-2300d
NS800 Spectrophotometer 45°/0 BYK 6801
NR60CP Colorimeter 8°/d MINOLTA CR-10 plus
NHG268 Gloss Meter 20°, 60°, 85° gloss BYK 4563
NHG60 Gloss Meter 60° gloss BYK 4561
T90-7 Light Cabinet 7 Illuminants X-rite SpectraLight QC



Frequently Asked Questions


1. Can the YD5010 spectrophotometer be equivalent to any models of world famous brands?
Answer: Yes, our YD5010 is equivalent to the X-rite Exact densitometer



2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!



3. What's your main market?
Answer: We sell to the global market.



4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.



5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.



6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
