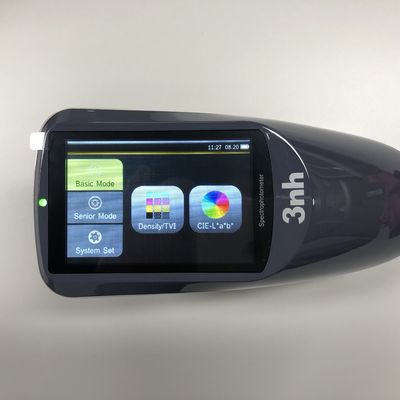

CMYK LAB Color Measurement 3nh Spectrophotometer 45/0 3nh YD5050 Concave Grating

Place of Origin China
Brand Name 3nh
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number YD5050
Minimum Order Quantity 1pc
Price USD3000/PC
Packaging Details Standard Export Package
Delivery Time 2 work days
Payment Terms T/T
Supply Ability 1000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Geometry 45/0 Spectral Separation Device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor Wavelength Range 400-700nm
Density Standards ISO Status A, E, I, T Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Size(L*W*H) 184*77*105mm
High Light

hunter lab spectrophotometer

,

color measurement instruments

Leave a Message
Product Description

Color Densitometer 45/0 Spectrophotometer 3nh YD5050 for CMYK LAB Color Measurement





1. Detailed Technical Parameter / Specification Form


Grating Spectrophotometer Densitometer
Model YD5050 Spectrophotometer Densitometer
Measurement Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle);, ISO 5-4,CIE No.15
Features high accuracy spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Measurement Conditions Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density Standards ISO Status A, E, I, T
Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray scale, density scanning
Measurement aperture Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Color Spaces CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
MI (Metamerism Index),Opacity,
Observer Angle 2°/10°
Illuminants D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Measurement Time About 1.5s
Repeatability Density: Within 0.01 D
Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 4.0
Data memory 20000 pcs
Language
Simplified Chinese, English, Traditional Chinese
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover.Polarization filter box
Optional Accessory Micro Printer,Locating Plate
Notes: The specifications are subject to change without notice.





2.Product Profile



YD5010 portable spectro-densitometer is a high-end precise instrument for the measurement of printing optical density and colors, which is designed to be applied in industries like printing, packaging and ink, film process, etc.





3. Detailed Introduction to Instrument



3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing more comprehensive density and colorimetric indexes in one screen, making your operation more convenient and freer, checking the information you want very soon.

3.2. Dual Array 256 Image Element CMOS detector, making it have a high resolution and more sensitive to density and colors.

3.3. Long life-span stable LED & UV LED lamps which can generate different kinds of light sources and color temperatures more accurately. LED lamps are famous for their durablility which makes the instrument more stable and durable.

3.4. UV light source, can measure fluorescent colors more accurately.





3.5. Pass/Fail test result indication, help you to decide whether the color of the sample meets the requirements very promptly.

3.6. Color Offset/Deviation Direction indication between the standards and the samples which is definitely helpful for you to figure out the wanted color formulation.



3.7. All the parameters about printing: CMYK, Density, Dot Area, Dot Gain, etc. One instrument meets all requirements.

3.8. Optics 45°/0 Geometry, the optical geometry which are widely adopted in color measuring instruments. Reflective 45°/0 Geometry is for measuring colors of non-transparent targets.

3.9. Customizable measuring apertures: ∅2mm or ∅4mm or ∅8mm, different choice according to different application situations.

3.10. Multiple kinds of Color Spaces, Color Difference Formulas and Colorimetric Indexes, meet different requirements for color measurement and color analysis.

3.11. Include multiple kinds of light source types, can be applied to most of the color measurement situations.

3.12. Two color measurement modes: Quality Mode and Average Mode, meet more color management situations.

3.13. Powerful data management functions, you can search and check records, rename and delete records, input standards.

3.14. Configured with a PC terminal software SQCX, more extended powerful functions for color data management can definitely facilitate your color management work.



3.15. USB data port, implement data transmission more convenient and prompt.





Applications

3NH-YD5050 portable spectrodensitometer, widely used in ink printing, film processing, textile printing and dyeing, plastic electronics and other industries color measurement and quality control, especially suitable for measurement and quality control of optical density, dot gain and other indicators in ink printing.


Delivery Time
1-2 working days after payment received.
Warranty
We warrant to you that any Product purchased from us will, on delivery and for the following 1 - 2 years (depending on the Product purchased), conform in all material respects with its description, be of satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied.



  Functionality YD5010 YD5050
Density Index CMYK,Spot Colors CMYK and Spot CMYK and Spot
Density State T,E,A,I T,E,A,I
Density Trend
Densitometry
CMY Balance
Dot Area
Dot Gain
Overprint
Printing Characteristics
Printing Contrast
Tone Errors and Gray Patch
Printing Plate
Chromaticity index L*a*b*,L*C*h°
dE*76,dE*94,dE*00,dECMC
A,C,D50,D55,D65,D75,F2,F7,F11,F12
XYZ,Yxy
Special Reflection Graph
Paper Indices
Opacity
de Trend
Metamerism
Absolute Color Strength
Relative Color Strength
Best Match
QC Function Paper QC
Best Match Table
Ink QC
TVI Table
Gray Balance QC
  G7,PSO,ISO,JapaColor
Custom Work Template
Color Library Pantone PMS+
PantoneLIVE
Custom color library
Security Security Settings
Multiple User Profiles
Other Scan Mode
Spectral Data Derivation
Pass or Failure
Averaging
Sample Storage
Standard
Interface USB
Bluetooth
Software



Comparasion with Other brands



For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.



All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.



3nh Instrument Description Similar Models
YS6060 Spectrophotometer d/8°;d/0° CI7800,CM3600A
YS4560 Spectrophotometer 45°/0 BYK 6801,CM2500C
YS4510 Spectrophotometer 45°/0 CM2500C,CS600C
YD5050 Spectrophotometer 45°/0 Exact advance
YD5010 Spectrophotometer 45°/0 Exact basic, basic density meter
YS3060 Spectrophotometer d/8° X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d
YS3010 Spectrophotometer d/8° X-rite Ci60; MINOLTA CM-2300d
NS800 Spectrophotometer 45°/0 BYK 6801
NR60CP Colorimeter 8°/d MINOLTA CR-10 plus
NHG268 Gloss Meter 20°, 60°, 85° gloss BYK 4563
NHG60 Gloss Meter 60° gloss BYK 4561
T90-7 Light Cabinet 7 Illuminants X-rite SpectraLight QC



Frequently Asked Questions


1. Can the YD5050 spectrophotometer be equivalent to any models of world famous brands?
Answer: Yes, our YD5050 is equivalent to the X-rite Exact densitometer



2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!



3. What's your main market?
Answer: We sell to the global market.



4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.



5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.



6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
