Product Details:

Place of Origin: Shenzhen,China
Brand Name: TILO
Certification: CE,ISO,RoHs,etc
Model Number: P60+

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Wooden Exports Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal,etc.
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: P60+ Light Sources: D65,TL84,CWF,F,UV,TL83
Standard: ASTM D1729, ISO3664, DIN, ANSI And BSI OEM: Yes
Weight: 19.5KG Internal Space Size: 665×490×360mm
High Light:

colour matching cabinet


pantone color viewing light booth

Product Description

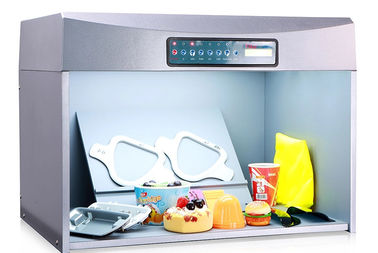

Durable Color Checking Light Box , Color Matching Booth CE / ISO Approval

Color controller tilo color light box for Color Matching Color proofing Color matching light box




Color Assessment Cabinet, used for color matching or assessment of all industries and Applications where there is a need to maintain color consistency and quality. E.g. Automotive, Ceramics, Cosmetics, Foodstuffs, Footwear, Furniture, knitwear, Leather, Ophthalmic, Dyeing, Packaging, Printing, Inks and Textile.

It is very important to use standard light source to check color difference in night duty.
Besides D65 light source, TL84, CWF, UV, and F/A light sources are available in this color light box for metamerism effect.


Color Assessment Cabinet Specifications


Color Assessment Cabinet Provide several light sources, i.e. D65, TL84, CWF, UV, F/A

Microcomputer to switch between the light sources quickly.

Super timing function to record use time of each light source separately.

All fittings are improved, ensuring quality.

1. Product Profile

P60+ Color Assessment Light Cabinet is used for providing a standard evironment with the standard light sources for comparing the color differences between two samples with human eyes, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, pharmacy, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry. In one word, P60+ color assessment light cabinet can be perfectly applied in any place that requires color check.

2. Specification Form

Technical Parameter Item P60+ Color Assessment Light Cabinet
Product Category Color Checking Equipment
Product Name Color Matching Light Cabinet, Color Comparison Light Box
Application For the comparison and assessment of the difference of surface colors of those products like plastics, metals, textiles, papers, wood, tiles, etc. with human eyes under a standard light source environment.
Light Source Types 6 Kinds of Light Sources: D65, TL84, CWF, F, UV, TL83
D65 6500K, 20W, 2pcs of light tubes
TL84 4000K, 18W, 2pcs of light tubes
CWF 4150K, 18W, 2pcs of light tubes
F 2700K, 40W, 4pcs of light bulbs
UV 365nm, 18W, 1pcs of light tubes
TL83 3000K, 18W, 2pcs of light tubes
Internal Space Size 665×490×360mm
Dimension 695×552×502mm
Weight 19.5KG
Material Engineering Plastics + Wood
Switch Button Every switch button is with a timer and a counter



3. P60+ Color light box Features:


Ø TILO Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.

Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized.


Order Model Configured Light Sources Weight Dimension(mm)
P60+ Color Light Box D65,TL84,F,UV,CWF, TL83 30kg 695x552x502


About Light Sources:


Light Source Color Viewing Booths Application Color Temperature(K) Power(W)
D65 International Standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe,Japan and China 4000 18
CWF Cool White Fluorescent American Standard 4150 18
F/A "Sun-set Light Yellow" Incandescent Light Source 2700 40
UV Viewing under ultraviolet light to detect and evaluate optical brightness or fluorescent pigments. Wavelength: 365nm 20
U30 Warm White Fluorescent, American Standard 3000 18


4. Company Profile

P60+ Color Light Cabinet was developed and manufactured independently by Shenzhen 3nh/ThreeNH-TILO Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998. We warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.
