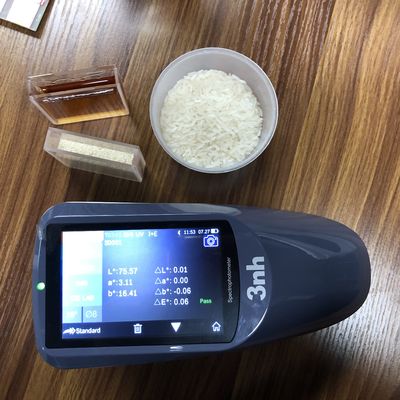

YS3020 Hunter Lab Spectrophotometer Aperture 8mm/4mm UV Light To Replace Ci62 Xrite

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number YS3020
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month
Product Details
Optical Geometry D/8° SCE/SCI SCE & SCI
UV Light Source Yes Repeatibility ΔE*≤0.05
Inter-instrument Agreement ΔE*≤0.2 Measuring Aperture 8mm & 4mm & 1×3mm
High Light

TUV LCD Hunter Lab Spectrophotometer

,

Hunter Lab Spectrophotometer Concave Grating

,

UV Light Portable Color Spectrophotometer

Leave a Message
Product Description

YS3020 Optional Aperture 8mm or 4mm or 1*3mm small aperture portable spectrophotometer to replace ci62 xrite
One of our customers chose our 3nh brand YS3020 spectrophotometer for TV attachments. Because this TV attachments are very thin, so they have to use 1*3mm aperture to measure its color difference. The test result is very good.
If you need to check computer machine box or any aliminum plate or plastic board color difference, please consider our 3nh brand and now it is stronger and more popular all over the world. In the future , it will replace some famous brands.
Here are YS3020 spectrophotometer specification. Welcome to order from 3nh.
Brief Introduction
1. Spectrophotometer YS3020 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS3020 features the precise measurement and the complete functions.
3. It can be configured with three measuring apertures, 8mm, 4mm and 1×3mm. The 4mm and 1×3mm apertures are for the color measurement of small targets.
4. The PC terminal software SQCX provides powerful data management functions.
5. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
6. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
7. YS3060 can be connected to a computer via USB cable or Bluetooth to do data management.
8. A built-in camera to help to aim the targets to be measured.



Application Introduction
YS3020 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3020 Spectrophotometer is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. YS3020 features the special small measuring aperture 1*3mm rectangular aperture which makes it can measure those very small targets and curved surfaces.

Technical Specification


ParametersSpectrophotometer YS3020
Optical Geometryd/8°
RepeatibilityΔE*≤0.05
Inter-instrument AgreementΔE*≤0.2
Measuring Aperture8mm & 4mm & 1×3mm
SCE/SCISCE&SCI
UV Light SourceYes
Integrating Sphere Size48mm
Wavelength Range400nm - 700nm
Wavelength Pitch10nm
Halfband Width10nm
Reflectance Range0 - 200%
IlluminantD65, A, C, D50, D55, D75, F2, F7, F11
Observer Angle2° & 10°
Color SpaceCIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Displayed DataSpectrogram/Values, Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Other Colorimetric Index

WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity

Light Source DeviceCombined LED Lamp & UV Lamp
Light Source Lifespan5 years, More than 1.6 million measurements
Sensor256 Image Element Double Array CMOS Image Sensor
Spectral DeviceConcave Grating
Aiming MethodCamera Locating
Measurement ModeSingle Measurement & Average Measurement
Storage CapacityStandard: 1000 Pcs
Sample: 28000 Pcs (One piece can include SCE&SCI)
Data PortUSB & Bluetooth
Screen3.5" LCD Touch Screen
BatteryBuilt-in Li-ion Battery, 5000 Measurements within 8 hours
Size184*77*105mm
Weight600g
LanguageEnglish & Chinese & Spanish
Working EnvironmentTemperature: 0~40℃, Humidity: 0~85% (No Condensation)
Storage EnvironmentTemperature: -20~50℃, Humidity: 0~85% (No Condensation)
Standard AccessoryPower Adapter, USB Cable, Built-in Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cap
Optional AccessoryMicro Printer, Powder Test Box, Universal Test Component

















































Frequently Asked Questions
1. Which models are the equivalent models to YS3020?
Answer: KONICA MINOLTA CM-700d is the equivalent model to 3nh YS3020.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.


YS3020 spectrophotometer 1*3mm aperture for TV attachments
YS3020 spectrophotometer 1*3mm aperture for TV attachments
YS3020 spectrophotometer 1*3mm aperture for TV attachments
