CMYK Density Hunter Lab Spectrophotometer YD5010 CIE 45/0 Concave Grating

45/0 CMYK Lab density Measurement Color Spectrodensitometer YD5010 CIE Lab spectrophotometer

Brief Introduce:

3nh launched new model YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1,M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.

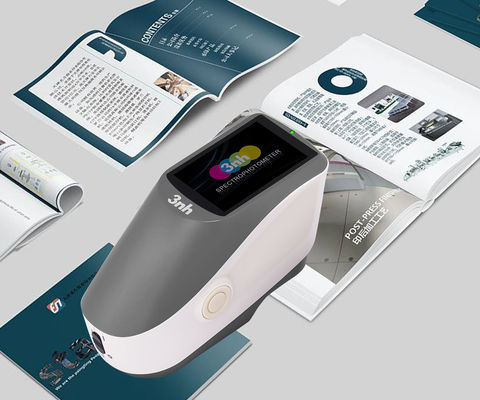

YD5010-Standard Grating Spectrodensitometer

Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1,M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.

Product Features

1.Perfect combination of the beautiful appearance and the ergonomic structure design;

2.Combined LED light sources with long life and low power consumption, including UV light;

3.Switchable apertures: Φ2/4/8/20mm, adapt to more samples;

4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；

6.Two standard observer angles: 2/10, multiple light source modes and color systems;

7.USB mode is widely useful;

8.Large-capacity storage space, over 10,000 test data;

9.Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.

Packing List

1 x Spectrodensitometer YD5010
1 x Li-Ion battery (installed)
1 x White and Black Calibration Board
1 x Power Adapter
1 x USB cable
1 x Protective Cover
1 x Polarization filter box,

1 x Locating Plate

1 x Software download from the website
1 x Aluminum carry case

Comparasion with Other brands

For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.

All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.

Frequently Asked Questions

1. Can the YD5010 spectrophotometer be equivalent to any models of world famous brands?
Answer: Yes, our YD5010 is equivalent to the X-rite Exact densitometer

2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
