Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,RoHs,ISO,ASTM etc.
Model Number: YS6060

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T
Supply Ability: 100pcs/month
Get Best Price Contact Now

Detail Information

Model: YS6060 Screen: 7inch TFT Capacitive Touch-screen
Wavelength: 360nm-780nm Wavelength Width: 10nm
Integrating Sphere Size: 154mm Light Source: D65,A,C,D50,D75,D55,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
Language: English,Chinese Observer Angle: 2 Degree & 8 Degree
Size: 370*300*200mm Weight: 16kg
High Light:

hunter lab spectrophotometer

,

color measurement instruments

Product Description

Economical Price Pt-Co Opacity Haze Transmit benchtop uv grating spectrophotometer YS6060 Color detector



Brief Introduce:



YS6060 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property. YS6060 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry (including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6060 ideal for color analysis within R&D and laboratory environments.



Application Industry:



YS6060 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.



Features:

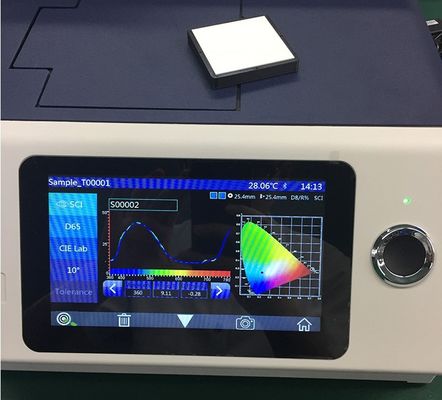

1, High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Bluetooth 2.1; Concave Grating.
2, Double Array 256 Image Element CMOS Sensor; Long life-span stable LED, UV LED and xenon lamp.
3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission.
4, Auto identify measuring aperture. Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures.
5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision.
6, Wavelength range 360nm – 780nm. Built-in 400nm cut off/420nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement.
7, Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.
8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement.
9, Multiple accessories, sample holders, fixation clamp, suitable to more working condition.
10, Big capacity data storage, for 40000 pieces test result.
11, Built-in camera locating.
12, More powerful extended functions at the PC software.



Technical Specification:



Specification YS6060
Optical Geometry Reflectance: d/8 (SCI⪰ Include UV/Exclude UV)
Transmittance: d/0 (SCI⪰ Include UV/Exclude UV)
Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Specular Component Reflectance: SCI&SCE
Transmittance: SCI&SCE
Integrating Sphere Size Φ 154mm
Sensor 256 Image Element Double Array CMOS Image Sensor
Light Source Device 360nm-780nm Combined LED Lamp, 400nm cut-off, 420nm cut-off, UV Lamp
Illuminants D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Spectrophotometric Mode Concave Grating
Observer Angle 2° & 10°
Repeatability Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Φ25.4mm/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Wavelength Range 360-780nm
Wavelength Pitch 10nm
Semiband Width 10nm
Reflectance Range 0~200%
Measuring Aperture Reflective: Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive: Φ30mm/Φ25.4mm;
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99
Displayed Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Colorimetric Index WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, Pt-Co Index, 555 Index,
PC Terminal Software SQCX
Data Storage Capacity Standard: 5000 Pcs; Sample: 40000 Pcs.
(One PCS can include both SCI and SCE)
Data Port USB & Bluetooth
Locating Method Camera Locating
Measurement Mode Single Measurement & Average Measurement
Screen 7" TFT Capacitive Screen-touch Display
Light Source Device Life 5 years, more than 3 million times measurements.
Power Supply DC 24V, 3A Power Adapter
Size 370×300×200mm
Weight 10kg
Language English & Chinese
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation)
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory White Calibration Board, Black Clavity, Sample Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software, Transmissive Test Clamp Component
Optional Accessory Micro-printer



Q & A:



1. Whether 3nh are the original manufaturer for YS6060 spectrophotometer or not?

  Yes, we are the an company with over 21 years experience in color analysis machine.



2.What's your MOQ and for more order, is there any discount?

  The MOQ for YS6060 is 1pc, more order more discount.



3. Are you welcome OEM and wholesale?

  Since from 1998, Shenzhen 3nh Technology Co.,Ltd already have partner around the world, we welcome OEM, we have special price for wholesale if you need resell our machine.



4. How about the aftersale service?

   Two years warranty for all of our machine.



5. What's about the lifetime for the machine?

  The lifetime for the machine is about 8-10 years. Uv Grating 3nh Spectrophotometer YS6060 Color Detector Pt-Co Opacity Haze Transmit Benchtop 0Uv Grating 3nh Spectrophotometer YS6060 Color Detector Pt-Co Opacity Haze Transmit Benchtop 1Uv Grating 3nh Spectrophotometer YS6060 Color Detector Pt-Co Opacity Haze Transmit Benchtop 2Uv Grating 3nh Spectrophotometer YS6060 Color Detector Pt-Co Opacity Haze Transmit Benchtop 3
