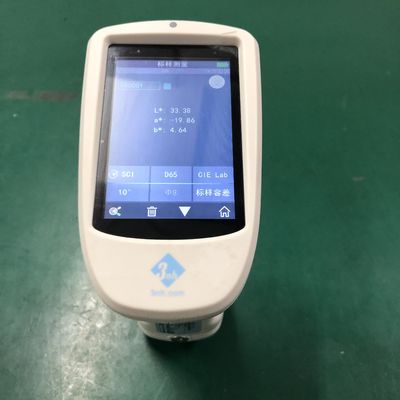

Precise Color Measurement Spectrophotometer TS7700 LED UV Light Source To Replace CM-700d

Place of Origin Shenzhen China
Brand Name 3nh
Certification CE, TUV, FCC, RoHS, ISO9001
Model Number TS7700
Minimum Order Quantity 1Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5KG, Alluminum Box
Delivery Time 2-5 Days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry D/8° SCE/SCI SCE & SCI
UV Light Source Yes Repeatibility ΔE*≤0.02
Inter-instrument Agreement ΔE*≤0.15 Measuring Aperture 8mm & 4mm
High Light

hunter lab spectrophotometer

,

color measurement instruments

Leave a Message
Product Description

Precise color measurement spectrophotometer TS7700 with full spectrum LED UV light source to replace CM-700d


Product Description

Ts7x series is a grating spectrophotometer that 3nh company has spent 3 years to design and is developed by 3nh independent intellectual property rights. The instrument adopts 1000 line precision blazed grating as the spectroscopic element, the silicon photocell array with large photosensitive area as the detector, the full spectrum led with high life as the light source, and the optical resolution is less than 10nm in the visible light range.



Under the condition of d/8 geometric optical illumination recommended by CIE, TS7700 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer TS7700, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system.



Spectrophotometer TS7700 is also widely used in the color quality control of various products. TS7700 is equipped with high-end color management software, which is connected to the computer to realize more function expansion. The instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical treatment, cosmetics and food industries, as well as scientific research institutions and laboratories etc.

Details



Model TS7700
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)


SCI (specular component included)/SCE (specular component excluded) ;

Include UV / excluded UV light source

Characteristics Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,double apertures for accurate color analysis and transmission in laboratory
Application

It is used for precise color measurement and quality control in plastic electronics, paint

and ink, textile and garment printing and dyeing, printing, ceramics and other industries,

and for fluorescent sample measurement.

Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Sensor Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component SCI&SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index

WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),Metamerism

Index MI,Staining Fastness, Color Fastness, Color Strength, Opacity,8° Glossiness,555 tone classification

Observer Angle 2°/10°
Illuminant

D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),

F12(TL83/U3

Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability

Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm:

within 0.18%)Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white

calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating,stabilizer cross position
Dimension L*W*H=129X76X217mm
Weight Approx 600g
Battery Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Displayed Data 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth 4.2
Data Storage Standard 1000 Pcs, Sample 30000 Pcs
Language Simplified Chinese, English, traditional Chinese
Operating Environment 0~40, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory

Power Adapter, User Guide, PC Software(Download from office website),

USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm

flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture

Optional Accessory Micro Printer, Powder Test Box
NotesThe specifications are subject to change without notice.
Features

1. D / 8 geometric optical structure, conforming to CIE No.15, GB / T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033 teil7;

2. Adopt combined LED light source with high life and low power consumption, including UV / excluding UV;

3. Switch 8mm & 4mm aperture( the flat/ tip measuring aperture can be switched easily, which is suitable for more tested sample)

4. Dual optical path system, the optical resolution in the visible range is less than 10nm, which can measure the SCI and SCE spectrum of the sample at the same time;

5. Accurate spectrum and lab data, used for color matching and accurate color transmission;

6. High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, 1000 line blazed grating, silicon photocell array detector with large photosensitive area, etc;

7. USB / Bluetooth dual communication mode, wider adaptability;

8. Super dirt resistant and stable standard white calibration board;

9. Large capacity storage space, which can store more than 30000 pieces of test data

10.2/10 standard observer's angle, multiple light source modes, multiple surface color systems, meet various standards of chromaticity indicators, and the needs of various customers for color measurement;

11. Camera locating position and Stabilizer cross measurement position;

12. PC software has powerful function expansion;

TS7700 Color Grating SpectrophotometerTS7700 Color Grating SpectrophotometerTS7700 Color Grating SpectrophotometerTS7700 Color Grating SpectrophotometerTS7700 Color Grating SpectrophotometerTS7700 Color Grating SpectrophotometerTS7700 Color Grating SpectrophotometerTS7700 Color Grating SpectrophotometerTS7700 Color Grating Spectrophotometer



Packaging & Shipping

Packing : carton or wood package,

3WJE{`0KDLI7(_$CGB3S[%O

Shipping : DHL, Fedex, UPS, TNT etc

Our Services

1.24 hours online to ensure quick response to customers' inquiry or online message;

2. Help customers to choose the best suitable machine model;

3. We support OEM and ODM service and 12 months warranty from the purchase date.

Company Information

3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.


Certifications

certificate-1

certificate-2

Application

3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
