CIE LAB Color Difference 3nh Spectrophotometer 45/0 Paper Printing Color Measurement
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Geometry | 45/0 | SCE/SCI | SCE & SCI |
|---|---|---|---|
| UV Light Source | Yes | Repeatibility | ΔE*≤0.03 |
| Inter-instrument Agreement | ΔE*≤0.15 | Measuring Aperture | 4，8mm Measurement Aperture |
| High Light | hunter lab spectrophotometer,color measurement instruments |
||
Product Description

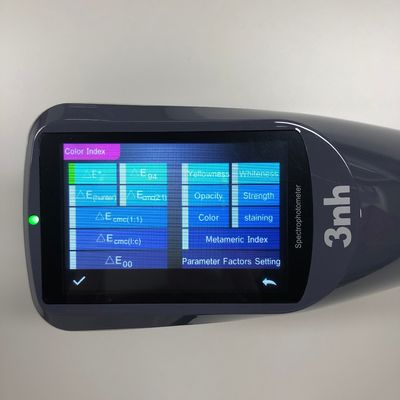

45/0 Paper Printing Color Measurement Spectrophotometer For CIE LAB Color Difference 3nh YS4560
Product Description
YS4560 Advanced Spectrophotometer uses 45/0 (45 degree ring illumination, 0 degree reception) geometric optical structure in accordance with CIE No. 15 and adopts concave grating spectrometry to accurately measure sample reflectance and various colorimetric data; The instrument is equipped with Φ8, Φ4mm double measuring aperture, used for traffic signs and accurate color measurement and quality control in various industries. It has a separate UV source for fluorescence sample measurements.
PRODUCT FEATURES
1.Beautiful appearance and perfect combination with ergonomic structure design;
2.45/0 geometrical optics, conforms with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833;
3.Adopt high-life and low-power combined LED light source, including UV/excluding UV;
4.Optional aperture2mm/4mm/8mm/20mm,adapt to more samples to be tested;
5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
6.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
7.USB port, widely useful;
8.Super stain-resistant and stable standard white calibration plate;
9.Large capacity storage space, over 30,000 measurement data;
10.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
11.PC software has a powerful function extension.
12.Built-in standard polygon tolerance setting and specific traffic sign gamut, one button to realize the measurement of traffic road signs, marking lines, reflective film brightness factor and chromaticity coordinates;
Technical Specification
| Parameters | Spectrophotometer YS4560 |
|---|---|
| Optical Geometry | 45/0 |
| Repeatibility | ΔE*≤0.03 |
| Inter-instrument Agreement | ΔE*≤0.15 |
| Measuring Aperture | 8mm and 4mm apertures |
| SCE/SCI | SCE&SCI |
| UV Light Source | Yes |
| Integrating Sphere Size | 48mm |
| Wavelength Range | 400nm - 700nm |
| Wavelength Pitch | 10nm |
| Halfband Width | 10nm |
| Reflectance Range | 0 - 200% |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Observer Angle | 2° & 10° |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Other Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity |
| Light Source Device | Combined LED Lamp & UV Lamp |
| Light Source Lifespan | 5 years, More than 1.6 million measurements |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Spectral Device | Concave Grating |
| Aiming Method | Camera Locating |
| Measurement Mode | Single Measurement & Average Measurement |
| Storage Capacity | Standard: 1000 Pcs Sample: 28000 Pcs (One piece can include SCE&SCI) |
| Data Port | USB & Bluetooth |
| Screen | 3.5" LCD Touch Screen |
| Battery | Built-in Li-ion Battery, 5000 Measurements within 8 hours |
| Size | 184*77*105mm |
| Weight | 600g |
| Language | English & Chinese & Spanish |
| Working Environment | Temperature: 0~40℃, Humidity: 0~85% (No Condensation) |
| Storage Environment | Temperature: -20~50℃, Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, USB Cable, Built-in Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cap |
| Optional Accessory | Micro Printer, Powder Test Box, Universal Test Component |
| 3nh Instrument | Description | Similar Models |
| YS6060 Spectrophotometer | d/8°;d/0° | CI7800,CM3600A |
| YS4560 Spectrophotometer | 45°/0 | BYK 6801,CM2500C |
| YS4510 Spectrophotometer | 45°/0 | CM2500C,CS600C |
| YD5050 Spectrophotometer | 45°/0 | Exact advance |
| YD5010 Spectrophotometer | 45°/0 | Exact basic, basic density meter |
| YS3060 Spectrophotometer | d/8° | X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d |
| YS3010 Spectrophotometer | d/8° | X-rite Ci60; MINOLTA CM-2300d |
| NS800 Spectrophotometer | 45°/0 | BYK 6801 |
| NR60CP Colorimeter | 8°/d | MINOLTA CR-10 plus |
| NHG268 Gloss Meter | 20°, 60°, 85° gloss | BYK 4563 |
| NHG60 Gloss Meter | 60° gloss | BYK 4561 |
| T90-7 Light Cabinet | 7 Illuminants | X-rite SpectraLight QC |
Packaging & Shipping
Package: Alumnium alloy metal box, carton package.
Payment: T/T, Western Union, Paypal
Lead Time:1-3 workdays
Shipping: DHL, Fedex, UPS, EMS,TNT, etc
Our Services
1.24 hours online to ensure quick response to customers' inquiry or online message;
2. Help customers to choose the best suitable machine model;
3. We support OEM and ODM service and 12 months warranty from the purchase date.
Company Information
3nh & tilo is a very professional manufacturer from China for 22 years, and mainly produces colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc.
Application
3nh colorimeter spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Certifications
FAQ
1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.
3. What's your main market?
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
