Steel Plate Metal Color Light Box With D65 TL84 UV F CWF TL83 6 Light Sources

Brand Name: Silk
Model Number: P60+S
Place of Origin: China
Certification: CE,ISO,RoHs,etc
Minimum Order Quantity: 1pc
Price: DISCUSS
Supply Ability: 1000pcs/month
Tags

color matching booth

color checking light box

color matching cabinet

Product Details

Model: P60+S Size: 695x552x502mm
Light Sources: D65,TL84,CWF,F,UV,TL83 Standard: ASTM D1729, ISO3664, DIN, ANSI And BSI
Color: N7 Neutral Grey Certifications: CE, ISO 9001, ROHS, SCM
Highlight

color checking light box

,

color matching booth

Product Description

Steel Plate Metal Light Box P60+S Silk brand Made in China with D65,TL84,UV,F,CWF,TL83 6 light sources



Model P60+S
Light source D65, TL84, UV, F, CWF, TL83
Dimensions(W*D*H) 695x552x502 mm
Inner Size(W*D*H) 665x490x360 mm
Voltage 220V
Weight 28.9 kg





P60+S has the same appearance with P60+ but different material. P60+S color light box adopts more durable and sturdy metal base. It is also with 6 light sources, D65, TL84, UV, F, CWF, TL83. It is able to change any light when customers need such as, D50, D75, U35, U30, or A light etc. Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth/Viewing Booth/Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.

P60+S color light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

P60+S Color Light Box Features:
1. Metal base, more durable and sturdy.
2. Composite engineering plastics, mold production, no yellowing, no deformation, no paint removal for more than ten years.
3. The latest top international appearance, combining the advantages of British and American light boxes.
4. Seamless structure design, 100% no light leakage, opaque, to avoid interference between the light sources.
5. The light barrier design (optional) to prevent the light source from irritating the human eye to avoid visual fatigue.
6. Customer can increase the elastic foot pad (optional), to avoid scratching the table, increase the stability of the placement.
7. Display usage time, name, and number of switches for each source
8. Automatic switching of light source with metamerism
9. No warm-up, no flashing, fast and reliable evaluation of colors
10. Low energy consumption, no heat dissipation, high luminous efficiency
11. Configure a more complete standard light source for English and American standards.The name of the light source can be changed, and it is more convenient to increase the light source.

Light sources Configuration:

Model D65 TL84 F UV CWF TL83 Voltage

P60+S

6 light sources(220V)

 2 PCS 2 PCS 4 PCS 1 PCS 2 PCS 2 PCS 220V/50Hz

P60+S

6 light sources(110V)

 2 PCS 2 PCS 4 PCS 1 PCS 2 PCS 2 PCS 110V/60Hz

About Light Sources:

Light Source Color Light Box Application Color temperature(k) Power(W)
D65 International standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe, Japan and China 4000 18
CWF (Cool White Fluorescent)American Standard 4150 18
F "Sun-setting Light Yellow" incandescent light source(imitation of sunset) 2700 40
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments Wavelength:365nm 20
TL83 Applied to stores in Europe 3000 18

Remarks: Optional tubes D50, D75, U30, U35, A



Packing & Delivery



Packing Details : MDF package

Delivery Details : within 2 days after payment

Payment Terms: T/T 100% In Advance

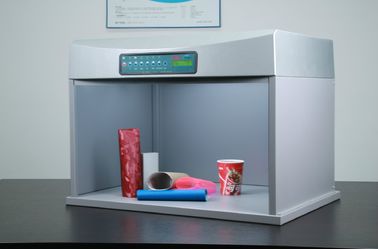

Steel Plate Metal Color Light Box With D65 TL84 UV F CWF TL83 6 Light Sources 0

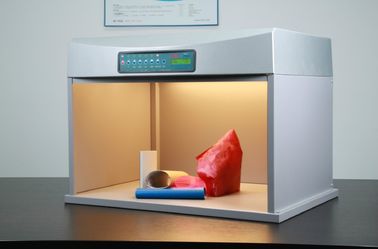

Steel Plate Metal Color Light Box With D65 TL84 UV F CWF TL83 6 Light Sources 1

Product Highlights

Steel Plate Metal Light Box P60+S Silk brand Made in China with D65,TL84,UV,F,CWF,TL83 6 light sources Model P60+S Light source D65, TL84, UV, F, CWF, TL83 Dimensions(W*D*H) 695x552x502 mm Inner Size(W*D*H) 665x490x360 mm Voltage 220V Weight 28.9 kg P60+S has the same appearance with P60+ but ...
