Quality Automatic Switching Light Box Color Assessment Cabinet 5 Lights Steel Plate Metal Material factory

Automatic Switching Light Box Color Assessment Cabinet 5 Lights Steel Plate Metal Material

Name: Automatic Switching Light Box Color Assessment Cabinet 5 Lights Steel Plate Metal Material
Brand: Beijing Silk Road Enterprise Management Services Co., Ltd.
SKU: T60+S
Availability: InStock

Brand Name: Silk

Model Number: T60+S

Place of Origin: China

Certification: CE,ISO,RoHs,etc

Minimum Order Quantity: 1pc

Supply Ability: 1000pcs/month

colour matching cabinet

pantone color viewing light booth

colour assessment cabinet

Product Details

Model:	T60+S	Size:	695x552x502
Light Sources:	D65, TL84, CWF, F, UV	Standard:	ASTM D1729, ISO3664, DIN, ANSI And BSI
Color:	Grey	OEM:	Yes
Highlight	colour matching cabinet , pantone color viewing light booth

Product Description

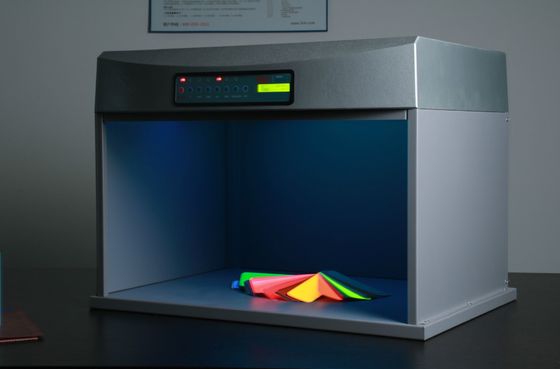

Metal Light Box T60+S Color Assessment Cabinet with 5 Lights Steel Plate Metal Material N7

Model	T60+S
Light source	D65, TL84, UV, F, CWF
Dimensions(WDH)	695x552x502 mm
Inner Size(WDH)	665x490x360 mm
Voltage	220V
Weight	28.9 kg

T60+S has the same appearance with T60+ but different material. T60+S color light box adopts more durable and sturdy metal base. It is also with 5 light sources, D65, TL84, UV, F, CWF. It is able to change any light when customers need such as, D50, D75, U35, U30, or A light etc. Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth/Viewing Booth/Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.

T60+S color light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

T60+S Color Light Box Features:

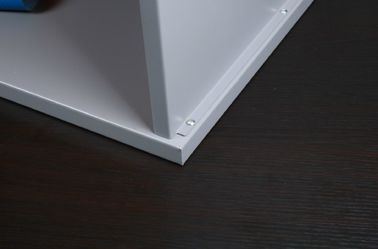

1. Metal base, more durable and sturdy.

2. Composite engineering plastics, mold production, no yellowing, no deformation, no paint removal for more than ten years.

3. The latest top international appearance, combining the advantages of British and American light boxes.

4. Seamless structure design, 100% no light leakage, opaque, to avoid interference between the light sources.

5. The light barrier design (optional) to prevent the light source from irritating the human eye to avoid visual fatigue.

6. Customer can increase the elastic foot pad (optional), to avoid scratching the table, increase the stability of the placement.

7. Display usage time, name, and number of switches for each source

8. Automatic switching of light source with metamerism

9. No warm-up, no flashing, fast and reliable evaluation of colors

10. Low energy consumption, no heat dissipation, high luminous efficiency

11. Configure a more complete standard light source for English and American standards.The name of the light source can be changed, and it is more convenient to increase the light source.

Light sources Configuration:

Model

D65

TL84

CWF

Voltage

T60+S

5 light sources(220V)

2 PCS

4 PCS

1 PCS

2 PCS

220V/50Hz

T60+S

5 light sources(110V)

2 PCS

4 PCS

1 PCS

2 PCS

110V/60Hz

About Light Sources:

Light Source	Color Light Box Application	Color temperature(k)	Power(W)
D65	International standard Artificial Daylight	6500	18
TL84	Applied to stores in Europe, Japan and China	4000	18
CWF	(Cool White Fluorescent)American Standard	4150	18
F	"Sun-setting Light Yellow" incandescent light source(imitation of sunset)	2700	40
UV	Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments	Wavelength:365nm	20
TL83	Applied to stores in Europe	3000	18

Remarks: Optional tubes D50, D75, U30, U35, A

Automatic Switching Light Box Color Assessment Cabinet 5 Lights Steel Plate Metal Material 0

Automatic Switching Light Box Color Assessment Cabinet 5 Lights Steel Plate Metal Material 1

Automatic Switching Light Box Color Assessment Cabinet 5 Lights Steel Plate Metal Material 3

Product Highlights

Metal Light Box T60+S Color Assessment Cabinet with 5 Lights Steel Plate Metal Material N7 Model T60+S Light source D65, TL84, UV, F, CWF Dimensions(W*D*H) 695x552x502 mm Inner Size(W*D*H) 665x490x360 mm Voltage 220V Weight 28.9 kg T60+S has the same appearance with T60+ but different material. T60...
