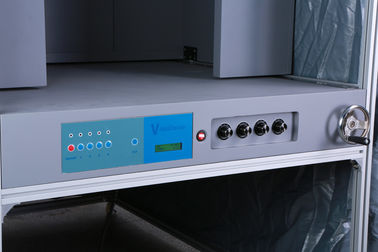

Horizontal MDF Material Camera Test Chart Viewing Color Check D65 TL84 A Source Box
Product Details
| Material: | MDF | Illuminants: | Four Light Sources D65, A, TL84, CWF |
|---|---|---|---|
| Illumination Range: | 750 To 3200 Lux | Name: | Camera Test Light Source Box |
| Highlight |
camera resolution chart,camera lens test chart |
||
Product Description
Silk Standard Horizontal MDF Material Camera Viewing Color Check Light D65 TL84 A Source Box
Our Certificates: ISO9001:2015-2017; CE; FCC; ROHS; TUV; SCM;
Silk.is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field. After years of intensive research, Silk launched NH series colorimeter with high precision and high stability, high definition ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
Parameter:
Camera Color Check Box provides a special lighting source for the test of your Video Camera. Its main functions are as below:
- High-level lighting homogeneity.
- Testing distance adjustable.
- Selectable color-temperature as required.
- Continuable Light Intensity Adjustment.
Camera Color Check Box Specifications:
1. Including D65, F, TL84 light sources
2. Quick Switch among each group of light sources by using microcomputer control
3. Timing function to record the using time of each group of light sources separately.
4. All parts are professional import, international quality certification.
Camera Color Check Box Performance:
1. Daylight accredited by CIE, 6500k color temperature
2. Illumination range: 750 to 3200 lux
3. Background of the light sources is Neutral Grey.
4. Illumination adjustable from 1% to 100%, higher than 80% evenness, test distance can be adjustable.
| Model | VC(2) |
| Type | Reflective |
| Illumination | 750 to 3200 lux |
| Light Source | D65, A, TL84, CWF |
Light Source:
| Light Source | Color viewing booths application | Color temperature(k) | Power(W) |
| D65 | International standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
| A | Shooting Light of American Window, Colorimetric reference light source | 2856 | 75 |
| CWF | (Cool White Fluorescent)American Standard | 4150 | 18 |
Frequently Asked Questions
1. Which models are the equivalent models to T90-7?
Answer: X-rite Spectral Light QC is the equivalent product to Silk T90-7.
2. Are you a trader or a manufacturer?
Answer: We Silk is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Beijing which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
Contact Information:
Contact Person: Clara Liu;
Email: L001@Silk.com;
Wechat & Whatsapp ID: +8613510310267;
Skype: clara.Silk
