Ys3060 3nh Spectrophotometer Color Matching Software To Replace Ci64 Xrite
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Geometry | D/8° | SCE/SCI | SCE & SCI |
|---|---|---|---|
| UV Light Source | Yes | Repeatibility | ΔE*≤0.03 |
| Inter-instrument Agreement | ΔE*≤0.15 | Measuring Aperture | 8mm & 4mm |
| High Light | hunter lab spectrophotometer,color measurement instruments |
||
Product Description

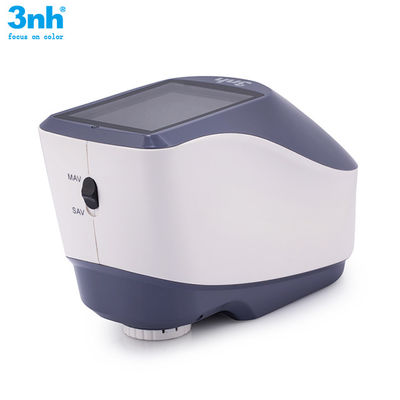

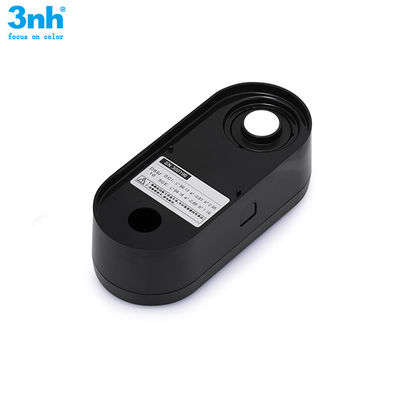

3nh Pantone Color Spectrophotometer Ys3060 with color matching software To Replace Ci64 Xrite
Brief Introduction
YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.
1. Spectrophotometer YS3060 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS3060 features the precise measurement and the complete functions.
3. It is configured with two measuring apertures, 8mm and 4mm. The 4mm aperture is for the color measurement of small targets.
4. Configured with UV light source, YS3060 can be used to measure the color of the targets with fluorescent material.
5. The PC terminal software SQCX provides powerful data management functions.
6. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
7. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
8. YS3060 can be connected to a computer via USB cable or Bluetooth to do data management.
9. A built-in camera to help to aim the targets to be measured.
Specification Parameter
| Parameters | Spectrophotometer YS3060 |
| Optical Geometry | d/8° (di:/8°, de:8°) |
| Measuring Aperture | Φ8mm & Φ4mm |
| SCI/SCE | SCI & SCE (SPIN & SPEX) |
| Integrating Sphere Size | Φ48mm |
| UV Light Source | Yes |
| Light Source | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Light Source Device | Combined LED Lamp & UV Lamp |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Spectral Device | Concave Grating |
| Observer Angle | 2° & 10° |
| Repeatibility | ΔE*≤0.03 |
| Inter-instrument Agreement | ΔE*≤0.15 |
| Spectral Range | 400~700nm |
| Spectral Interval | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity |
| PC Terminal Software | SQCX |
| Data Storage Capacity | Standard: 1000 Pcs; Sample: 28000 Pcs. (One Pcs data can include both SCI and SCE) |
| Data Port | USB & Bluetooth |
| Locating Method | Camera Locating |
| Measuring Mode | Single Measurement & Average Measurement |
| Screen | 3.5" LCD Touch Screen |
| Battery | Built-in Li-ion Battery. 5000 Measurements within 8 Hours. |
| Size | 184×77×105mm |
| Weight | 600g |
| Language | English & Chinese & Spanish |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | White and Black Calibration Board, 4mm Aperture, Power Adapter, USB Cable, Built-in Li-ion Battery, User Guide, PC Software, Dust Cap |
| Optional Accessory | Micro-printer, Powder Test Box, Universal Test Component |
Application
YS3060 spectrophotometer is color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the color of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
Show Room
FAQ
1. Which models are the equivalent models to YS3060?
Answer: MINOLTA CM-2600d, CM-700d and X-rite Ci64, Ci64UV are the equivalent models to 3nh YS3060.
2. Is 3nh a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters.
3. Where is your main market.
Answer: We sell to the global market.
4. Is the package strong enough to make the instrument shipped safely to customers?
Answer: Yes, of course. The instrument is packed in a firm alluminum box filled with foam.
5. Can YS3060 be used to measure liquids?
Answer: Yes, YS3060 can be used to measure liquids, but it must be configured with a universal test component which is optional.
Company
3nh - TILO, are one company. Established in 1998, 3nh - TILIO are committed to supply the world with relible color and gloss test equipments. 20 years' accumulation of technology and experience in color and gloss management field makes us qualified to accomplish our mission and achieve our goal.
