Quality Control Color Analysis Meter Ball Of String Color Checking Colorimeter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Color Difference Meter | Illuminating/Viewing Geometry | 8-degree/d |
|---|---|---|---|
| Sensor | Silicon Photodiode Array | Measuring Aperture | 8mm Flat Aperture,4mm Tip Aperture |
| Color Space | CIE LAB,XYZ,LCH,CIE RGB, CIELUV | Observer | CIE 10-degree |
| High Light | colour difference meter,paint color analyzer |
||
Product Description

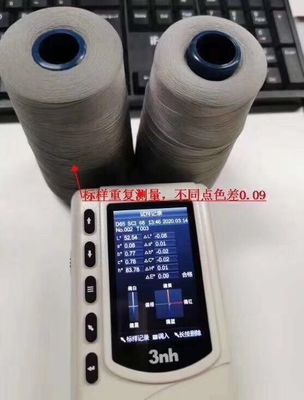

A ball of string color checking colorimeter quality control color analysis meter
Brief Introduction:
NR60CP is a model of colorimeter with powerful functions, high accuracy and competitive price, which has integrated the advantages of the similar products of the famous international brands. It also goes with our own innovative technology and patents, like illumination locating and cross locating, built-in white plate parameters, two standard measuring apertures 8mm and 4mm.
It is configured with multiple light source types, multiple color space systems and color difference formulas, all of which have endowed NR60CP with powerful functions to meet the requests of all kinds of color measurements.
Features :
- 8mm and 4mm double aperture for switch, easy to measure concave sample in large plane
- More stable and accuracy, Delta E ab<0.03
- Many color spaces, many color indexes, extensive applicability
- Double locating: illuminating locating and cross locating
- Equipped with rechargeable high-capacity li-ion battery
- Built-in white plate parameters, and configuration of physical whiteboard, easy to operate;
- New integrating sphere optical path design, more stable to measure;
- Double apertures measurement data can pass SCM metrological certification;
Specification :
| Model | NR60CP |
| Illuminating/Viewing Geometry | 8° / d; CI E No. 15,GB/ T 3978 |
| Light Source | LED sources |
| Sensor | Silicon photodiode array |
| Measuring Aperture | Φ8mm large area end-face; Φ4mm small area concave-convex end-face |
| Color Space | CI E L AB,XYZ,LCh,CI E RGB,CI E LUV |
| Other Chromaticity Data | WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925, 313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I |
| Observer | CI E 10° |
| Illuminant | D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12 |
| Display Data | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, |
| Measurement Time | 0. 4s |
| Repeatability | ΔE* ab 0. 03(Average of 30 measurement of standard white plate within 5s) |
| Errors between each instrument | within Delta E*ab 0.2 |
| Dimension | (L*W*H)205*67*80mm |
| Weight | 500g |
| Battery | rechargeable lithium-ion battery 3. 7V @ 3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Display Screen | TFT 2.8 inch(16: 9) |
| Interface | USB/RS-232 |
| Data Memory | 100 Standards, 20000 Samples |
| Operating Temperature | 0~40℃(32~104°F) |
| Storage temperature | -20~50℃(-4~122°F) |
| Optional Accessory | miniature thermal printer, powder test box |
Application Industry:
NR60CP colorimeter is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It not only can precisely measure many kind of color indexes in many color spaces, but also it is easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
Related Knowledge about Spectrophotometer:
Color Space
CIE LAB
- L(Lightness)-0 is black,100 is white
- a(Red-Green)-positive values are red; negative values are green and 0 is neutral
- b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
