8k UHD TV2 Resolution Test Chart 200-4000 Cph 16/9 Transparent 18% Transmission

8K (UHD TV2) RESOLUTION TEST CHART 200-4000 CPH 16:9 TRANSPARENT

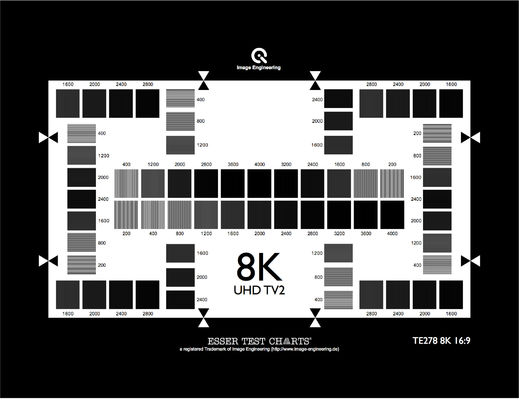

The TE278 is designed to measure and describe the frequency response of an electronic 8K (UHD TV2) camera.

The test chart consists of 50 multiburst fields, which are distributed over 16:9 picture area. The fields are arranged in horizontal and vertical direction to measure resolution in both directions. All fields are labeled with the resolution in cycles per picture height. A cycle consists of one black and one white line.

The two rows in the middle are arranged differently. The upper row takes into account, that the highest resolution is in the middle of the picture. Therefore the 4000 cph field is in the middle and frequencies decrease to both sides.

In the lover row the frequencies increase from the 200 cph on the left to the 4000 cph on the right. The row can be used to measure and describe the frequency response of the camera under test.

Brief Introduction:

1. We, 3nh-Sine Image, now is the biggest and best manufacturer of Camera Test Charts in China.

2. We can make all kinds of test charts, such as ISO12233 Resolution Charts, Distortion Charts, Greyscale Charts, 18% Netral Grey Cards, SFR Charts, Dynamic Range Charts, and so on.

3. Both transmissive and reflective are OK.

4. Any customised charts are no problem, either.

5. Our test charts definitely can match with the charts of ESSER(IE) and Imatest, no matter in accuracy or in quality.
6. Compared with ESSER(IE) and Imatest, our advantages exist on not only the much better prices but also much better delivery time.

7. More and more world famous companies have already trusted us as their long-term supplier for camera test charts.
8. These companies include HUAWEI, Apple, OPPO, vivo, O-film, DJI, GoPro, Lenovo, Samsung, LG, Suny Optics, ZTE.

9. We can make some small samples for you to check and confirm first.

Frequently Asked Questions:

1. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments, gloss meters and camera test charts. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
2. What's your main market.
Answer: We sell to the global market.
3. How long is your delivery time?
Answer: Generally it is 3-7 working days after the payment confirmed.
4. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
5. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
