Adjustable Illumination Color Temperature Fill Light Box T8B-X For 8x Iso Test Chart

Place of Origin Shenzhen China
Brand Name 3nh-TILO
Certification CE, RoHS
Model Number T8B-X
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details Safe Package, MDF Wood Carton
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 100 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Metal Illuminants 4 Lights
Inner Space 895*599*652mm Name Camera Test Light Source Box
High Light

camera resolution chart

,

camera lens test chart

Leave a Message
Product Description

T8B-X Professional Adjustable Illumination Color Temperature Fill Light box for 8x iso test chart



T8B-X Adjustable Illumination / Color Temperature Fill Light Box is produced independently by shenzhen ThreeNH technology co.ltd and it is special design for camera test use.



This product uses LED light source with the performance of high power, high illumination, no flicker, long life, stable color temperature and it provides professional lighting environment for camera lens evaluation system, suitable for large test chart use.



T8B-X consists of: Upper fill light (2 sets), lower fill light (2 sets), left fill light, right fill light (left and right fill light are identical and interchangeable) and light source control box.



Note: Users can choose only two left and right lights or only four upper and lower lights according to their requirements. Free combination is for the best results.

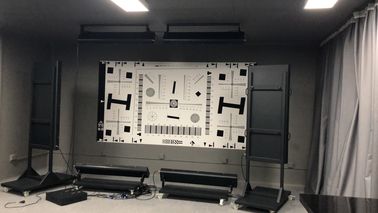

T8B-X Professional Adjustable Illumiation Color Temperature Fill Light box for 8x iso test chart

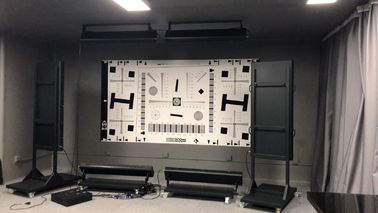

T8B-X Professional Adjustable Illumiation Color Temperature Fill Light box for 8x iso test chart

T8B-X Professional Adjustable Illumiation Color Temperature Fill Light box for 8x iso test chart

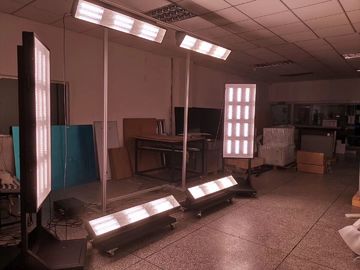

Figure 1 T8B-X

Features:



1. The irradiation surface is uniform, and according to different requirements, users can flexibly move and adjust the position and angle of each light box to get the best light uniformity.

2. Adjustable color temperature, range: 2300K--8500K

3. Illumination is adjustable. Dimming is divided into high-light dimming and low-light dimming. Among them, low-light dimming includes two thick and fine dimming knobs for more accurate dimming.

Range: 0 to 3000LX (the highest illuminance is related to the placement of the light box, based on actual test result).

4. Color temperature is stable, no flicker, and life span is more than 10,000 hours.

5. Easy to use.



Specifications:



1. Dimensions of the upper fill light box (Figure 2): 1204mm*204mm* 280mm(L*W*H).

2. Dimension of the bottom fill light box (Figure 3): 1204mm*380mm*390mm(L*W*H).

3. Dimensions of the left and right fill light boxes (Figure 4): 666mm*1000mm* 2012mm (L*W*H).

4. Standard light source control box size (Figure 5): 466mm*305mm*152mm(L*W*H).

Adjustable Illumination Color Temperature Fill Light Box T8B-X For 8x Iso Test Chart 3

5. Optional accessory: two fill light left and right or four light source control box size (Figure 6): 508mm*248mm*131mm(L*W*H).

6. Operating environment: 0-28 ℃, relative humidity under 85% (non-condensing).

7. Input voltage: AC 220V, 50 / 60Hz. The maximum power consumption is 500W (optional 250W).

8. Net weight: 200kg (optional 120Kg).



Packing list (standard)

Items Quantity
Upper fill light box 2 set
Lower fill light box 2 set
Left and right fill light boxes 2 set
Light source control box 1 set
Connection cables 6 pcs
Power Cord 1 pcs
User Manual 1 pcs
Certificate of conformity and warranty card 1 pcs



Instructions of Standard light box control box:



1. Before powering on, please make sure to connect a power source that conforms to this product, connect the power cable and the light box connection cable.

The upper fill light box has two connectors that are interchangeable with each other. The lower fill light box has two connectors, and they are Interchangeable too. The left and right fill light boxes have two connectors that can be interchanged with each other.

2. The dimming of the control box includes up and down dimming and left and right dimming.

When turning up and down dimming knobs, the upper and lower 4 fill light boxes are dimmed at the same time.

When turning the left and right dimming knobs, the left and right fill light boxes are dimmed at the same time.

High illumination dimming: Press the high / low illumination switch to the high illumination end and turn the high illumination dimming knob.

Low illumination dimming: Press the high / low light switch to the low illumination end, and rotate the thick and thin dimming knots to adjust low illumination.

Rotate the color temperature knob to adjust the color temperature of 6 fill lights at the same time.

3.After adjusting to the required illuminance, warm up for 5-10 minutes, and after the color temperature is stable, start to test and use.



Standard color temperature (K) Color temperature test value (K) Illuminance test value (Lx)
2850 2859 3102
3100 3143 3267
5100 5110 3470
6500 6532 3600
7500 7574 3703
