Electric Digital Camera Resolution Chart Test Solution Magnetic Board T1422-4D

  • Electric Digital Camera Resolution Chart Test Solution Magnetic Board T1422-4D
  • Electric Digital Camera Resolution Chart Test Solution Magnetic Board T1422-4D
Place of Origin Shenzhen China
Brand Name 3nh-TILO
Certification CE, RoHS
Model Number T1422-4D
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details Safe Package, MDF Wood Carton
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 100 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Metal Illuminants 7 Kinds In Total, Customizable
Inner Space 895*599*652mm Name Camera Test Light Source Box
Highlight

camera resolution chart

,

camera lens test chart
Leave a Message
Product Description

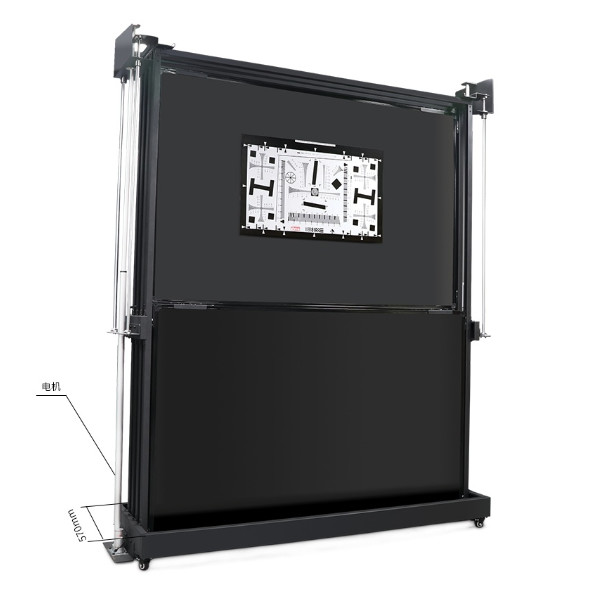

T1422-4D Electric Multi Test Charts Bracket

This T1422-4D Electric Multi Test Charts Bracket is used for multi test charts switchable use to measure camera or lends test quality, and it supports on at least 1 pcs standard 4x iso test chart. Both sides of the 4 boards can be used for many test charts.



1. It can extend the life of the chart when used in combination with the magnetic chart



The surface of the test chart bracket has the function of magnetic absorption, which is very convenient to be used in combination with the magnetic absorption chart. It does not need to take the test chart up and down, which is convenient for the collection and release of the chart, and it also does not damage the chart, and extends the service life.



2. Both sides of the board can be used



The bracket is equipped with 4 hanging boards, both sides of which can be used; each hanging board can be pasted with up to 1 pcs standard 4x iso test charts, and up to 8 pcs standard test chart.



3. Magnetic board, easy to use



The test charts with magnetic can be directly pasted on the hanging board without glue and tape, which is convenient for use.



4. It can be controlled by remote control



When the motor is installed, press the up and down switch to move the hanging plate up and down, or use the remote control to move the hanging plate up and down.



5. Caster design, convenient to move



Four 1.5-inch castors with brake are installed under the pylon base, which is convenient to move and flexible to use.



Electric Digital Camera Resolution Chart Test Solution Magnetic Board T1422-4D 0

Specifications

Parameters ISO12233 Enchanced Camera Resolution Test Chart
Size Size customisable
Format 16:9 / 4:3
Type Reflective/Transmissive
Material Photographic Paper(Reflective), Film(Transmissive)



Common Standard Size

Model Multiple Size(cm) Material
NE-10-50A 0.5X 10×17.8cm Photographic Paper
NE-10-100A 1X 20×36.6cm Photographic Paper
NE-10-200A 2X 40×71.2cm Photographic Paper
NE-10-400A 4X 80×142.4cm Photographic Paper
NE-10-800A 8X 160×284.8cm Photographic Paper
