TE263 Pattern Scan Reference Chart Gray Steps Color Patches Scale Resolution

  • TE263 Pattern Scan Reference Chart Gray Steps Color Patches Scale Resolution
  • TE263 Pattern Scan Reference Chart Gray Steps Color Patches Scale Resolution
Place of Origin Shenzhen, China
Brand Name SineImage
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number COLOR CAMERA GRAY SCALE TEST CHART
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time within 3-5 working days after payment confirmed
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand SineImage Usage For Resolution And Sharpness Measurements
Light Source Can Be Equiped With Light Box Standard ISO12233(2014)
Model TE263 Diameter Center Mark 5 Mm
High Light

camera resolution chart

,

camera lens test chart
Leave a Message
Product Description

Gray steps color patches a scale and resolution pattern SCAN REFERENCE CHARTTE263 Pattern Scan Reference Chart Gray Steps Color Patches Scale Resolution 0

To ensure that each and every scan is in focus, correctly exposed, and white balanced the scan reference chart is the right chart to put aside of your archiving assets. The chart consists of gray steps, color patches, a scale and resolution pattern. It allows automatic analysis of each scanned page and - in combination with the right software - provides information for the reason if a specific page happens to be out of specs.





  C1 B1 A1 C2 B2 A2 B5 A5 20 18 17 16 11

L 46.0 53.0 18.0 48.0 49.0 82.0 64.0 32.0 5.0 10.0 15.0 20.0 45
a 64.0 -45.0 24.0 -34.0 56.0 3.0 20.0 24.0 0.0 0.0 0.0 0.0 0.0
b 34.0 38.0 -61.0 -31.0 -14.0 90.0 19.0 32.0 0.0 0.0 0.0 0.0 0.0
D                 2.26 1.95 1.72 1.52 0.84



  10 9 3 2 1 C7 B7 A7 C8 B8 A8 C9 B9

L 50.0 55.0 85.0 90.0 95.0 86.0 85.0 85.0 87.0 85.0 86.0 85.0 85.0
a 0.0 0.0 0.0 0.0 0.0 -19.0 13.0 -2.0 10.0 -11.0 13.0 -14.0 4.0
b 0.0 0.0 0.0 0.0 0.0 -1.0 0.0 -9.0 18.0 26.0 7.0 -9.0 -6.0
D 0.73 0.64 0.18 0.12 0.06



TE263 Pattern Scan Reference Chart Gray Steps Color Patches Scale Resolution 1

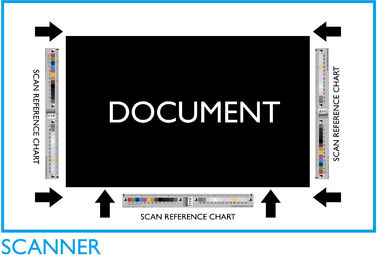

The arrows and the scale have to point towards the document.
