TE253 Digital Camera Resolution Chart 0-1 Reflective Rate For Self Calibration
Product Details
| Brand: | Silk | Ratio: | 4:3, 16:9 |
|---|---|---|---|
| Siemens Star: | With 144 And 72 Periods | Model: | TE253 |
| Light Source: | Can Be Equipment Standard Light Source | Reflective Rate: | 0-1 |
| Highlight |
camera resolution chart,camera lens test chart |
||
Product Description
CERTIFICATE MODULATED SINUSOIDAL SIEMENS STAR REFLECTIVE
Reflectance of the gray patches of the TE253 A / TE253 A 9x (center star):
| Step |
Measured Reflectance |
Reference Reflectance |
Deviation |
| 1 | 1.00 | ||
| 2 | 0.93 | ||
| 3 | 0.87 | ||
| 4 | 0.80 | ||
| 5 | 0.73 | ||
| 6 | 0.67 | ||
| 7 | 0.60 | ||
| 8 | 0.53 | ||
| 9 | 0.47 | ||
| 10 | 0.40 | ||
| 11 | 0.33 | ||
| 12 | 0.27 | ||
| 13 | 0.20 | ||
| 14 | 0.13 | ||
| 15 | 0.07 | ||
| 16 | 0.02 |
Serial Number:
center mark: 5 mm 12 mm cycles: 72 144
chart size: A460 A1066

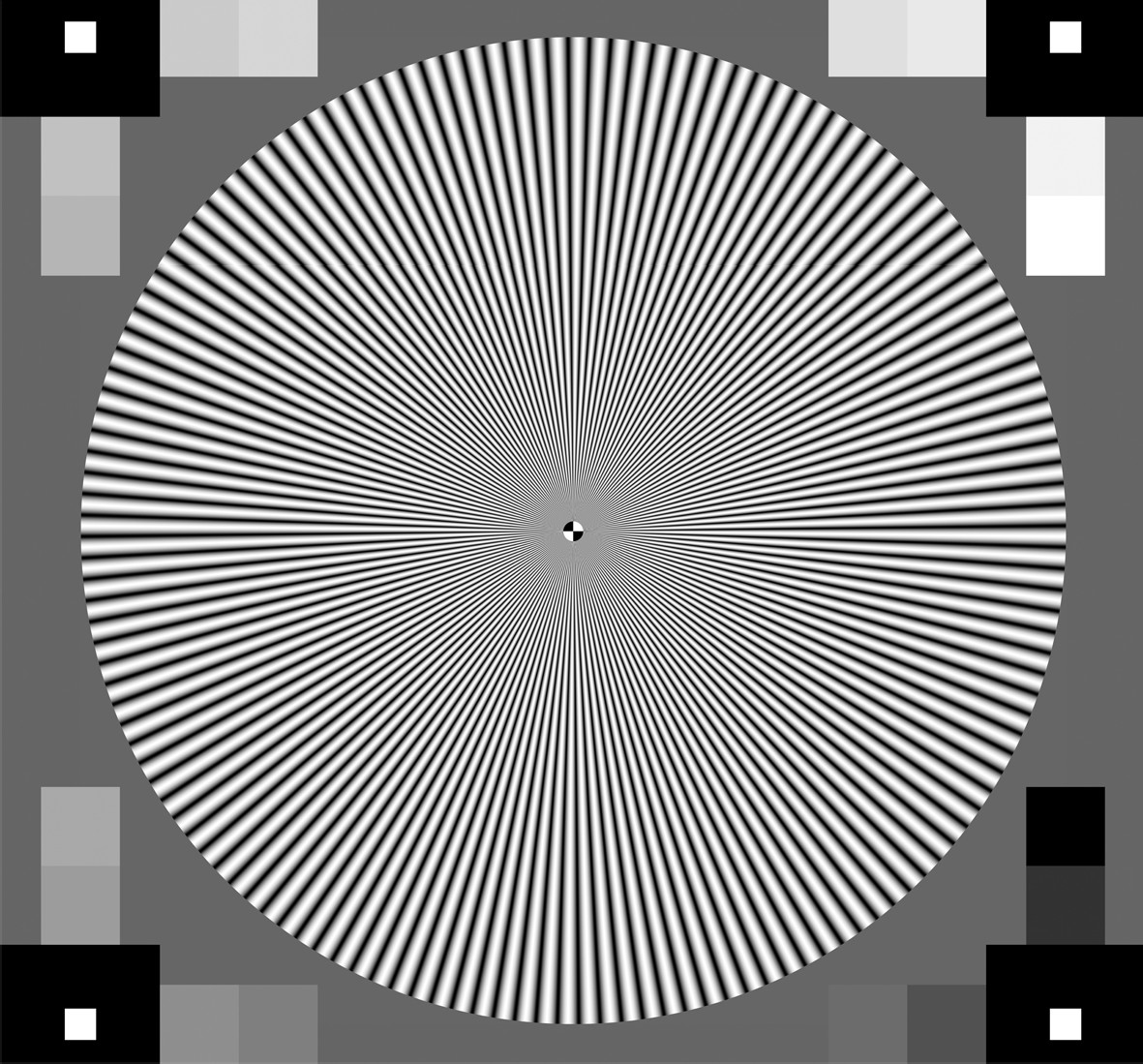

The chart TE253 contains a radially sine modulated Siemens star in the center of the image. In the center of the Siemens star is a focusing target. At the border of the chart there are 16 gray patches located which are used for self-calibration. The corners are showing a bigger black square with a small white square in it. The chart has an outer size of 29.0 cm in width and 26.9 cm in height. The Siemens star has a diameter of 25 cm.
Each gray patch has a size of 2x2 cm. The Siemens star is available with 144 and 72 periods.

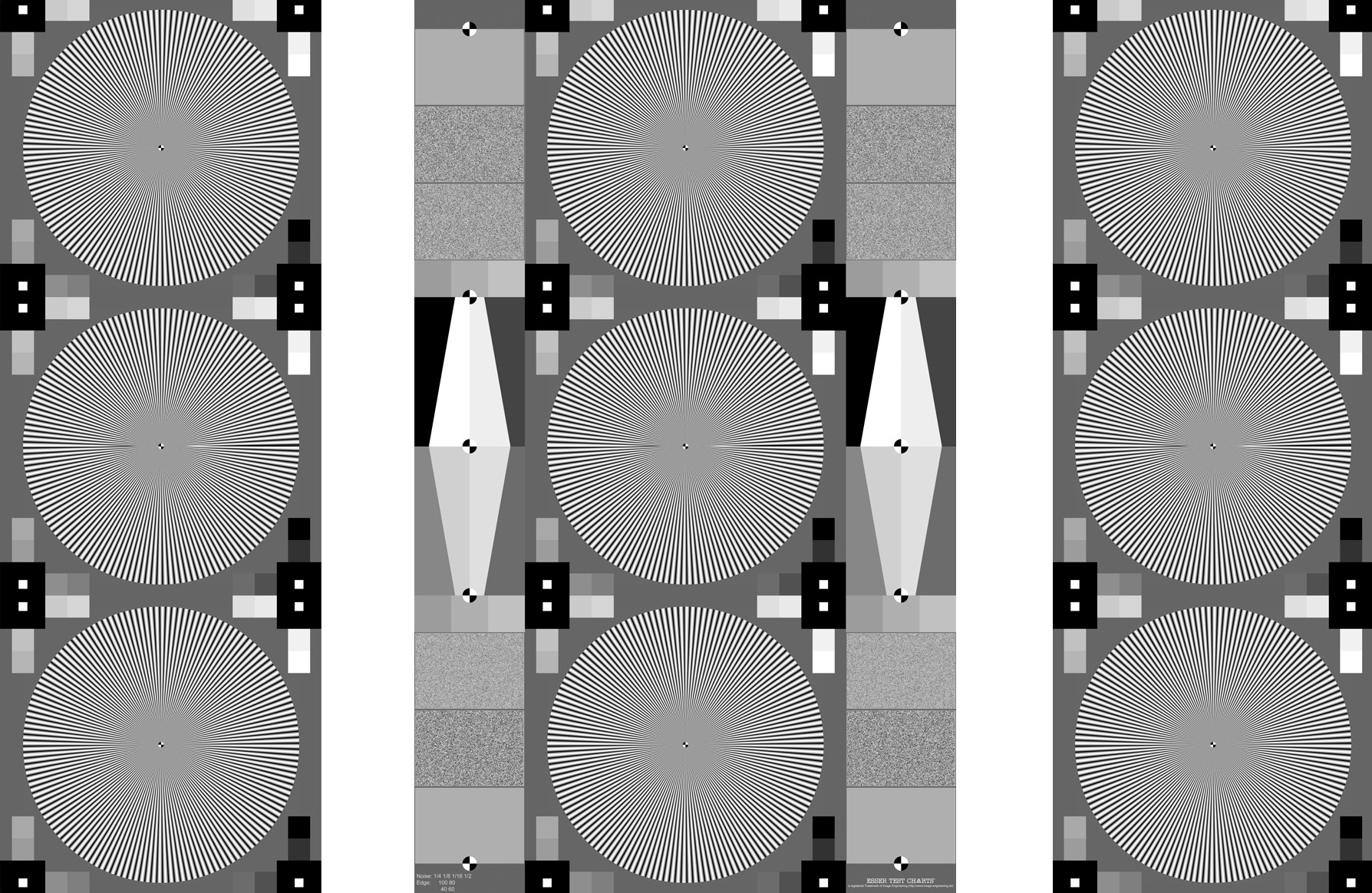

For full field analysis with the iQ-Analyzer nine charts of TE253 are combined in the following way:
This combination can be done in 4:3, 16:9 or any other aspect ratio due to the three stripes the Siemens stars are mounted on.
The maximum resolution of the TE253 A 9x depends on chart size and diameter of the center mark:
| chart name | size |
number of cycles |
diameter center mark |
min. resolution |
max. resolution |
| TE253-L | A1066 | 72 | 12 mm | VGA | 2 MP |
| TE253-S | A1066 | 144 | 12 mm | 2 MP | 30 MP |
| TE253-H | A1066 | 144 | 5 mm | 8 MP | 180 MP |
| TE253-A460-L | A460 | 72 | 5 mm | VGA | 2 MP |
| TE253-A460-H | A460 | 144 | 5 mm | 2 MP | 35 MP |
