Quality Low Contrast Sfr Digital Camera Resolution Chart Target Standard Version with light box factory
<
Quality Low Contrast Sfr Digital Camera Resolution Chart Target Standard Version with light box factory
>

Low Contrast Sfr Digital Camera Resolution Chart Target Standard Version with light box

Brand Name: SineImage
Model Number: ER-SD-100A
Place of Origin: Beijing, China
Certification: CE&RoHS&TUV&FCC&ISO9001
Minimum Order Quantity: 1pc
Supply Ability: 1000pcs/month
Tags

camera lens test chart

camera resolution chart

camera test chart

Product Details

Brand: SineImage Usage: For Resolution And Sharpness Measurements
Light Source: Can Be Equiped With Light Box Standard: ISO12233(2014)
Model: ER-SD-100A Diameter Center Mark: 5 Mm
Highlight

camera resolution chart

,

camera lens test chart

Product Description

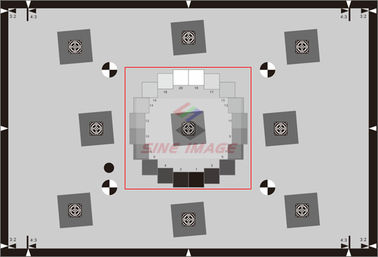

SineImage ISO 12233:2014 E-SFR test charts -Standard Version





Chart Size Standard Enhanced Extended
1x 200 mm × 305 mm            ER-SD-100A 200 mm × 305 mm       ER-ST-100A       200 mm × 365 mm        ER-EX-100A
2x 400 mm × 610 mm            ER-SD-200A 400 mm × 610 mm       ER-ST-200A      400 mm × 730 mm        ER-EX-200A
4x 800 mm × 1220 mm          ER-SD-400A 800 mm × 1220 mm     ER-ST-400A    800 mm × 1460 mm      ER-EX-400A
8x 1600 mm x 2440 mm        ER-SD-800A 1600 mm x 2440 mm   ER-ST-800A 1600 mm x 2848 mm     ER-EX-800A







This sfr test chart, which has a 3:2 aspect ratio, is a "no-frills" implementation of the standard. For most work we recommend the Enhanced or Extended charts, which have additional edges for measuring performance near the image boundaries, as well as hyperbolic wedges and color patches (where the technology allows). These chartsmaintain full compliance with the standard.

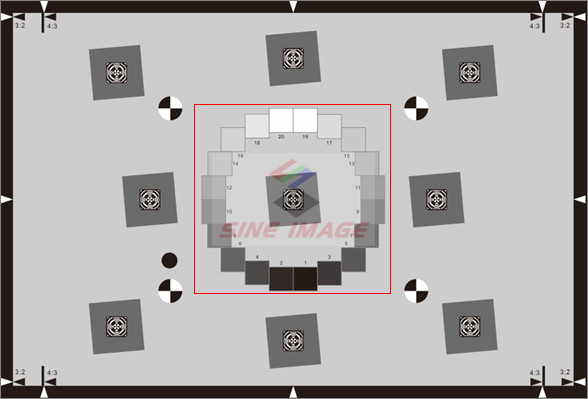

The Imatest Standard ISO 12233:2014 E-SFR chart closely resembles the Low contrast E-SFR test chart illustrated in section 6.1 and Annex C of the ISO standard document, with a few differences, all of which are fully compliant with the ISO standard.

A 20 patch OECF grayscale pattern* is used instead of the 16 patch version.

The Focus Patterns in the centers of the squares are rectangular (to increase the MTF measurement area) and are designed to reduce interference with automatic edge detection.

There are four registration marks instead of three to facilitate automated region detection. (Four features are required for a projective transform.)

An additional mark above the lower-left registration mark is used for detecting chart orientation.

All SineImage ISO 12233:2014 E-SFR charts are fully compliant with the ISO standard. The Imatest eSFR ISO moduleprovides highly automated support for the new charts.


SineImage ISO 12233:2014 E-SFR charts are implementations of the Low Contrast Edge SFR (E-SFR) test chart illustrated in Section 6.1 and Annex Cof the ISO Standard Document. The charts come in three versions:

Standard: basic, no extra measurement features
Enhanced: extra squares, wedges, and color patterns when printed with technologies that allow color
Extended: similar to Enhanced, but with a 16:9 aspect ratio, suitable for HDTV and cinema

We currently offer these charts in inkjet format, with Enhanced versionsavailable as photographic prints. All SineImage ISO 12233:2014 E-SFR charts are fully compliant with the ISO standard. The Imatest eSFR ISO moduleprovides highly automated support for the new charts.


Remark: We support Any customized test charts only if you have high resolution image and size.

  1.

Standard Transparent/Reflectance Test Chart Size

  1. Size Picture size(4:3) Picture size(16:9) Chart Size(16:9)
    A280 280*210mm 280*157.5mm 365*305mm
    D240 240*180mm 240*135mm 320*290mm
    D280 280*210mm 80*157.5mm 360*280mm
  2. ISO 12233 Resolution Test Chart Size
  3.
  4. Model Specification Size Material
    NQ-10-50A 0.5X 10x17.8 cm photographic paper
    NQ-10-100A 1X 20x35.6 cm photographic paper
    NQ-10-200A 2X 40x71.1 cm photographic paper
    NQ-10-400A 4X 80x142.2 cm photographic paper
    NQ-10-800A 8X 160x284.4 cm photographic paper



Remark: We support Any customized test charts only if you have high resolution image and size.
