Sineimage YE0112 Grid Registration Camera Test Chart Equiped With Light Box

Brand Name: SineImage
Model Number: YE0112
Place of Origin: Beijing, China
Certification: CE&RoHS&TUV&FCC&ISO9001
Minimum Order Quantity: 1pc
Supply Ability: 1000pcs/month
Tags

camera lens test chart

camera resolution chart

camera test chart

Product Details

Brand: SineImage Usage: For Resolution And Sharpness Measurements
Light Source: Can Be Equiped With Light Box Standard: ISO12233(2014)
Model: YE0112 Diameter Center Mark: 5 Mm
Highlight

camera resolution chart

,

camera lens test chart

Product Description



Sineimage YE0112 Grid / Registration Test Chart



Model

YE0112

Type

Reflectance/Transmission

Size

280*210mm (A280 & D240)

Ratio

4:3
Material HD photographic paper/Filim

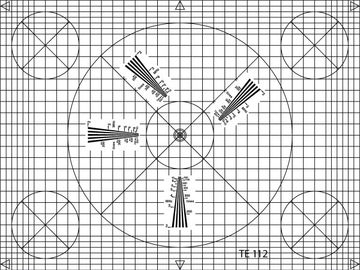

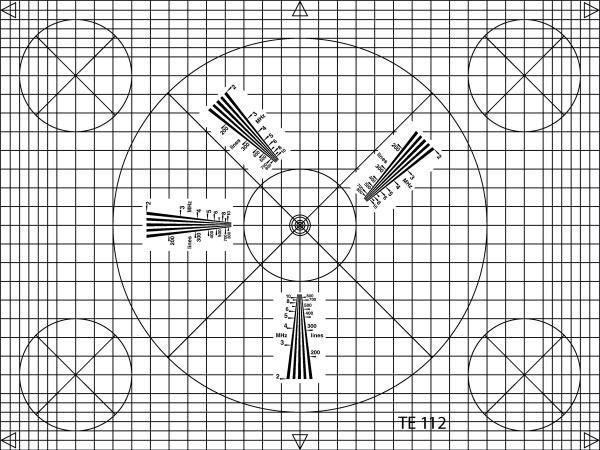

A grid structure consisting of 23 horizontal and 35 vertical lines is arranged on a white background. 3 grid lines each divide the outer 3 grid rows in the middle. The width of the grid lines is 0.15% of the picture width. The large circular line has a diameter of 83 1/3% of the picture height, the 5 small circular lines have a diameter of 25% of the picture height.

4 resolution wedges are arranged in the large circle at angles of 0°, 45°, 90°, and 135° corresponding to signal frequencies of 2-10 MHz. (The marking ends at 8 MHz and 800 lines).

Utilization
• The test chart is designed for operational adjustment and control of TV cameras.
• The circles permit rough visual appraisal of scan linearity.
• The grid lines serve the purpose of adjusting registration.
• The wedges serve the purpose of resolution appraisal.


Remark: We support Any customized test charts only if you have high resolution image and size.

  1.

Standard Transparent/Reflectance Test Chart Size

  1. Size Picture size(4:3) Picture size(16:9) Chart Size(16:9)
    A280 280*210mm 280*157.5mm 365*305mm
    D240 240*180mm 240*135mm 320*290mm
    D280 280*210mm 80*157.5mm 360*280mm
  2. ISO 12233 Resolution Test Chart Size
  3.
  4. Model Specification Size Material
    NQ-10-50A 0.5X 10x17.8 cm photographic paper
    NQ-10-100A 1X 20x35.6 cm photographic paper
    NQ-10-200A 2X 40x71.1 cm photographic paper
    NQ-10-400A 4X 80x142.2 cm photographic paper
    NQ-10-800A 8X 160x284.4 cm photographic paper



Remark: We support Any customized test charts only if you have high resolution image and size.
