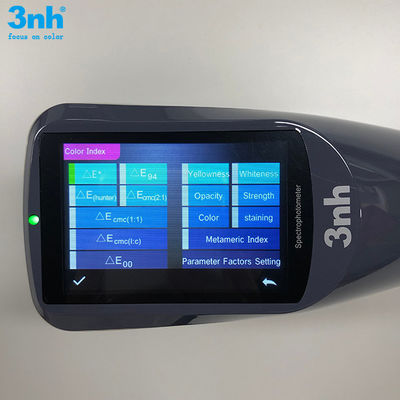

45/0 Colour Appearance 3nh Spectrophotometer YS4510 with Color Quality Software
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOptical Geometry | 45/0 | SCE/SCI | SCE & SCI |
---|---|---|---|
UV Light Source | Yes | Repeatibility | ΔE*≤0.03 |
Inter-instrument Agreement | ΔE*≤0.15 | Measuring Aperture | 2,4,8mm Measurement Aperture Optional |
High Light | hunter lab spectrophotometer,color measurement instruments |
45/0 colour appearance spectrophotometer with color quality software 3nh YS4510 to replace BYK 6801 instrument
Technical Specification
45/0 Grating Spectrophotometer | |
Model | YS4510 Customized One Aperture 45/0 Spectrophotometer |
Illumination/Observation system | 45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833 |
Features | Common spectrophotometer with customized one aperture, like 8mm aperture and apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. |
Integrating Sphere Size | Φ48mm |
Light Source | Combined LED Light |
Spectral separation device | Concave Grating |
Detector | 256 Image Element Double Array CMOS Image Sensor |
Wavelength Range | 400~700nm |
Wavelength Pitch | 10nm |
Half Bandwidth | 10nm |
Reflectance Range | 0~200% |
Measuring Aperture | Customized One Aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm;SAV:Φ2mm/Φ3mm; |
Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy |
Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) |
Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313), TI(ASTM E313,CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, |
Observer Angle | 2°/10° |
Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
Measurement Time | About 1.5s |
Repeatability | Spectral reflectance: MAV,Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) Chromaticity value:MAV,within ΔE*ab 0.05( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
Measurement mode | Single Measurement, Average Measurement(2-99) |
Size(L*W*H) | 184*77*105mm |
Weight | About 600g |
Power source | Li-ion battery. 5000 measurements within 8 hours |
Illuminant Life Span | 5 years, more than 3 million times measurements |
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
Interface | USB |
Data memory | Standard 500 Pcs, Sample 20000 Pcs |
Language | Chinese,English |
Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. |
Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
Notes: The specifications are subject to change without notice. |
Brief Introduction
1. Spectrophotometer YS4510 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh.
2. YS4510 features the precise measurement and the complete functions.
3. It is configured with 8mm or 4mm or 2mm aperture optional. The 4mm or 2mm aperture is for the color measurement of small targets.
4. Configured with UV light source, YS4510 can be used to measure the color of the targets with fluorescent material.
5. The PC terminal software SQCX provides powerful data management functions.
6. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
7. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
8. YS4510 can be connected to a computer via USB cable or Bluetooth to do data management.
9. A built-in camera to help to aim the targets to be measured.
Application Introduction
YS4510 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS4510is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
Frequently Asked Questions
1. Which models are the equivalent models to YS4510?
Answer: BYK 6801.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
