CIE LAB Data Color Spectrophotometer NS800 45°/0 Optical Geometry Ergonomics Structure

  • CIE LAB Data Color Spectrophotometer NS800 45°/0 Optical Geometry Ergonomics Structure
  • CIE LAB Data Color Spectrophotometer NS800 45°/0 Optical Geometry Ergonomics Structure
Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE, TUV, FCC, ISO9001, RohS
Model Number NS800
Minimum Order Quantity 1 Unit
Price Please send inquiry
Packaging Details 46*25*38cm, 4.5kg, Alluminum Box
Delivery Time 2-5 work days
Payment Terms T/T
Supply Ability 500 Units per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optical Geometry 45°/0 Sphere Size Φ58mm
Repeatibility ΔE*≤0.04 Inter-instrument Agreement ΔE*≤0.2
Wavelength Range 400-700nm Measuring Aperture Φ8mm
High Light

integrating sphere spectrophotometer

,

multi angle spectrophotometer
Leave a Message
Product Description

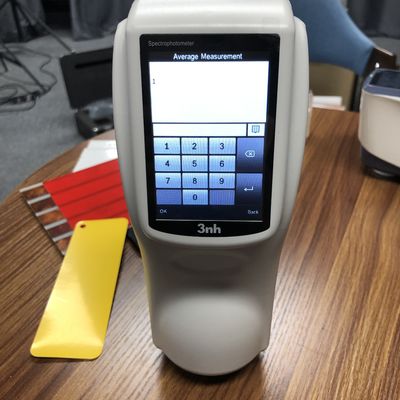

CIE LAB data color spectrophotometer NS800

CIE LAB data color spectrophotometer NS800 uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NS800 spectrophotometer with higher




Features

  1. Aesthetic design perfectly combined with ergonomics structure.
  2. 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
  3. 3.5 inch large capacitive touch screen.
  4. Two standard observer perspectives, multiple light sources modes, a variety of color systems.
  5. The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
  6. Large capacity storage, can save more than 10000 data.
  7. PC software with powerful extension functions.
  8. High hardware configuration with a number of innovative technologies.
  9. Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
  10. 15° oblique angle screen, more in line with the human eye observation.

Details NS800

Specification

Model NS800 CIE LAB data color spectrophotometer NS800
Illumination/observation system 45/0 method (45 ring-shaped illumination, vertical viewing)
Comply with CIE No.15,GB/T 3978.
Integrating sphere Size Φ58mm
Light Source combined LED sources
Sensor Silicon photodiodearray
Wavelength range 400~700nm
Wavelength pitch 10nm
Reflectance range 0~100%
Measuring Aperture Φ8mm
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV
Color difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
v
Other Chromaticity Data WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
Metamerism Index (Mt)
Colour Stain, Color Fastness
Observer 2°/10°
Illuminant D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12
Display Data Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Measurement Time 1.5s
Repeatability Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument Agreement Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension (L*W*H)90*77*230mm
Weight 600g
Battery Li-ion battery. 5000 times within 8 hours.
Lamp Life 5 years, more than 1.6 million measurements
Display Screen TFT 3.5inch, Capacitive Touch Screen
Interface USB/RS-232
Data Memory 1000 Standards, 10000 Samples
Operating Temperature 0~40°C(32~104°F)
Storage temperature -20~50°C(-4~122°F)
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
Optional Accessory Micro Printer, Powder Test Box
Notes The specifications are subject to change without notice.





Application Industry



CIE LAB data color spectrophotometer NS800 is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS800 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.
