Aluminum Copper Brass Hunter Lab Spectrophotometer Coating Thickness Gauge YT4200-P7

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE&RoHS&TUV&FCC&ISO9001
Model Number YT4200-P7
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 work days
Payment Terms T/T,Paypal
Supply Ability 1000PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Standard ASTM B499, ASTM D1400 Measurement Range 0 ~ 1 250 μ M
Probe Type Integrated Resolution 0.1/1 μ M
Minimum Measurement Size 10X10mm Minimum Measurement Thickness Magnetic: 0.2mm
Power 2X1.5V AA Batteries Size 102x66x24mm
High Light

hunter lab spectrophotometer


color measurement instruments

Leave a Message
Product Description

ISO 2360 3nh YT4200-P5 caoting painting cheap guage detect non-conductive coatings

Brief Introduction:

YT4200-P7 is a domestic coating thickness gauge manufactured by 3nh. It can quickly and accurately detect non-conductive coatings on non-magnetic metal substrates. The instrument fully complies with the eddy current test principle specified by ISO 2360,GB/T 4957. ASTM B1400 and other standards. The instrument is stable, accurate and powerful, and is widely used in the manufacturing industry, metal processing industry, chemical industry and other surface engineering detection fields. It is the basic equipment of coating surface process industry.

The NFe-based probe detects the thickness of all insulating coatings on non-magnetic metal substrates (such as aluminum, copper, brass, stainless steel, etc.), such as paint coatings, dusting coatings, and ceramic coatings.


a. It can quickly and accurately test the thickness of insulation coating on various non-magnetic metal substrates (eddy current method).

b. One-handed design, in line with the structural design of human mechanics.

c. One-key test, convenient and fast.

d. The instrument can be accurately calibrated by single point calibration and multi-point calibration.

e. Low power consumption, more power saving, low power will alarm.

f. With backlit display, buzzer prompts.

g. High wear-resistant probe, no less than 800,000 measurements.

h. Multiple measurement modes: single point measurement, continuous measurement.


Matrix NFe
Measurement accuracy

zero calibration: ± (3% H + 1) μm

Two point calibration: ± (1 ~ 3% H + 1.5) μ m;

note: H is the sample thickness

Measurement range 0 ~ 1 250 μ m
Minimum curvature convex radius 5mm; concave radius 10mm
Minimum measurement size 10X10mm
Minimum measurement thickness non-magnetic: 0.05mm
Optional accessories calibration test piece (12μm, 25μm)
Power 2X1.5V AA batteries (AA alkaline or Ni-MH rechargeable batteries)
Probe type Integrated
Product Name Split aluminum-based coating thickness gauge
Resolution 0.1/1 μ M
Size 102x66x24mm

ASTM b499, ASTM d1400,

ISO 2178, ISO 2360, ISO 2808,

GB / T 4956 / 4957 JB / T 8393

Standard accessories 1 base (aluminum base), wrist strap, calibration test piece
Storage temperature - 10 ~ 50 ° C
Unit μ M
Weight 99g (including battery)
Working temperature 0 ~ 40 ° C (10-90% RH without condensation)

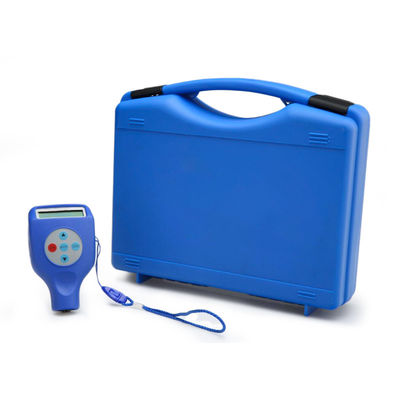

Aluminum Copper Brass Hunter Lab Spectrophotometer Coating Thickness Gauge YT4200-P7 0
