Color Formulation Software D/8 3nh Spectrophotometer 8mm 4mm Apertures For Paint
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Optical Geometry||D/8°||SCE/SCI||SCE & SCI|
|UV Light Source||Yes||Repeatibility||ΔE*≤0.02|
|Inter-instrument Agreement||ΔE*≤0.15||Measuring Aperture||8mm & 4mm|
hunter lab spectrophotometer,
color measurement instruments

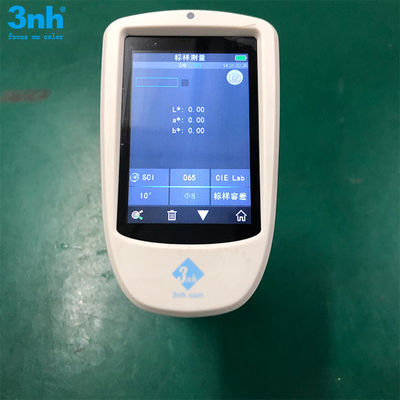

Color formulation software D/8 spectrophotometer for paint 3NH TS7700 with both 8mm and 4mm apertures
Ts7x series is a grating spectrophotometer that 3nh company has spent 3 years to design and is developed by 3nh independent intellectual property rights. The instrument adopts 1000 line precision blazed grating as the spectroscopic element, the silicon photocell array with large photosensitive area as the detector, the full spectrum led with high life as the light source, and the optical resolution is less than 10nm in the visible light range.
Under the condition of d/8 geometric optical illumination recommended by CIE, TS7700 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer TS7700, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system.
Spectrophotometer TS7700 is also widely used in the color quality control of various products. TS7700 is equipped with high-end color management software, which is connected to the computer to realize more function expansion. The instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical treatment, cosmetics and food industries, as well as scientific research institutions and laboratories etc.
1. D / 8 geometric optical structure, conforming to CIE No.15, GB / T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033 teil7;
2. Adopt combined LED light source with high life and low power consumption, including UV / excluding UV;
3. Switch 8mm & 4mm aperture( the flat/ tip measuring aperture can be switched easily, which is suitable for more tested sample)
4. Dual optical path system, the optical resolution in the visible range is less than 10nm, which can measure the SCI and SCE spectrum of the sample at the same time;
5. Accurate spectrum and lab data, used for color matching and accurate color transmission;
6. High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, 1000 line blazed grating, silicon photocell array detector with large photosensitive area, etc;
7. USB / Bluetooth dual communication mode, wider adaptability;
8. Super dirt resistant and stable standard white calibration board;
9. Large capacity storage space, which can store more than 30000 pieces of test data
10.2/10 standard observer's angle, multiple light source modes, multiple surface color systems, meet various standards of chromaticity indicators, and the needs of various customers for color measurement;
11. Camera locating position and Stabilizer cross measurement position;
12. PC software has powerful function expansion;
|Optical Geometry||Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)|
|SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source|
|Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7|
|Characteristic||double apertures for accurate color analysis and transmission in laboratory|
|It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.|
|Integrating Sphere Size||Φ40mm|
|Light Source||Combined full spectrum LED light source, UV light source|
|Spectrophotometric Mode||Flat Grating|
|Senso||Silicon photodiode array (double row 40 groups)|
|Measured Reflectance Range||0-200%|
|Color Space||CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)|
|Color Difference Formula||ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)|
|Other Colorimetric Index||WI(ASTM E313,CIE/ISO,AATCC,Hunter),|
|YI(ASTM D1925,ASTM 313),|
|Metamerism Index MI,|
|Staining Fastness, Color Fastness, Color Strength, Opacity,|
|8° Glossiness,555 tone classification|
|Displayed Data||Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset|
|Measuring Time||About 1.5s (Measure SCI & SCE about 3.2s)|
|Repeatability||Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)|
|Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)|
|Inter-instrument Error||MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
|Measurement Mode||Single Measurement, Average Measurement(2-99times)|
|Locating Method||Camera Locating,stabilizer cross position|
|Battery||Li-ion battery, 6000 measurements within 8 hours|
|Illuminant Life Span||5 years, more than 3 million times measurements|
|Displayed Data||3.5-inch TFT color LCD, Capacitive Touch Screen|
|Data Port||USB, Bluetooth 4.2|
|Data Storage||Standard 1000 Pcs, Sample 30000 Pcs|
|Language||Simplified Chinese, English, traditional Chinese|
|Operating Environment||0~40℃, 0~85%RH (no condensing), Altitude < 2000m|
|Storage Environment||-20~50℃, 0~85%RH (no condensing)|
|Standard Accessory||Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture|
|Optional Accessory||Micro Printer, Powder Test Box|
|Notes||The specifications are subject to change without notice.|
YS3060 spectrophotometer is color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the color of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.
1. Which models are the equivalent models to TS7700?
Answer: MINOLTA CM-700d, CM-600d are the equivalent models to 3nh TS7700.
2. Is 3nh a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters.
3. Where is your main market.
Answer: We sell to the global market.
4. Is the package strong enough to make the instrument shipped safely to customers?
Answer: Yes, of course. The instrument is packed in a firm alluminum box filled with foam.
5. Can you support OEM service?
Answer: Yes, we support OEM and ODM service.
6. How long is the warranty?
Answer: We support 1 year warranty and life-span maintenance.
7. When can you ship the goods after payment?
Answer: We have all goods in stock, and general we ship the goods within 2 working days after payment.
8. What are your main products?
Answer: We mainly produce colorimeter, spectrophotometer, gloss meter, and color light box, and iso test chart.
