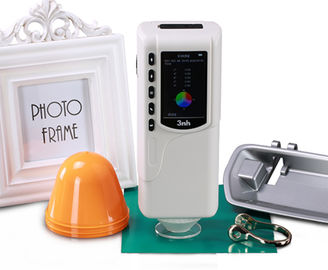

D/8 NR60CP Chroma Double Locating CIE 10° Handheld Color Meter

Place of Origin Shenzhen, China
Brand Name 3nh
Certification CE,RoHs,ISO,etc
Model Number NR60CP
Minimum Order Quantity 1pc
Packaging Details Standard Export Package
Delivery Time 2 works days
Payment Terms T/T,Paypal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Color Difference Meter Illuminating/Viewing Geometry 8-degree/d
Sensor Silicon Photodiode Array Measuring Aperture 8mm Flat Aperture,4mm Tip Aperture
Color Space CIE LAB,XYZ,LCH,CIE RGB, CIELUV Observer CIE 10-degree
High Light

Double Locating Handheld Color Meter

,

NR60CP Chroma Handheld Color Meter

,

CIE 10° Paint Color Analyzer

Leave a Message
Product Description

Shenzhen ThreeNH Cheap D/8 NR60CP Chroma Meter Color Reader Colorimeter with Software


Brief Introduction:


NR60CP is a model of colorimeter with powerful functions, high accuracy and competitive price, which has integrated the advantages of the similar products of the famous international brands. It also goes with our own innovative technology and patents, like illumination locating and cross locating, built-in white plate parameters, two standard measuring apertures 8mm and 4mm.

It is configured with multiple light source types, multiple color space systems and color difference formulas, all of which have endowed NR60CP with powerful functions to meet the requests of all kinds of color measurements.



Features :

  1. 8mm and 4mm double aperture for switch, easy to measure concave sample in large plane
  2. More stable and accuracy, Delta E ab<0.03
  3. Many color spaces, many color indexes, extensive applicability
  4. Double locating: illuminating locating and cross locating
  5. Equipped with rechargeable high-capacity li-ion battery
  6. Built-in white plate parameters, and configuration of physical whiteboard, easy to operate;
  7. New integrating sphere optical path design, more stable to measure;
  8. Double apertures measurement data can pass SCM metrological certification;

Specification :



Name&Model
Colorimeter NR60CP
Illuminating/Viewing Geometry
8°/D (8° illumination, diffuse Viewing)
CIE NO. 15, GB/T 3978
Observer
CIE 10° Standard Observer
Measuring Aperture
Φ8mm & 4mm
Repetitive Error
Standard Deviation within ΔE*ab=0.03
(Calculating Method: Average value of the results of 30 measurements of the standard white plate)
Inter-Instrument Error
Within ΔE*ab=0.2
Color Space
CIE LAB, XYZ, RGB, LCh, CIE LUV
Color Difference Formula
ΔE*ab, ΔE(h), ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v
Measurement Time
1.5s
Light Source Type
D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
Light Source Device
LED Blue Light Excitation
Light Source Life
5 years, more than 1.6 million measurements
Sensor
Silicon Photoelectric Diode Array
Data Storage
100 Standards, 20000 Samples
Data Port
USB & RS232
Standard Accessory
AC Adapter, Li-ion Battery, Operation Manual, Software CD, USB Cable, White Calibration Cover, Φ8mm and Φ4mm Measuring Aperture
Optional Accessory
Mini-printer, Powder Test Box



Application Industry:

NR60CP colorimeter is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It not only can precisely measure many kind of color indexes in many color spaces, but also it is easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

D/8 NR60CP Chroma Double Locating CIE 10° Handheld Color Meter 0

Company Details:

D/8 NR60CP Chroma Double Locating CIE 10° Handheld Color Meter 1

Contact Information:



Contact Person: Clara Liu;

Email: L001@3nh.com;

Wechat & Whatsapp ID: +8613510310267;

Skype: clara.3nh



Related Knowledge about Spectrophotometer:



Color Space

CIE LAB
- L(Lightness)-0 is black,100 is white
- a(Red-Green)-positive values are red; negative values are green and 0 is neutral
- b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
