Pantone Software YS3010 Grating Colour Measurement Equipment SCE SCI
Product Details
| Optical Geometry: | D/8° | SCE/SCI: | SCE & SCI |
|---|---|---|---|
| Other Colorimetric Index: | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, | Repeatibility: | ΔE*≤0.03 |
| Color Space: | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB | Measuring Aperture: | Φ8mm |
| Highlight |
YS3010 Grating Colour Measurement Equipment,Pantone Software Colour Measurement Equipment,SCE SCI Multi Angle Spectrophotometer |
||
Product Description
Silk brand portable spectrophotometer ys3010
YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.
YS3060 UV Grating Spectrophotometer
Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.
YS3020 Grating Spectrophotometer
Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.
YS3010 Grating Spectrophotometer
4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.
Product Application:
Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
|
SPECIFICATIONS FOR YS3060 & YS3020 & YS3010 Spectrophotometer
|
|||
|
Model Items
|
YS3060
|
YS3020
|
YS3010
|
|
Optical Geometry
|
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
|
||
|
Integrating Sphere Size
|
48mm
|
||
|
Light Source
|
Combined LED Light, UV Light
|
Combined LED Light
|
|
|
Spectrophotometric Mode
|
Concave Grating
|
||
|
Sensor
|
256 Image Element Double Array CMOS Image Sensor
|
||
|
Wavelength Range
|
400-700nm
|
||
|
Wavelength Interval
|
10nm
|
||
|
Semiband Width
|
10nm
|
||
|
Measured Reflectance Range
|
10nm
|
||
|
Measured Reflectance Range
|
0-200%
|
||
|
Measuring Aperture
|
MAV : Φ8mm/Φ10mm
SAV : Φ4mm/Φ5mm |
Customized Aperture: 8mm/4mm/1×3mm
|
Single Aperture: MAV : Φ8mm/Φ10mm
|
|
Specular Component
|
SCI&SCE
|
||
|
Color Space
|
CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
|
||
|
Color Difference Formula
|
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
|
||
|
Other Colorimetric Index
|
WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness |
||
|
Observer Angle
|
2°/10°
|
||
|
Illuminant
|
D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
|
D65, A, C, D50, D55, D75, F2, F7, F11
|
D65, A, C, D50
|
|
Display Data
|
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
|
||
|
Measuring Time
|
2.6s
|
||
|
Repeatability
|
MAV/SCI: ΔE*≤0.03
|
MAV/SCI: ΔE*≤0.05
|
MAV/SCI: ΔE*≤0.06
|
|
Inter-instrument Error
|
MAV/SCI: ΔE*≤0.15
|
MAV/SCI: ΔE*≤0.2
|
MAV/SCI: ΔE*≤0.4
|
|
Measurement Mode
|
Single Measurement, Average Measurement
|
||
|
Locating Method
|
Camera View Finder Locating
|
||
|
Battery
|
Li-ion battery. 5000 measurements within 8 hours
|
||
|
Dimension
|
L*W*H=184*77*105mm
|
||
|
Weight
|
600g
|
||
|
Illuminant Life Span
|
5 years, more than 3 million times measurements
|
||
|
Display
|

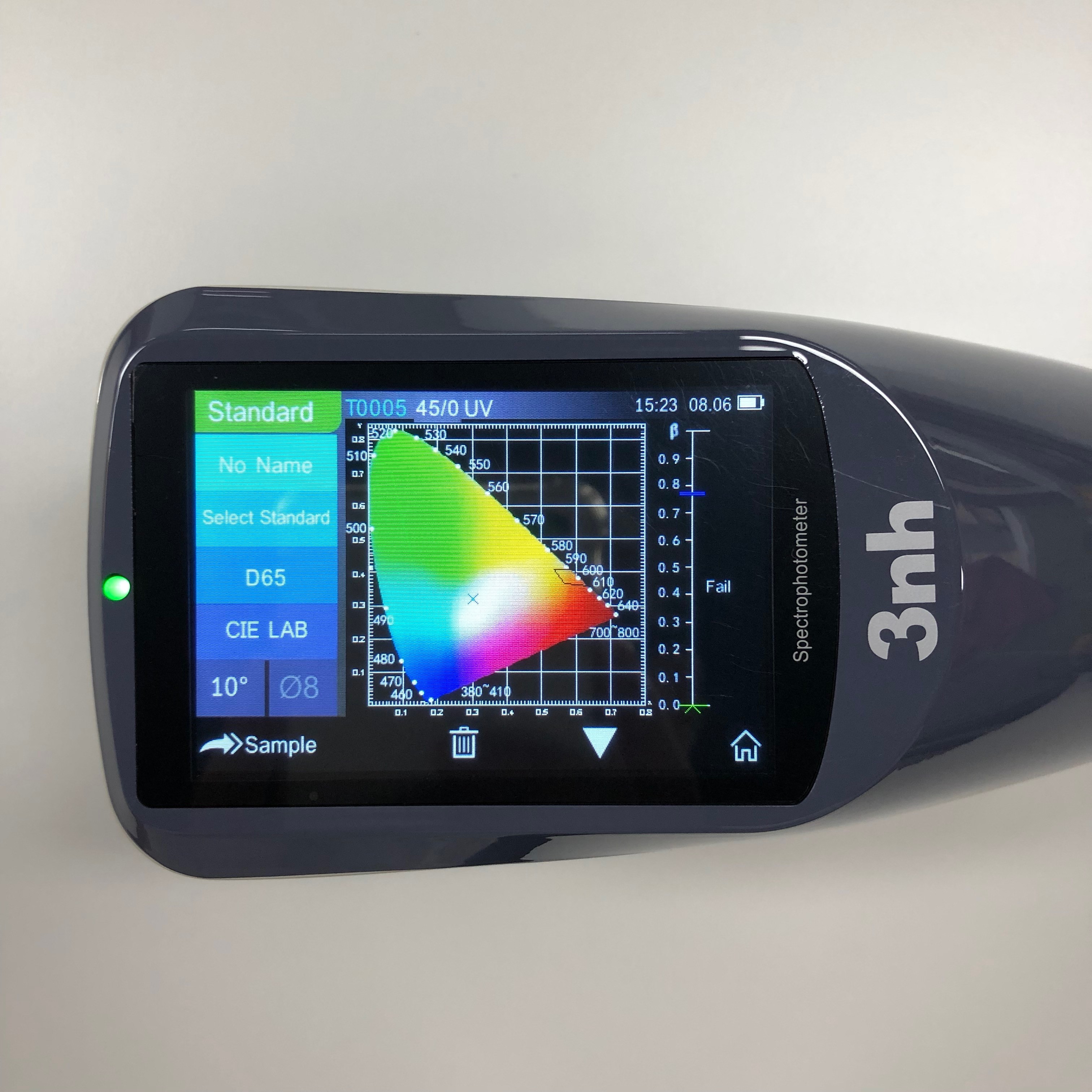

3.5-inch TFT color LCD, Capacitive Touch Screen
|
||
|
Data Port
|
USB, Bluetooth 4.0
|
USB
|
|
|
Data Storage
|
Standard 2000 Pcs, Sample 20000 Pcs
|
||
|
Language
|
English, Chinese
|
||
|
Operating Environment
|
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
|
||
|
Storage Environment
|
-20~50℃, 0~85%RH (no condensing)
|
||
|
Standard Accessory
|

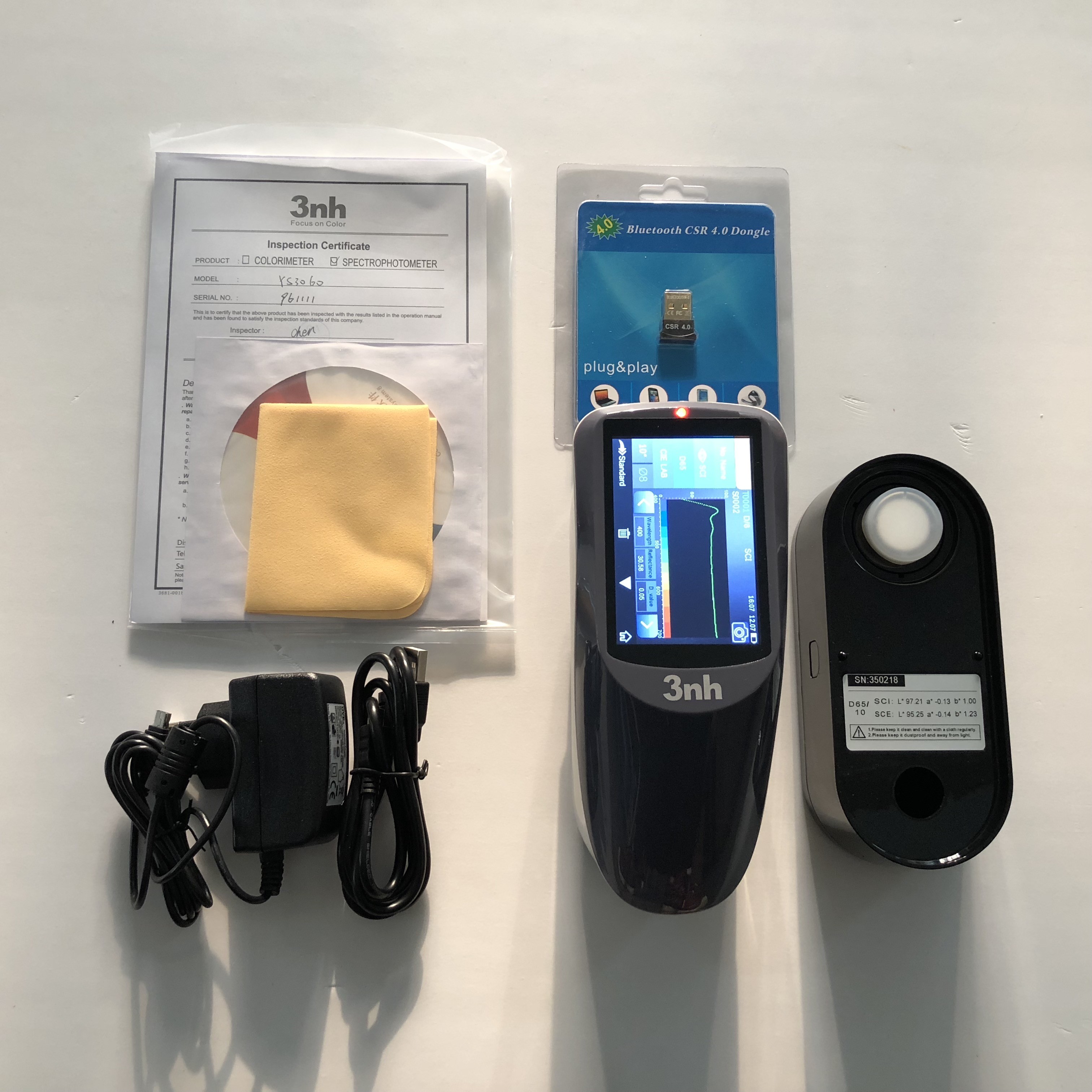

Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
|
||
|
Optional Accessory
|
Micro Printer, Powder Test Box
|
||
|
Notes: The specifications are subject to change without notice.
|
|||
A.Perfect combination of beautiful appearance and the human body mechanics structural design;
B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
C.Use long life and low power consumption combined LED light source, including UV/excluding UV;
D.Switchable Φ8/4mm aperture, adapt to more samples; support both SCI and SCE at the same time;
E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
G.USB/Bluetooth 2.1, dual mode, widely useful;
H.Super stain-resistant and stable standard white calibration plate;
I.Large capacity storage space, over 20,000 measurement data;
J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;
K.Camera Locating Function, better position;
l.PC software has a powerful function extension.
Packing Details : Carton package
Delivery Details : within 2 days after payment
Payment Terms: T/T 100% In Advance
Company Details:
Contact Information:
Contact Person: Clara Liu;
Email: L001@Silk.com;
Wechat & Whatsapp ID: +8613510310267;
Skype: clara.Silk
Related Knowledge about Spectrophotometer:
Color Space
CIE LAB
- L(Lightness)-0 is black,100 is white
- a(Red-Green)-positive values are red; negative values are green and 0 is neutral
- b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral
CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle
dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
