NHG60M 1*3mm Handheld 60° Angle Gloss Measurement Instruments

NHG60M 1*3mm Handheld 60° Angle Gloss Measurement Instruments

Product Details:

Place of Origin: Shenzhen,China
Brand Name: 3nh
Certification: CE,RoHs,ISO,ASTM etc.
Model Number: NHG60M

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard Export Package
Delivery Time: 2 work days
Payment Terms: T/T,Paypal
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Model: NHG60M Measuring Angle: 60
Measuring Area: 1.5*2mm Dimesion: 160*75*90mm(L*W*H)
Interface: USD-RS-232 Software: GQC6 QC Software
Divation: ±1.5,±1.5% OEM: Yes
High Light:

1*3mm Handheld Gloss Measurement Instruments

,

NHG60M Gloss Measurement Instruments

,

GQC6 Software Paint Gloss Meter

Product Description

NHG60M 1*3mm Handheld 60° Angle Gloss Measurement Instruments

NHG60M Small Aperture 1*3mm Glossmeter Handheld Portable Luster Meter 3nh



Brief Introduction:



NHG60M single angle small aperture smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.

As the whole world's first model of glossmeter which is fully screen-touch operational and with a ultra-large display, NHG60M features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can also be manually input.



NHG60M has three measuring modes: Basic Mode, the simplest sample measurement mode; Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the settings.



Now NHG60M has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.



Features:



  • Small aperture: 1.5*2mm
  • 60° angle for semi gloss
  • Display 5 sets of measurement data, good for comparison
  • Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
  • Continuous mode to check uniformity over large areas
  • Connect to PC, more extend functions
  • Input gloss value manually
  • Large touch screen operation, easy to use
  • Beauty appearance, good man-machine communication interface
  • Powerful functions to meet many different requirements
  • Large storage to save over 5000 data
  • Built-in lithium ion rechargeable battery.



Specifications:



NHG60M Small Aperture Gloss Meter
Model NHG60M
Measure Angle 60°
Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457
Measuring Area (mm) 1.5*2
Measurement Range 0~1000GU
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-10GU 10-100GU 100-1000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation

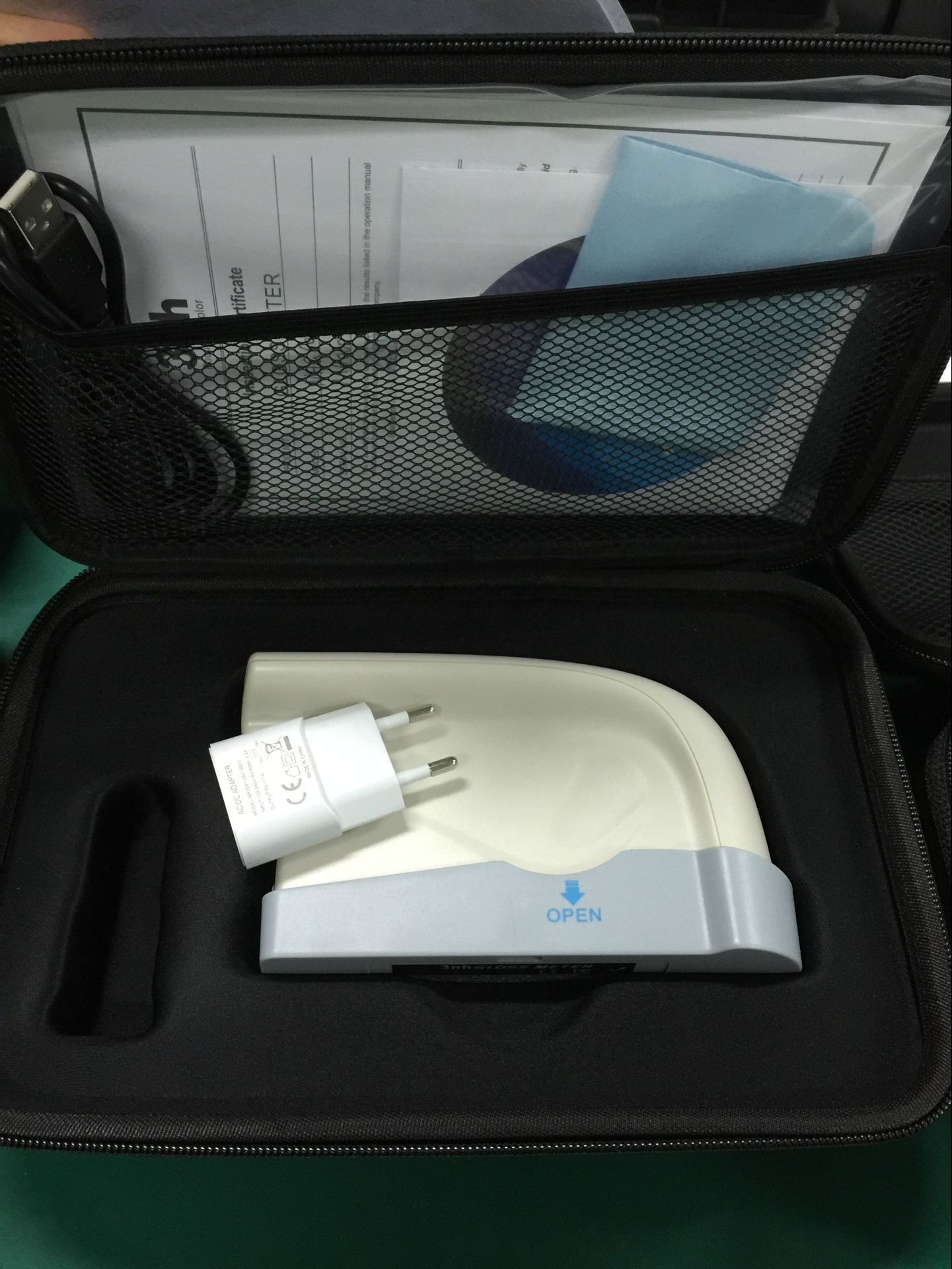

Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.




NHG60M 1*3mm Handheld 60° Angle Gloss Measurement Instruments 0



Company Details:

NHG60M 1*3mm Handheld 60° Angle Gloss Measurement Instruments 1

Contact Information:



Contact Person: Clara Liu;

Email: L001@3nh.com;

Wechat & Whatsapp ID: +8613510310267;

Skype: clara.3nh



Related Knowledge about Spectrophotometer:



Color Space

CIE LAB
- L(Lightness)-0 is black,100 is white
- a(Red-Green)-positive values are red; negative values are green and 0 is neutral
- b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
