SCE SCI 3nh YS3020 8mm Aperture Portable Spectrophotometer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Optical Geometry | D/8° | SCE/SCI | SCE & SCI |
|---|---|---|---|
| UV Light Source | Yes | Repeatibility | ΔE*≤0.05 |
| Inter-instrument Agreement | ΔE*≤0.2 | Measuring Aperture | 8mm & 4mm & 1×3mm |
| High Light | 8mm Aperture Color Difference Spectrophotometer,3nh YS3020 |
||
Product Description
Product Description
Spectrophotometer YS3020 is the latest color measuring spectrophotometer developed, manufactured and launched by 3nh. It can be configured with three measuring apertures, 8mm, 4mm and 1×3mm. The 4mm and 1×3mm apertures are for the color measurement of small targets. A built-in camera is easy to help to aim the targets to be measured. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem. YS3060 can be connected to a computer via USB cable or Bluetooth to do data management and the PC terminal software SQCX provides powerful data management functions. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
Match with Universal test components
This accessory universa ltest components is only suitable for model YS3060, YS3020, and YS3010 Spectrophtometer.
Cell: 10mm
Except standard feature samples, there are many kinds of liquid, powder, paste etc special samples, such as tomato paste, tea, or juice.
If we want to use model YS3060 spectrophotometer to measure tomato paste, what kind of accessory should we need?
It is our new UTC - universal test components for YS series spectrophotometer.
PC software SQCX
SQCX software may connect the instrument to the PC through USB cable, Bluetooth (The instrument has Bluetooth function),control the instrument to measure, to modify the settings, and to operate the instrument data. At the same time it also makes a substantial expansion of the instrument’s functions to support various color systems, illuminant, more complicated data management, color detection and report generation etc. It is an efficient assistant for color quality management.

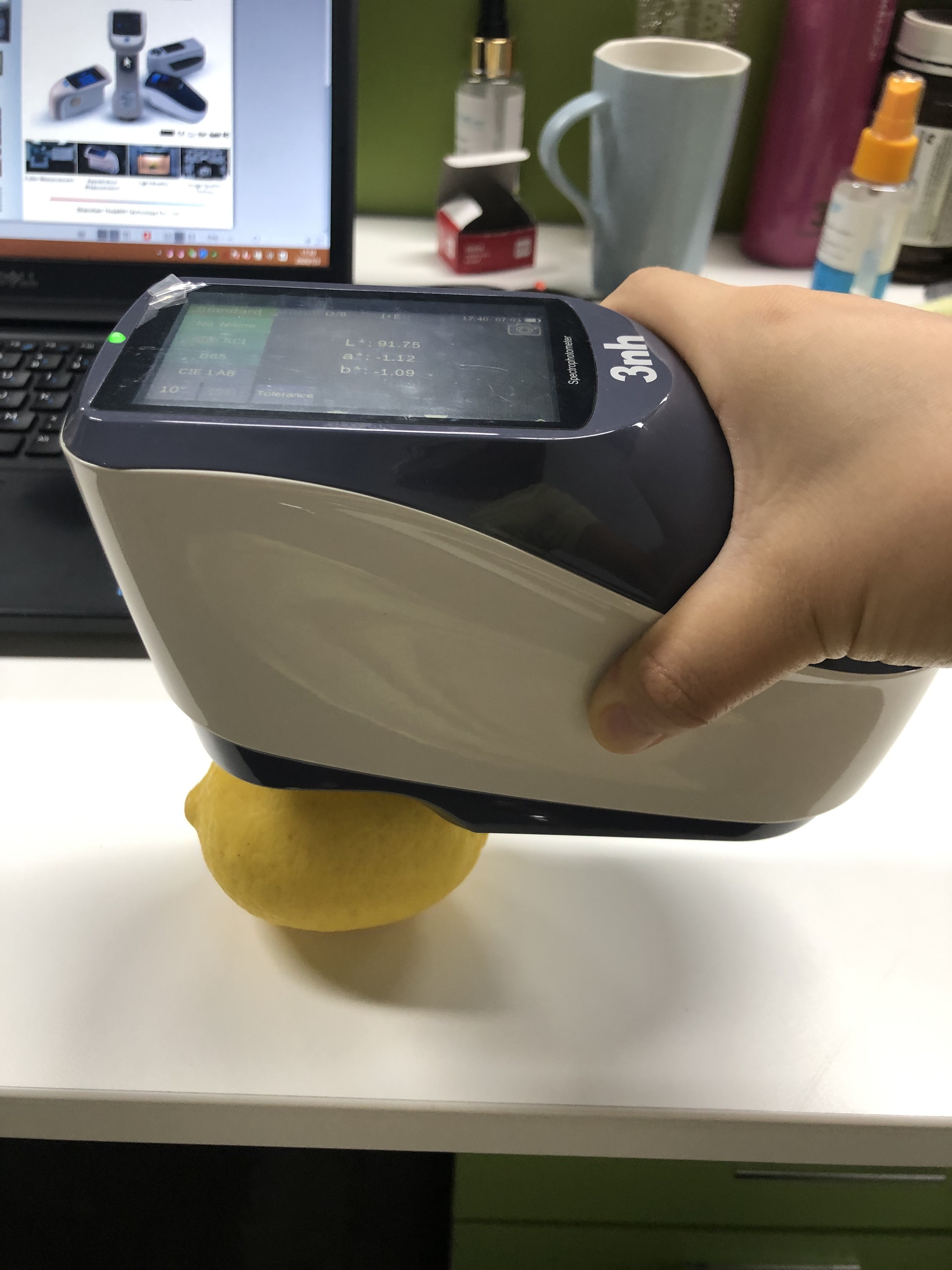

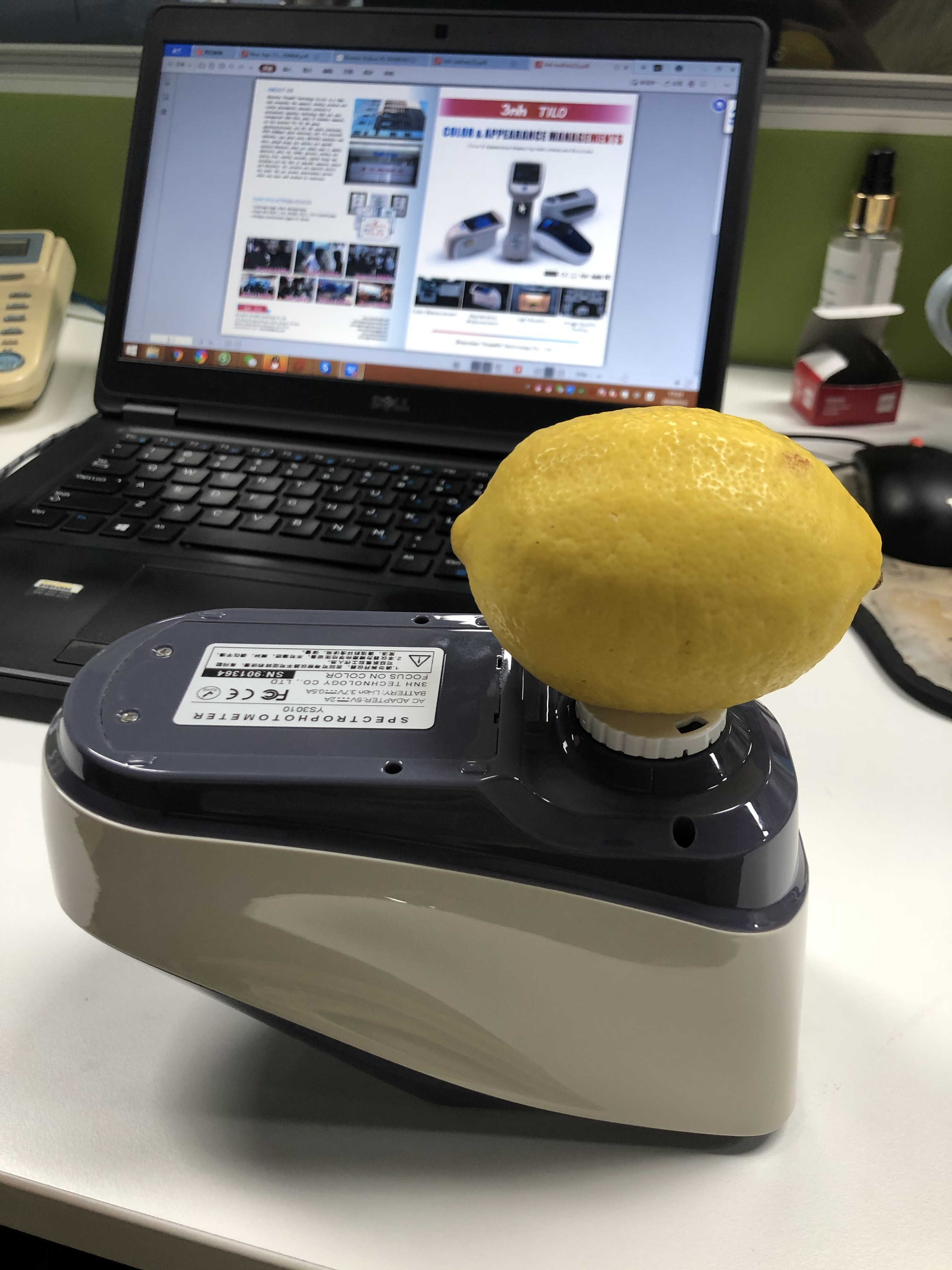

Detailed Images
3nh handheld spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Related Products
Packing&Shipping
Carton Package
Package size: 45*23*38cm
Weight : 4kg
Volume weight: 8kg
After Sales Service
Warranty
3nh provides users with high-quality and comprehensive pre-sale and after-sales services, regardless of any needs and problems for products and services, users will get the thoughtful and detailed help from 3nh customer service center. Warranty will be provided in case of the following circumstances. 3nh offers one year free maintenance service.
3nh provides users with high-quality and comprehensive pre-sale and after-sales services, regardless of any needs and problems for products and services, users will get the thoughtful and detailed help from 3nh customer service center. Warranty will be provided in case of the following circumstances. 3nh offers one year free maintenance service.
Company Introduction
3nh, Tilo and Sine image are all registered brands of the company. Shenzhen ThreeNH Technology Co., Ltd. (www.3nh.com) is a national high-tech enterprise. It is a large brand enterprise integrated by the famous trademark "3nh" and "Tilo" in the color easurement industry in terms of right time, right place, and right people. The company's source enterprise was founded in 1998.
3nh is a large-scale manufacturer of color difference meter in China. Its main products series include: TS series grating
spectrophotometer, YS series grating spectrophotometer (portable / desktop), NS series handheld spectrophotometer, NH series portable colorimeter, NR series handheld colorimeter; Tilo brand light cabinets has a large R & D, production and sales base, and its production and sales is always in the leader for a long time; Sine Image is one brand of the company to offer image test chart, test software and solutions, including the independent R & D and production high-definition iso12233 resolution test chart and other full series of test chart, standard light sources, test software and test solutions etc. Sine Image has a professional image test laboratory. And 3nh also has many domestic innovative technologies for gloss meter, with high, medium and low gloss automatic switching function. It includes large screen economic HG series, large touch screen NHG series with glossy board calibrated function, economic digital YG series.
3nh is a large-scale manufacturer of color difference meter in China. Its main products series include: TS series grating
spectrophotometer, YS series grating spectrophotometer (portable / desktop), NS series handheld spectrophotometer, NH series portable colorimeter, NR series handheld colorimeter; Tilo brand light cabinets has a large R & D, production and sales base, and its production and sales is always in the leader for a long time; Sine Image is one brand of the company to offer image test chart, test software and solutions, including the independent R & D and production high-definition iso12233 resolution test chart and other full series of test chart, standard light sources, test software and test solutions etc. Sine Image has a professional image test laboratory. And 3nh also has many domestic innovative technologies for gloss meter, with high, medium and low gloss automatic switching function. It includes large screen economic HG series, large touch screen NHG series with glossy board calibrated function, economic digital YG series.
FAQ
1. Which models are the equivalent models to YS3020?
Answer: KONICA MINOLTA CM-700d is the equivalent model to 3nh YS3020.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
Answer: KONICA MINOLTA CM-700d is the equivalent model to 3nh YS3020.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
